OS8000 Original Schmidt Hammer

R-value Concrete Test Hammer

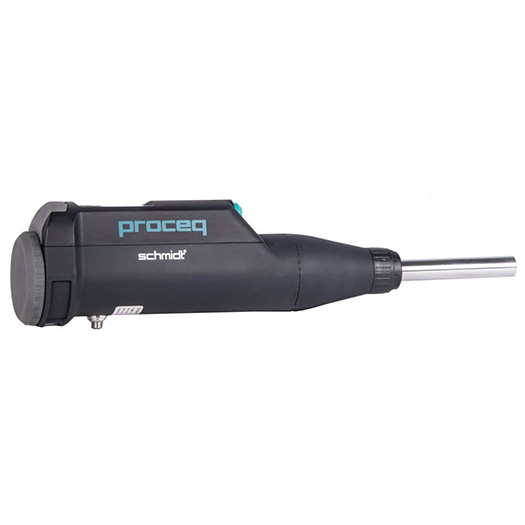

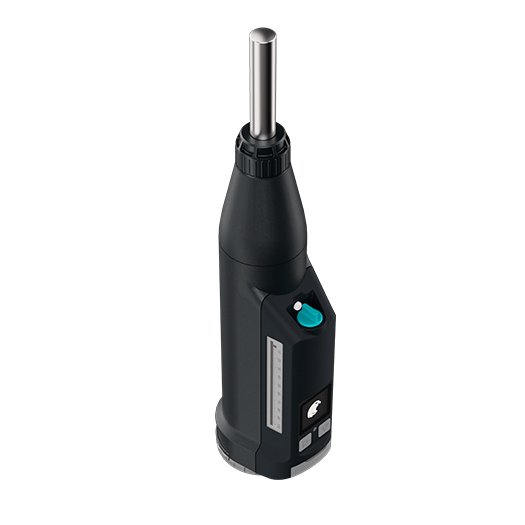

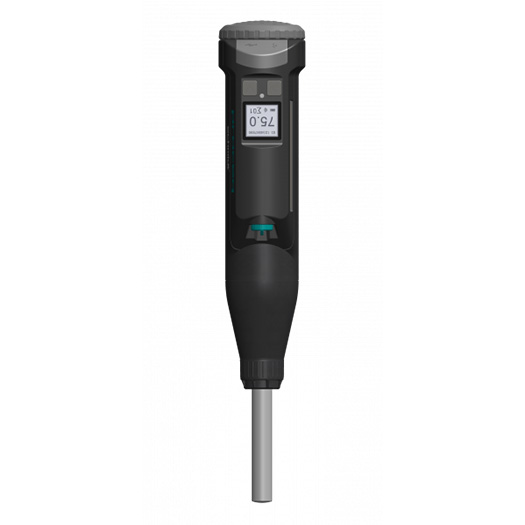

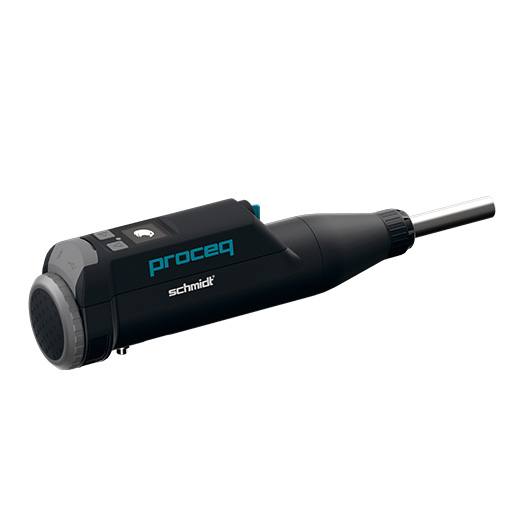

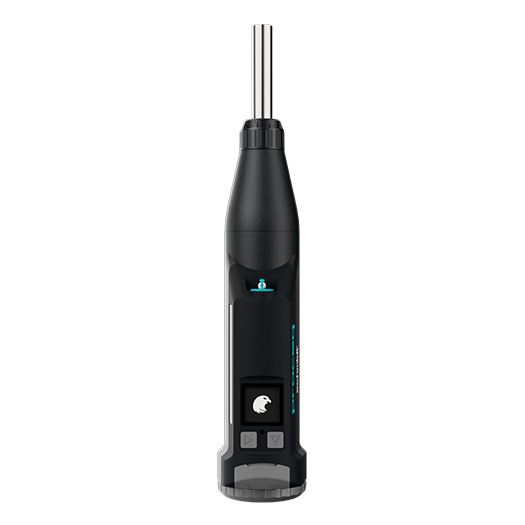

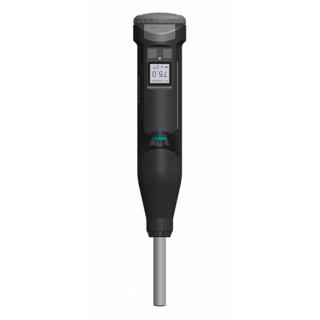

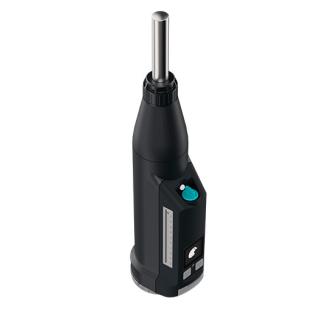

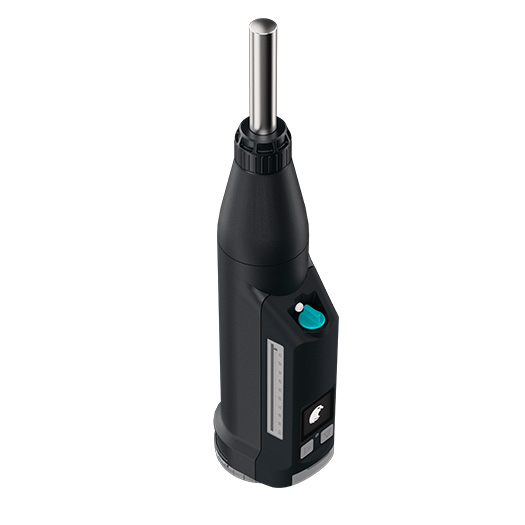

The Proceq OS8000 Original Schmidt Live Concrete test hammer is the latest iteration of the original Schmidt hammer and provides both an analog scale and digital screen OS8000 ; It is most advanced R-value concrete test hammer with unmatched performance and ease-of-use for measuring the quality of concrete judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures.

The OS8000 schmidt hammer is a cloud connected instrument which provides safe & secure storage and allows to view it instantly on the web reporting tool without any hassle.

The rebound hammer allows prepare, test and share result up to 80 percent quicker than with traditional hammers. Spend no time on manual data entry or validating and calculating results. The Original Schmidt Live and its iOS app do it for you instantly as you test. It automatically detects and corrects for impact angle and displays the series on its screen as you work. Since series are recorded and evaluated automatically, operator influence is eliminated and time spent on manual review is saved.

Prevent read-out, transcription, and human error, and avoid losing hand-written measurements, as all data is stored instantly on a safe and secure cloud. Send the report directly from the app to your customers and have your colleagues view it instantly on the web reporting tool.

Original Schmidt Hammer optionally offers digital print console by wirelessly connecting to a Bluetooth printer and directly printing out test results. Bluetooth printer available an  optional accessory.

Original Schmidt digital concrete test hammer is a practical tool in a light and strong fiber-reinforced shell. All mechanical components are Original Schmidt components to ensure compatibility with standards and give proven durability in tough conditions.

The Proceq Rebound Hammer has multiple applications and is the most recommended hammer for concrete and paper industries and in geology work.

• Concrete: strength estimations, formwork removal and to complement core testing.

• Paper: roll profiling in mills and converter plants.

• Geology: strength testing, ageing, weathering (field and lab).





Specifications
Product Specification

Impact Energy Type N

2.207 Nm (1.63 ft lbf)

Impact Energy Type L

0.735 Nm (0.54 ft lbf)

Housing Dimensions

61 x 84 x 275 mm / 2.4 x 3.3 x 10.8 in

Weight (N-hammer)

1090 g / 2.4 lb

Weight (L-hammer)

850 g / 1.9 lb

Memory

2,000 measurement series

Displays

Analog & backlit digital (100 x 100 pixels, graphic)

Charger Connection

Micro-USB

Battery

Standard AAA, alkaline or rechargeable

IP Classification

IP54

Ordering Code

Description

34010000

OS8000 Original Schmidt Live N

34010001

OS8000 Original Schmidt Live print N

34020000

OS8000 Original Schmidt Live L

34020001

OS8000 Original Schmidt Live  Print L

Note:

Print version includes including Bluetooth Printer, Registration Paper Rolls (3x)

Optional Accessory

34001301

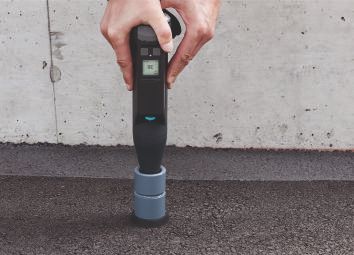

Portable Testing Anvil OS8000 N/L Complete applicable for Original Schmidt Live Hammer

34089001

Original Schmidt Live premium calibration certificate

Features
Features
  • Allows you to test compressive strength of concrete in accordance with standards.
  • All data is automatically recorded from the app to a web-based reporting tool.
  • Manual data entry not required.
  • Export reports in PDF or CSV.
  • A Logbook feature summarises all activity, records GPS locations and lets you add notes, images and audio
  • comments.
  • Hammer verification management tools keep hammer calibrated.
  • Impact results can be heard live in audio on Apple iOS devices via text-to-speech.
  • Select units, form factor and correlation curves.
  • Create your own custom curve as required by standards.
  • Automatic data backup.


FAQ
FAQ
Frequently Asked Questions (5 answered questions)
More than 20000 Impacts.

Person name: Asian

Yes, operator can export the data in PDF or CSV format

Person name: Asian

Yes, Hammer can be connected to Bluetooth printer for direct print-out of test results.

Person name: Asian

The impact energy of type N hammer is 2.207 Nm (1.63 ft lbf)

Person name: Asian

The impact energy of type L hammer is 0.735 Nm (0.54 ft lbf)

Person name: Asian
