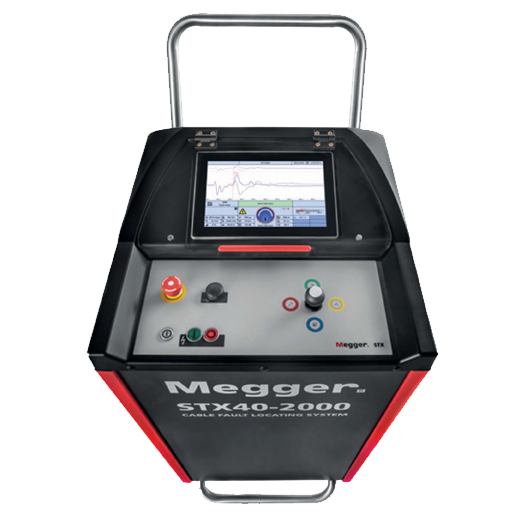

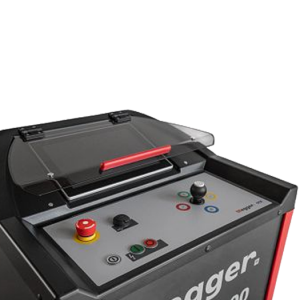

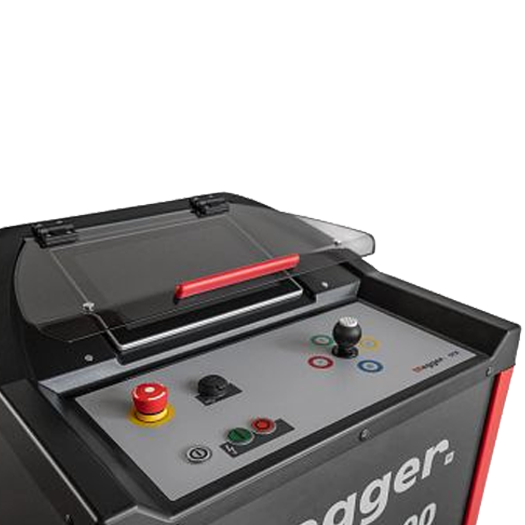

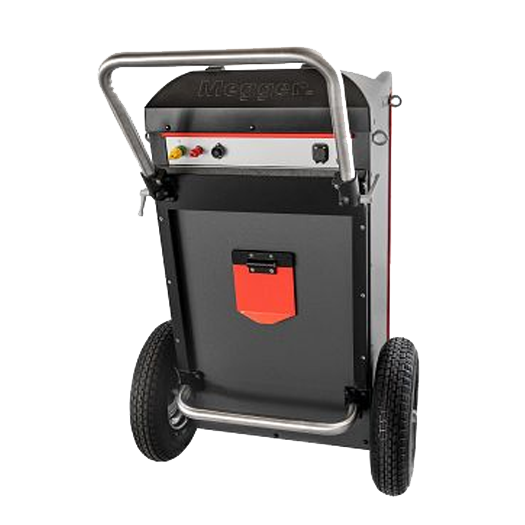

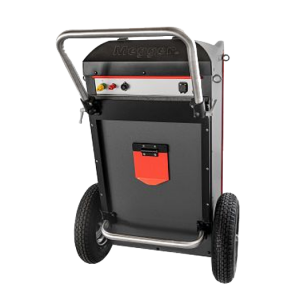

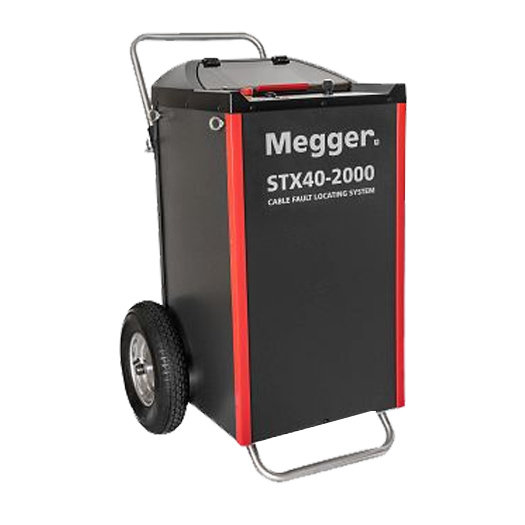

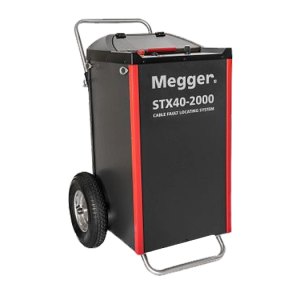

STX40 Portable Fault Location System

With its single rotatory knob or touch screen control, and fully automated motorised HV switches the STX 40 is the most convenient and most powerful portable fault location unit in the market. It is ideally suited for all essential fault locating tasks, namely analysing, prelocating and pinpointing of faults on low voltage and medium voltage XLPE or EPR insulated cables. With its 40 kV DC source and a potent high frequency burner it is also highly effective on PILC cables

Key Features:

  • Outdoor unit with exceptional all-terrain mobility: Lightweight, rainproof, optimised center of gravity, large pneumatic tires, adjustable handlebar, IP 43 rating, 119 kg (262 lbs)
  • Bright, sunlight readable 10.1” color display
  • Automatic operating mode selection and execution via software-controlled HV motor switches
  • To identify different types of faults: Insulation test up to 20 kV and 650 MΩ
  • DC test (DC hipot) up to 40 kV, with automatic voltage breakdown detection and ramp function
  • Built-in and functionally integrated Radar/TDR as well as ARM, ICE and DECAY prelocation methods
  • Surging (Thumping) at 8/16/32 kV with 2,000 J Optionally available: additional 4 kV stage with 1,100 J
  • High frequency burn mode with up to 40 kV DC and up to 850 mA, for improved fault conversion performance over conventional burn-down units with burn transformer
