HMP LFG 4 Light Drop Weight Tester

  • Product Description
  • Specifications
  • Features
  • Video

The HMP LFG 4 light drop weight tester also referred to as Light weight deflectometer or LWD  is a portable  dynamic impulse plate load tester based on accelerometer sensor used  for determining the soil bearing capacity and compaction quality of soils and non-cohesive sub-bases.

Conforming to the latest ASTM E2835 standards and the  German Technical Test Standard For  Soil and Rock In Road & Railway Construction TP BF-STB Part B 8.3/issue  2003, the HMP LFG 4  provides  measurements that have direct correlation to static load test (DIN18134, BS1377, ASTM D1194/1195/1196) & Procter test (Dpr)*.

Suitable for coarse-grain  and mixed grain soils having a maximum grain size of 63mm and can be used to  determine the dynamic modulus of deformation of soil (resilience) in the  range Evd = 15...70MN/m .

The LFG 4 allows measurement on multiple layers of soil, unbound sub-base  and sub-grade during formation works or  before overlay and pavement. Deflections may be either correlated  directly to pavement or used to determine in-situ material characteristics of  the pavement foundation layers. Provided with Thermal Printer & Software for data analysis.

Loading Mechanism :
Total Weight  15.0 kg
Drop Weight  10.0 kg
Max. impact force  7.07 kN
Duration of impact  17.0 ± 1.5 ms
Material  zinc coated/hard-chrome plated steel
Load Plate :
Diameter  300 mm
Plate thickness  20 mm
Total weight  15 kg
Material  zinc coated steel
Electronic Settlement Measuring  Instrument :
Power supply  4 X R6 batteries
Dimensions  210 mm X 80 mm X 25 mm
Settlement measuring range  0.1 to 2.0 mm ± 0.02 mm
Measuring range Evd  E ≤ 225 MN/m² vd
Temperature range  0 to 40°C
Storage capacity of measured data 200 series
Menu navigation  Selectable
Language  9 languages selectable

HMP LFG 4- Light Weight Drop Tester  including PC software, in compliance with ASTM E2835-11 consisting of:

  • Loading mechanism with bubble level.

  • Load plate with acceleration transducers.

  • Drop weight 10 Kgs.

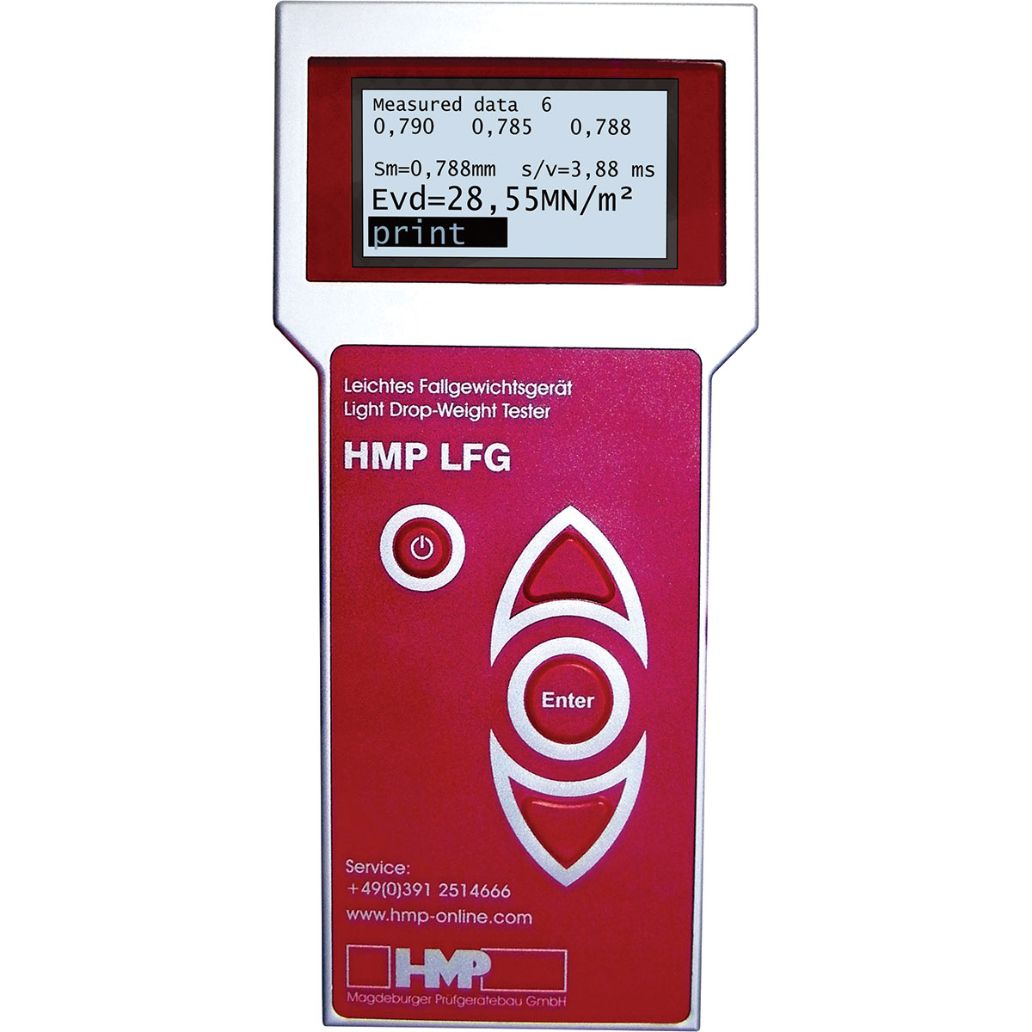

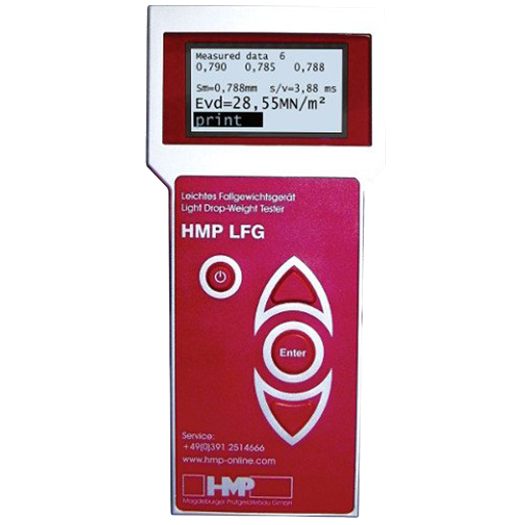

  • Electronic settlement measuring instrument with measuring range Evd <225 MN/m², 4 line display LCD screen, displaying settlement data, settlement speed (s/v relation) deformation modulus Evd & 200 series internal memory.

  • Thermal printer with 5 thermal printer rolls.

  • Storage for upto 200 test results.

  • Software for evaluation, revising & archive the measured data.

  • 2 GB USB Stick, PC connecting cable, Instruction manual.
