T-1000 Telependulum

T-1000 Telependulum

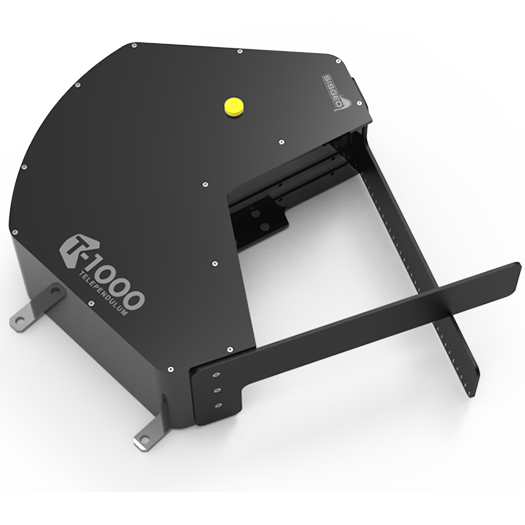

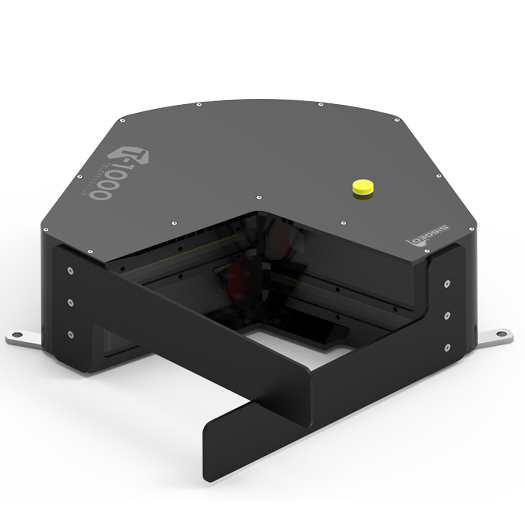

The T-1000 Telependulum is a high-accuracy instrument designed to measure the position of a plumb line, leveraging optical technology with no moving parts. This allows for a wide measuring range and exceptional precision.

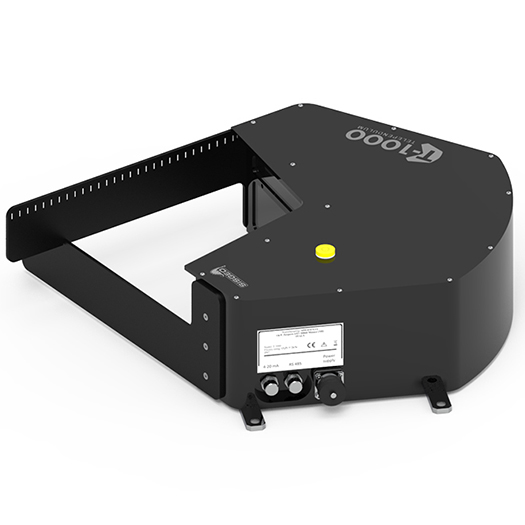

T-1000 Telependulum offers local and remote monitoring via mobile app (Bluetooth), RS485, or 4-20mA output. The device is suited for use in structures like dams, skyscrapers, nuclear power plants cooling towers, bell towers, elevator shafts and deep excavation shafts. Key features include a simple installation process, contactless measurement, and the ability to check the instrument's health via a mobile app. It is compatible with Android and includes a calibration report.

Typically, the user should select bill of materials based on deployment scenario:

1. Pendulum Sensor: The primary sensor component for detecting the position of the plumb line.
2. T-1000 mobile App: The T-1000 Telependulum can be accessed locally via a dedicated mobile app through Bluetooth for real-time monitoring.
3. Data Logging Interface: This is the interface that allows the tiltmeter to connect with compatible data loggers for data collection and monitoring.

• MIND Portable Readout: A compact, multichannel readout unit for local readings of Sisgeo instruments.
• CRD-400 READOUT: CRD-400 is a new generation multipurpose readout designed to take readings of all instruments including vibrating wire.

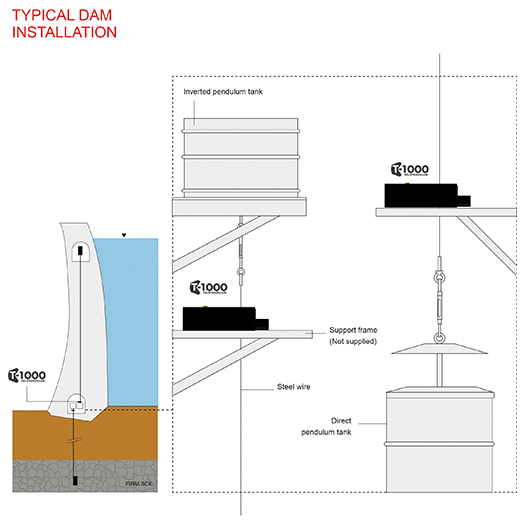

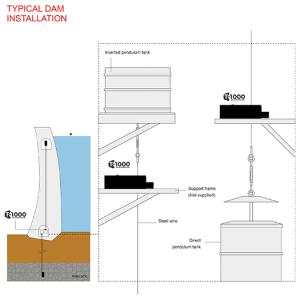

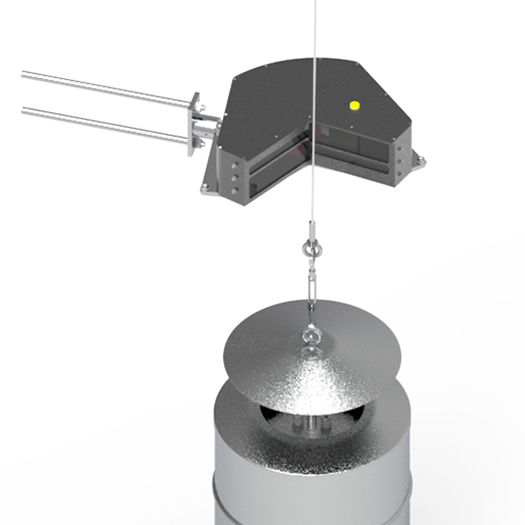

Typically used conjunction with Direct & Inverted Pendulums.

Applications of the T-1000 Telependulum

• Arch Dams
• Concrete Dams
• Skyscrapers
• Slender Structures
• Bell Towers and minarets
• Nuclear Power Plants Cooling Towers
• Elevator Shafts
