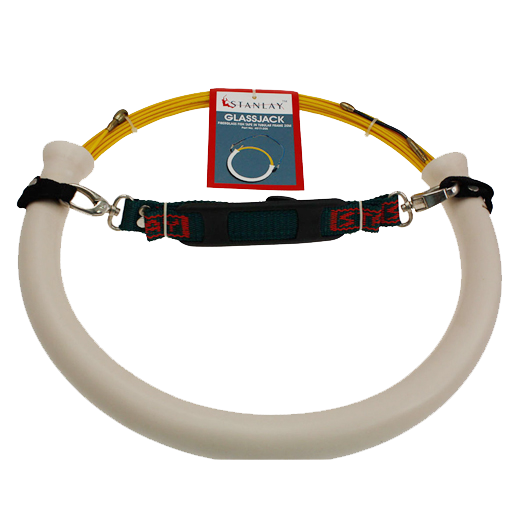

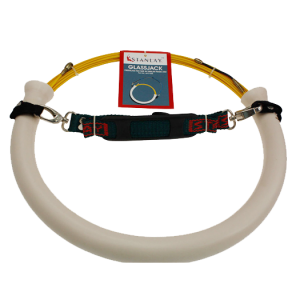

Glassjack Fish Tape

Glassjack is an economy product option based on composite fiberglass fish tape for pulling of wires in embedded PVC conduit up to 20m.

The rod does not spiral while tracking down conduits unlike steel or nylon variants providing reusability over projects and excellent returns. The fish rod being very smooth makes it easy to push and pull. Being non-conductive further provides peace of mind.

Request Quote

Features

Composite fiberglass is non conductive.
Provided in a tubular frame, with a carry on shoulder strap for ease of handling at site.
Glassjack enables easy and quick pulling of wires in conduits. The fiberglass rod, tracks in straight lines down conduits.
Composite fiberglass rod is highly resilient to bending and shearing stresses, allowing it to turn in small radiuses.
Can be used for pulling wires in false ceilings, exposed and populated conduits.
Provided with rod ends on both ends of tape; standard end fitments include 7mm flexiGUIDE and a Bullet pulling eye.
Display enabled packing with a Euro hook for stand out display.
Recommended optional : Combo Pack.

Specification

Rod dia	3mm
Dimension	13" dia tubular packing
Weight	475 g (15 m)
Casing	Impact Resistant ABS Plastic

FAQ

Do you have a question which we can answer for you? Click here if Yes

what is the dia of rod in glassjack

3mm
Is it conducive or non conductive?

it is non conductive
is it available for 30 meter

yes, it is available for 20, 30 & 40 meter based on requirement
which material is used for casing?

ABS plastic

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	89.25 KB			October 25 2019 11:36:24
User Manual	application/vnd.openxmlformats-officedocument.wordprocessingml.document	32.07 KB			May 27 2019 11:35:18

Glassjack Fish Tape

Glassjack Fish Tape

what is the dia of rod in glassjack

Is it conducive or non conductive?

is it available for 30 meter

which material is used for casing?
