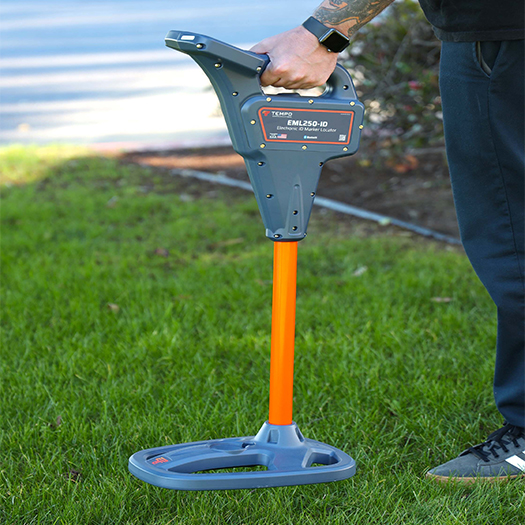

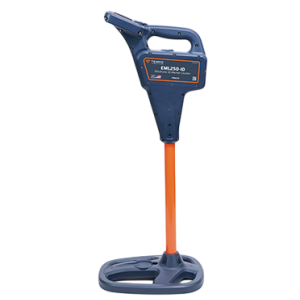

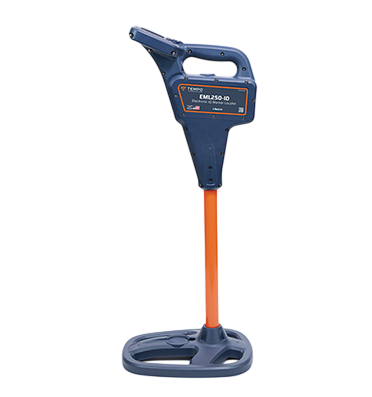

Tempo EML250-ID Electronic ID RFID Marker Locator is a professional-grade solution designed for precise identification and location of buried utilities, enabling users to read, write, and record data on RFID-enabled markers for efficient asset tracking and streamlined field operations. Equipped with an advanced QR code scanning feature, it allows users to instantly scan RFID marker codes to capture unique serial numbers and associated asset information—eliminating manual data entry, reducing errors, and significantly improving documentation speed and accuracy.

With a detection range of up to 5 feet (1.5 meters) and compatibility across nine industry-standard frequencies, the EML250-ID delivers reliable performance across diverse utility applications. Its integration with the Locator Link Mobile App and GNSS systems ensures seamless transfer of scanned and recorded data to GIS platforms or cloud-based systems, enabling real-time mapping and centralized data management.

By combining RFID technology with QR-based instant data capture, the EML250-ID streamlines the entire workflow—from scanning to recording and syncing—enhancing traceability by uniquely identifying and logging each marker. This results in faster operations, improved data reliability, and increased productivity for field teams, while supporting accurate, location-synced GIS mapping for smarter infrastructure management.

Request Quote
EML250-ID Electronic ID RFID Marker Locator
Features Specifications FAQ Downloads



Features

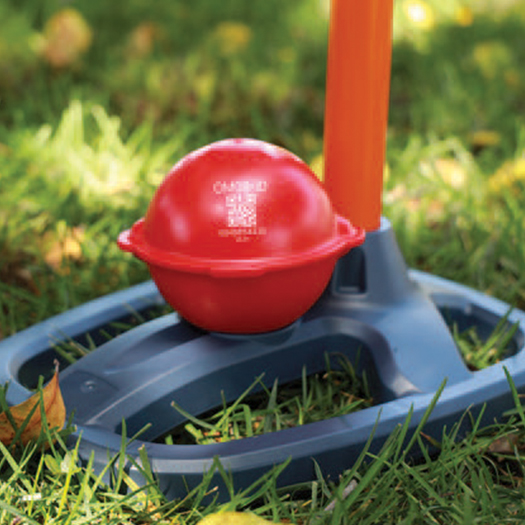

  • QR Code Scanning: Scan OmniMarker RFID QR codes to capture unique serial numbers instantly
  • Reads and writes custom identification data on RFID markers
  • Detects RFID markers from up to 5 ft (1.5 m)
  • Compatible with all 9 industry-standard marker frequencies
  • Read/write data logging for traceability
  • Locates standard passive marker balls

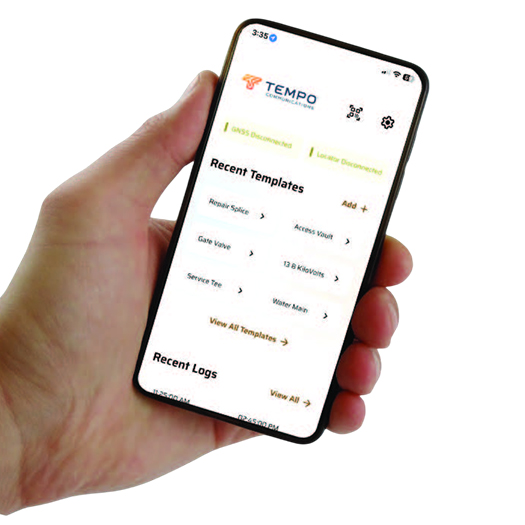

  • Integration with Locator Link Mobile App
  • Attach notes & photos to scanned data entries
  • GNSS compatibility for precise geolocation mapping

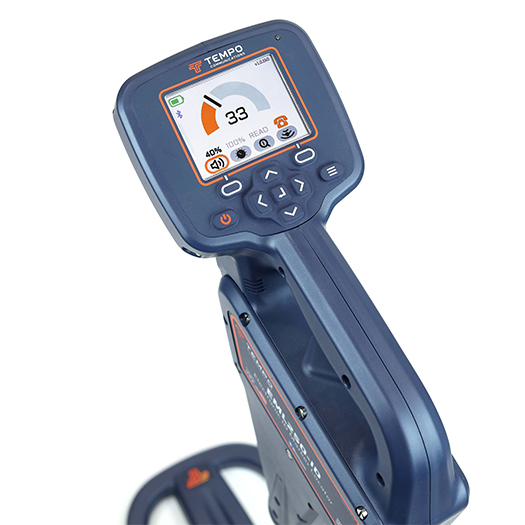

  • Color LCD display for easy operation
  • IP54 rugged construction
  • Rechargeable battery with ~8 hours runtime
Specifications

Technical Specifications

Parameter

Details

RFID Read Range

Up to 5 ft (1.5 m)

Passive Marker Detection Range

Up to 5 ft (1.5 m)

Operating Temperature

-20°C to 50°C

Storage Temperature

-40°C to 70°C

Ingress Protection

IP54

Length

12.95 in (329 mm)

Width

9.48 in (241 mm)

Height

30.55 in (776 mm)

Battery Type

Rechargeable

Battery Life

~8 hours (typical)

Weight (in Kg)

2.28 kg

Compatible Marker Frequencies

Application

Color Code

Frequency

Non-Potable Water

Purple

66.4 kHz

Cable TV

Orange / Black

77.0 kHz

Gas

Yellow

83.0 kHz

Fiber Optic

Yellow / Black

92.0 kHz

Telephone

Orange

101.4 kHz

Sanitary

Green

121.6 kHz

Europower

Blue / Red

134.0 kHz

Water

Blue

145.7 kHz

Power

Red

169.8 kHz
