BH-Profile In-Place Inclinometer
The BH-Profile IPI In-Place Inclinometer is the highest performance and most widely utilized IPI (In-Place Inclinometer) inclinometer model, with the primary purpose of Automatic & near real time monitoring of displacement at critical locations with high accuracy.

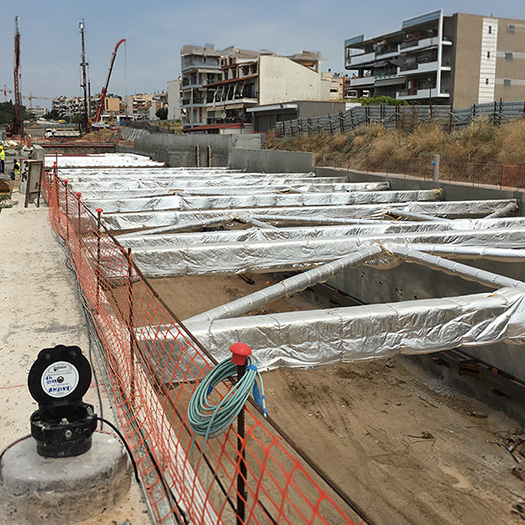

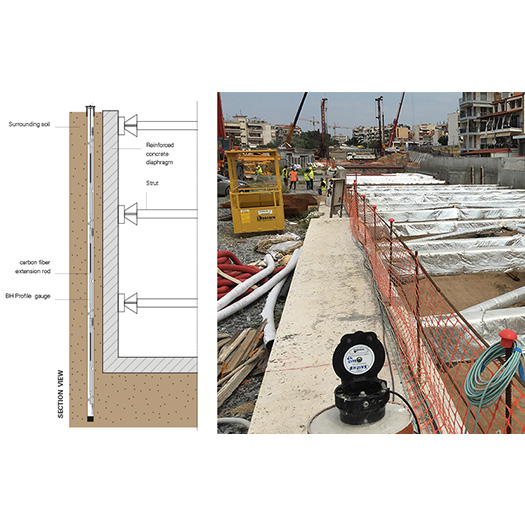

The BH profile IPI Inclinometer is ideally utilised for continuous remote monitoring of casings deformed by active soil movements typical of excavations for underground tunnelling, excavations in areas with potentially unstable slopes or ground soil, etc.

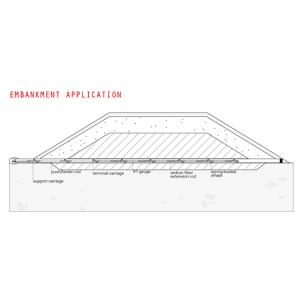

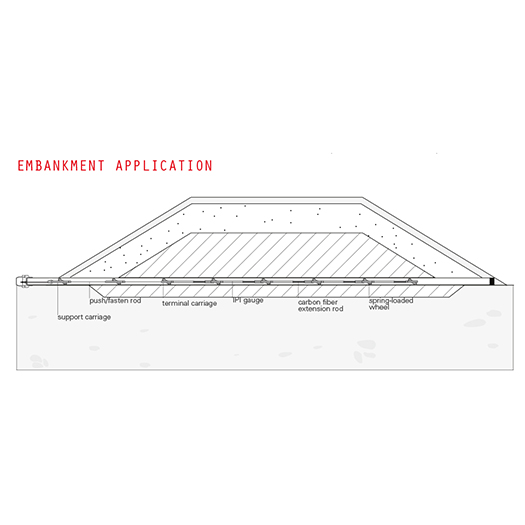

BH-Profile Inclinometer installed inside inclinometer casings are buried within trenches, foundations or horizontal drill holes for automatic monitoring of settlement or heave (upward movement of the ground due to swelling or expansion of soil) Measuring Range: ±10°, ±15°, ±20°, ±30°. Horizontal installation applications include installation in embankment for monitoring.

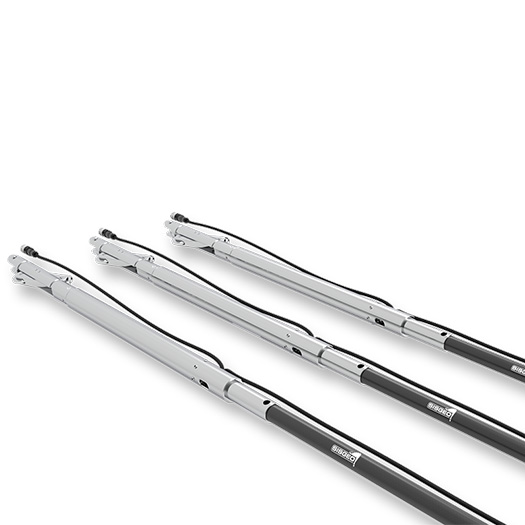

Each gauge consists of a stainless-steel body on one side for connecting carbon fibre extension rod and on the other side a stainless-steel carriage with spring-loaded wheels. Each BH profile chain is composed by a CHAIN of such gauges connected utilizing carbon fiber extensions.
The gauges are electrically linked with waterproof male/female connectors, and the string is connected to a readout or datalogger unit with single digital bus cable.
Based on its digital RS-485 signal output, they can be connected to the SISGEO OMNIAlog datalogger or WR-Log wireless system for remote data management.

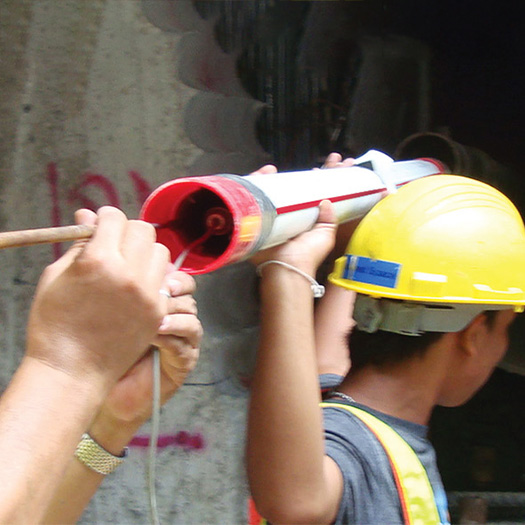

Available for vertical or horizontal applications, BH IPI inclinometers are Installed inside an inclinometer casing- Assembled in a continuous chain and then lowered inside the casing. Compliant with ISO standard 18674-3.
Typically, the user should select bill of materials based on deployment scenario:
- BH-Profile In-Place Inclinometer

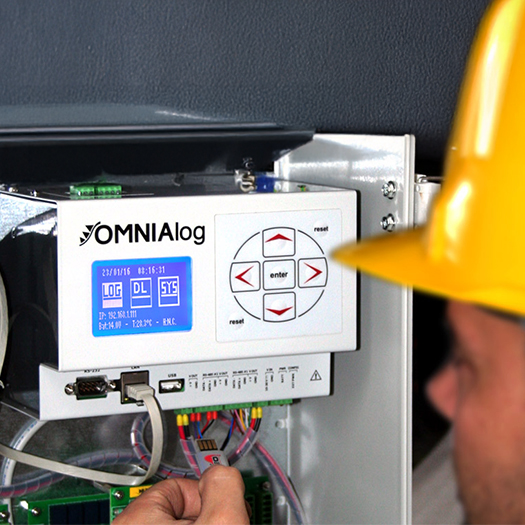

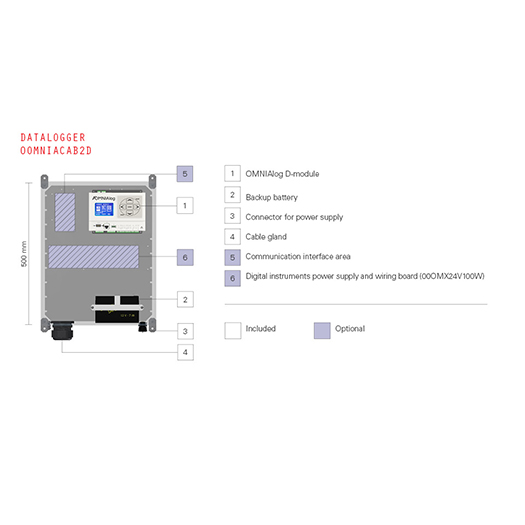

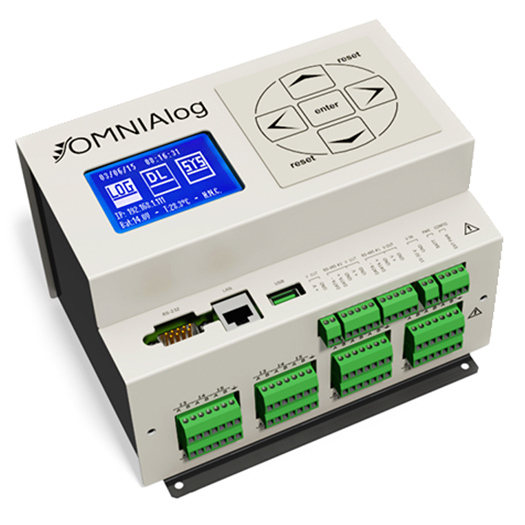

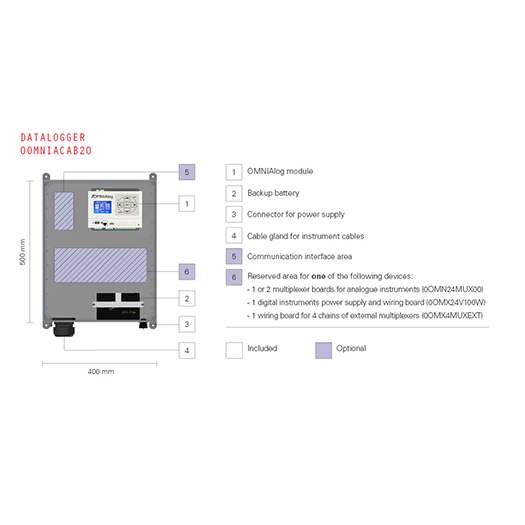

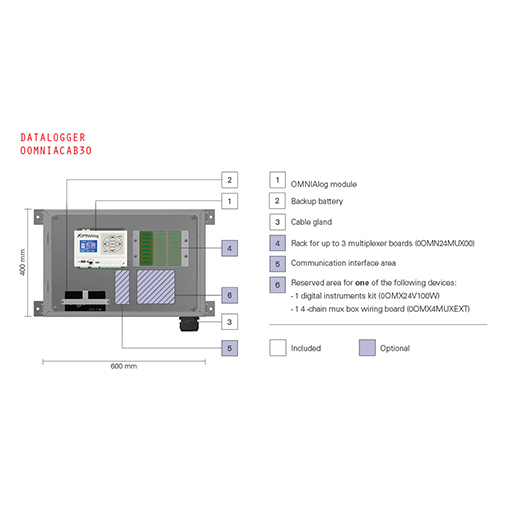

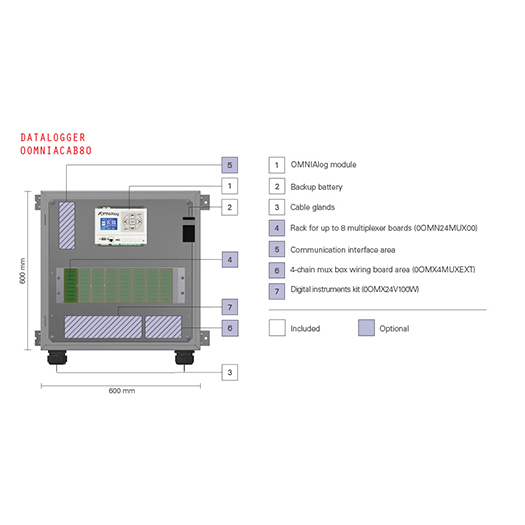

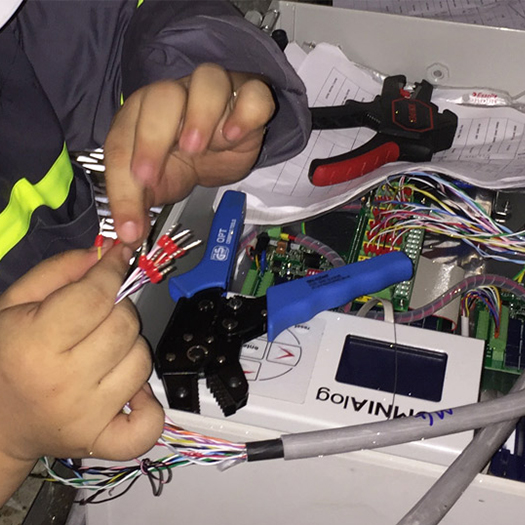

- OMNIAlog Datalogger to collect and stores data from inclinometer probes for further analysis.
- WR-Log Wireless System for remote wireless data transmission and monitoring.

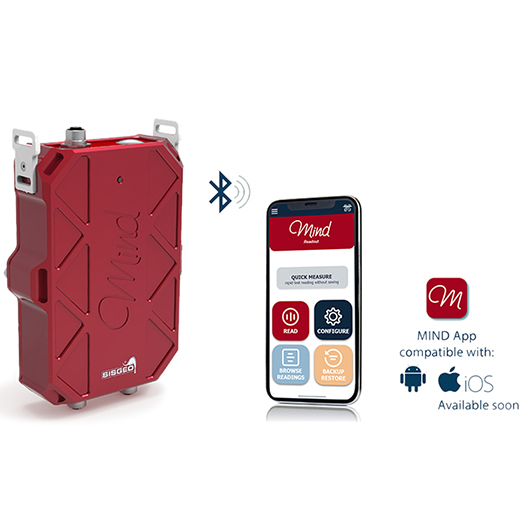

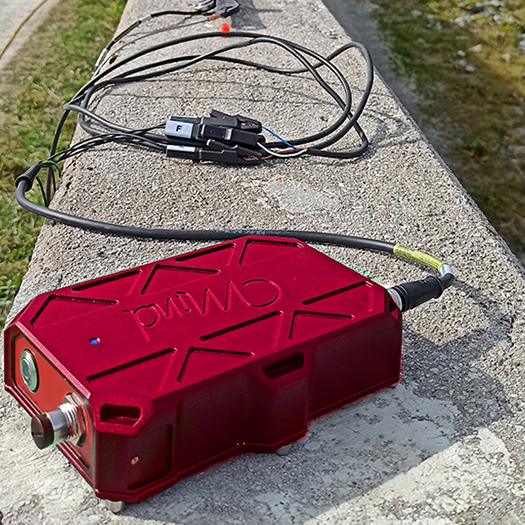

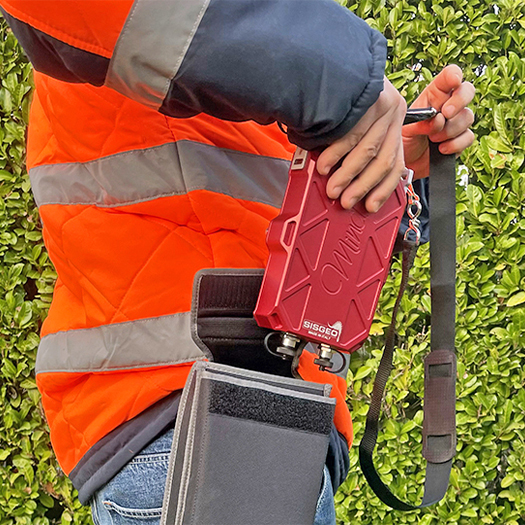

- Mind Readout is a portable and compact multichannel readout unit managed by Mind App to read all Sisgeo instruments, both analogue and digital.

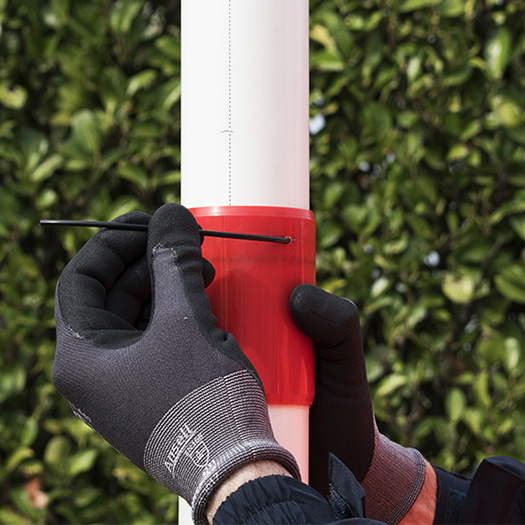

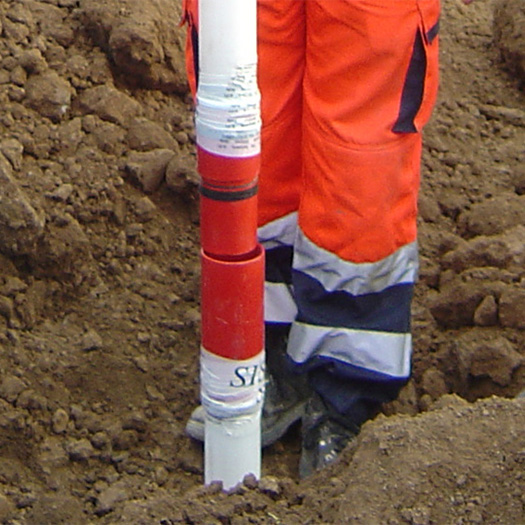

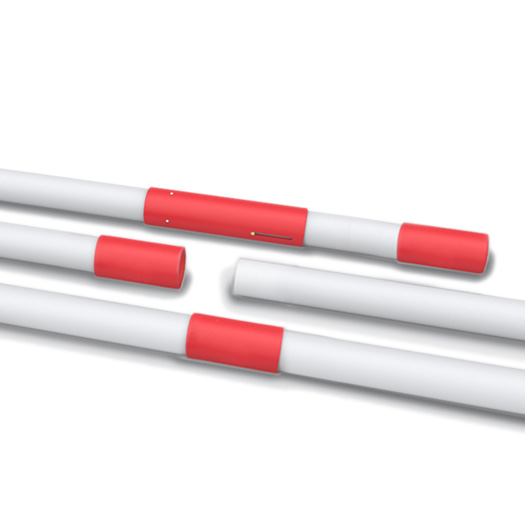

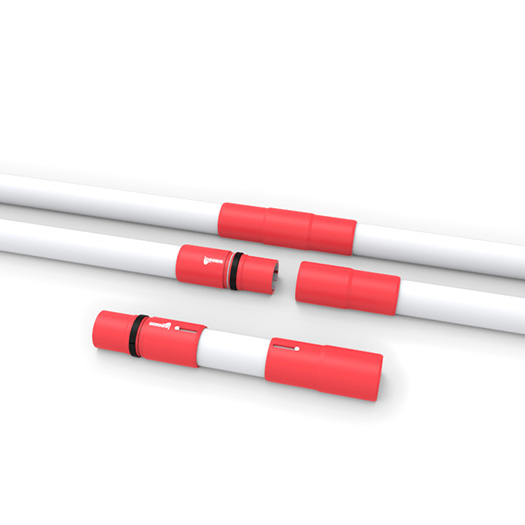

- Choose casings (Red stripe, Easy lock and Quick joint)
The BH-Profile In-Place Inclinometer is featured in association with SISGEO Italy, the world leader in Geotechnical & Structural Health Monitoring Instrumentation.

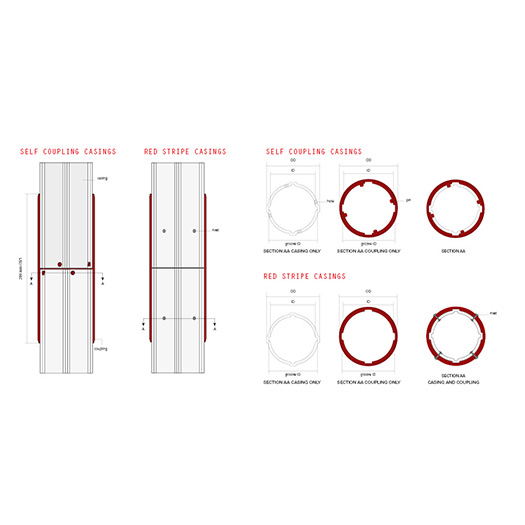

Key features of different types of casings:
| Feature |

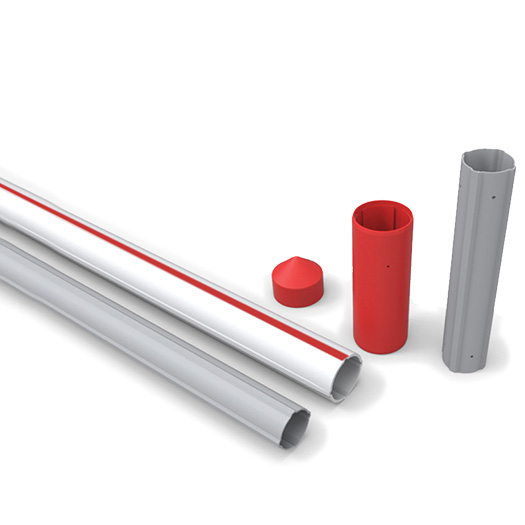

Red Stripe Casing |
Quick Joint Casing |
Easy Lock ABS Casing |
| Material |
ABS/PVC |
High-quality ABS |
ABS |
| Assembly |
Manual (rivet/tape) |
Quick with pre-fitted couplings and alignment keys |
Pre-assembled coupling, self-aligning junction |
| Waterproofing |
Requires manual sealing |
O-rings prevent ingress of grout or water |
O-rings ensure waterproof joints |
| Applications |
Basic monitoring |
Ideal for dams, embankments, deep boreholes |
Advanced monitoring (landslides, dams, tunnels) |
| Ease of Use |
Moderate (manual assembly) |
High (quick, efficient assembly) |
Very High (easy and secure assembly) |
The application areas of the BH-Profile In-Place Inclinometer include:
- Dams and Hydropower: Monitoring stability and deformation in dam structures.
- Tunnels and Excavations: Tracking ground movements and structural deformations in tunnelling projects.
- Landslides: Early detection of landslide movements for safety measures.
- Buildings: Monitoring structural health and tilting in construction projects.
- Bridges: Ensuring the stability of bridges by measuring movement and deformation.
- Railways: Monitoring the stability of railway embankments and surrounding soil.
- Mines: Tracking deformations in mining environments and surrounding structures.
- Structural Health Monitoring (SHM): Continuous monitoring of geotechnical and infrastructural stability.
