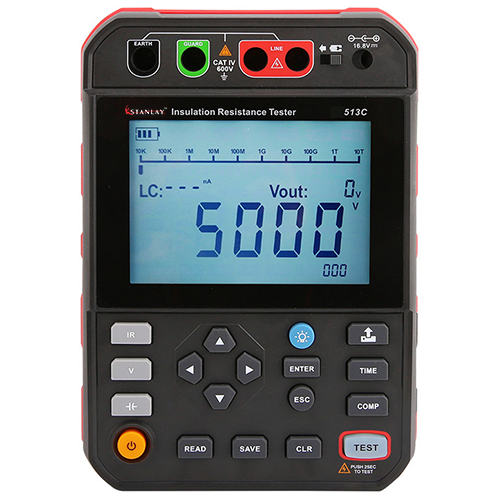

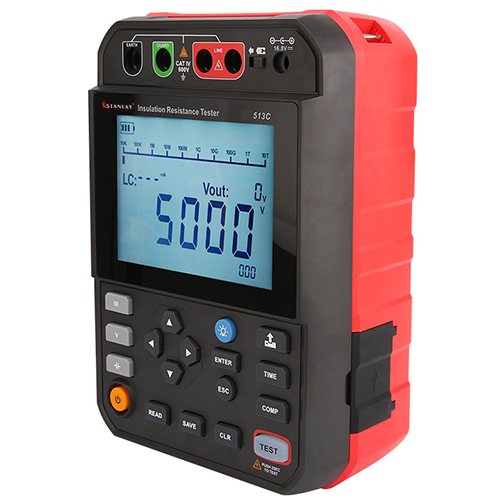

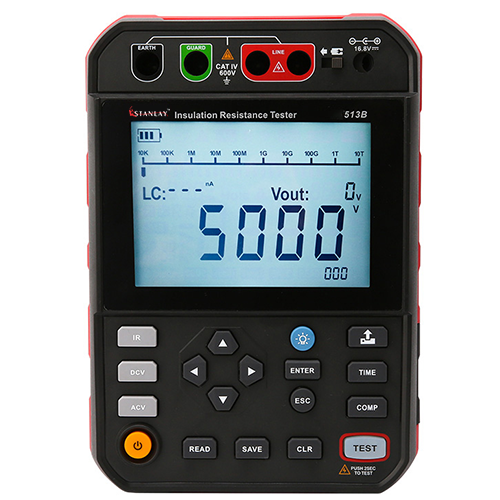

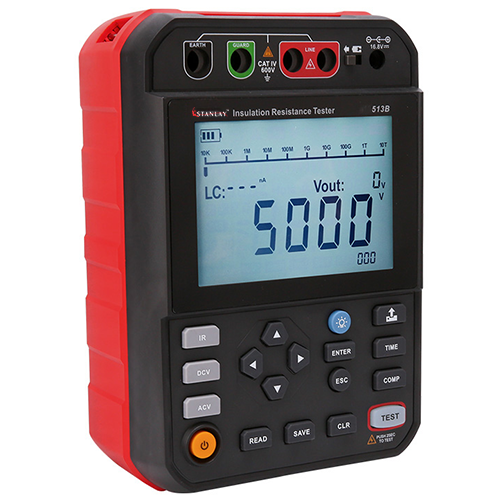

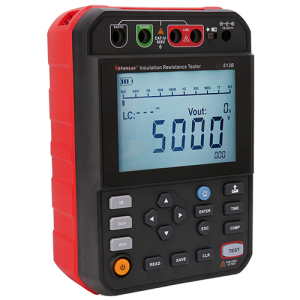

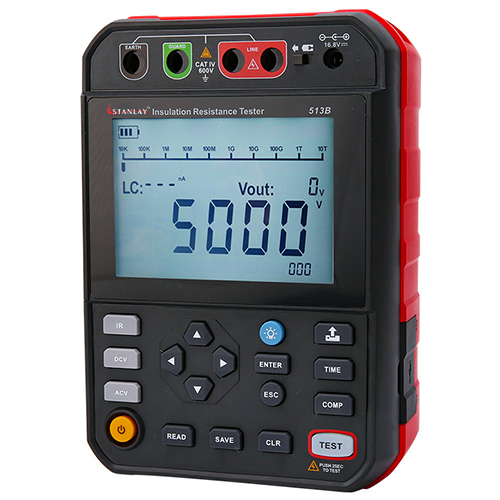

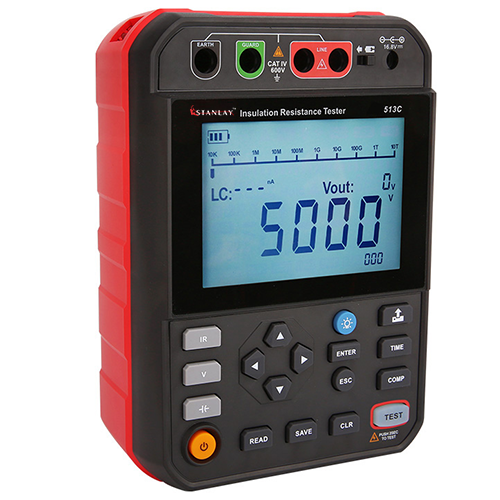

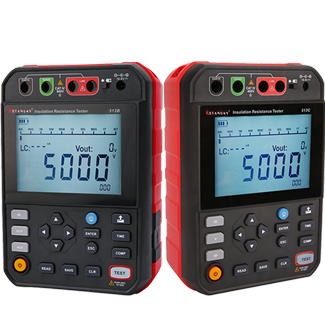

513B / 513C 5KV HV Digital Insulation Resistance Tester

Parameters

513B

513C

Measurements

Test Voltages

Range

Accuracy

Test Voltages

Range

Accuracy

Insulation Resistance (Ω)

250V

0.25MΩ~2.49GΩ

2.50GΩ~24.9GΩ

±(5%+5)

±(10%+10)

250V

0.25MΩ~4.99GΩ

5.00GΩ~49.9GΩ

±(5%+5)

±(10%+10)

500V

0.50MΩ~4.99GΩ

5.00GΩ~49.9GΩ

±(5%+5)

±(10%+10)

500V

0.50MΩ~4.99GΩ

5.00GΩ~99.9GΩ

±(5%+5)

±(10%+10)

1000V

1.00MΩ~9.99GΩ

10.0GΩ~99.9GΩ

±(5%+5)

±(5%+5)

1000V

1.00MΩ~9.99GΩ

10.0GΩ~199GΩ

±(5%+5)

±(10%+10)

2500V

2.50MΩ~24.9GΩ

25.0GΩ~249GΩ

±(5%+5)

±(15%+10)

2500V

2.50MΩ~24.9GΩ

25.0GΩ~499GΩ

±(5%+5)

±(15%+10)

5000V

5.00MΩ~49.9GΩ

50.0GΩ~499GΩ

500GΩ~2.00TΩ

±(5%+5)

±(15%+20)

(Reference only)

5000V

5.00MΩ~49.9GΩ

50.0GΩ~999GΩ

1.00TΩ~5.00TΩ

±(5%+5)

±(15%+20)
(Reference only)

Capacitance Test

N/A

0.01uF~15.0uF

Output voltage

Stepping voltage range

250V

250V, 275V, 300V

500V

250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V

1000V

500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V

2500V

1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V,3000V

5000V

2500V, 3000V, 3500V, 4000V, 4500V, 5000V

DC Voltage (V)

1000V

±(3%+5)

1000V

±(3%+5)

AC Voltage (V)

750V

±(3%+5)

750V

±(3%+5)

Current

0.01nA~3.5mA

0.01nA~5.0mA

Short-Circuit Current

>3.5mA

>5.0mA

Other Features:

Polarization Index (PI)

Yes

Yes

Dielectric Absorption Ratio (DAR)

Yes

Yes

Timing Measurement

Yes

Yes

Resistance Comparison

Yes

Yes

Voltage Step

Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range 513B + 513C: Display accuracy: ±(10% read+10V) Output accuracy: +(0%~20%)

Monitoring Function

Monitor the voltage of measured object and the discharge state after testing. If voltage is higher than 36V, it is forbidden to test for protecting the tester and the operator

Auto Detect AC/DC

No

Yes

Timer Testing

Record testing time automatically. Timer testing timing range: 0s~99m and 59s

Data Storage

999 Set

USB Interface

Yes

Yes

Bluetooth

No

Yes

Low Battery Indication

Yes

Yes

Auto Power Off

Yes

Yes

Category Safety Ratings

CAT IV 600V

Safety

EN 61010-1; EN IEC 61010-2-034; BS EN 61010-1; CE ; UKCA

General Characteristics:

Power

14.8V, 5200mAh Rechargeable Lithium-ion battery with charger

Display

5.1-inch LCD display

Product Weight

1.8kg

Product Dimensions (LWD)

238 mm x 166 mm x 90.5 mm

Standard Accessories

Test lead (red, black, green, 1 for each), USB cable, Lithium battery charger, Lithium battery pack, Carrying strap
