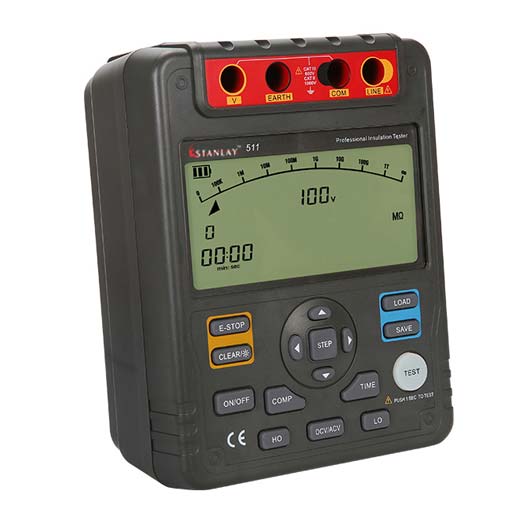

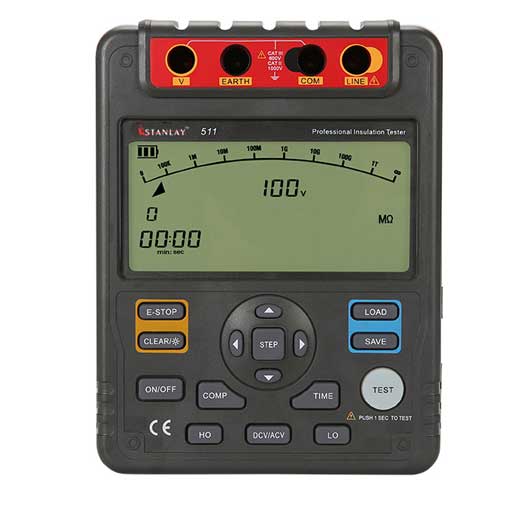

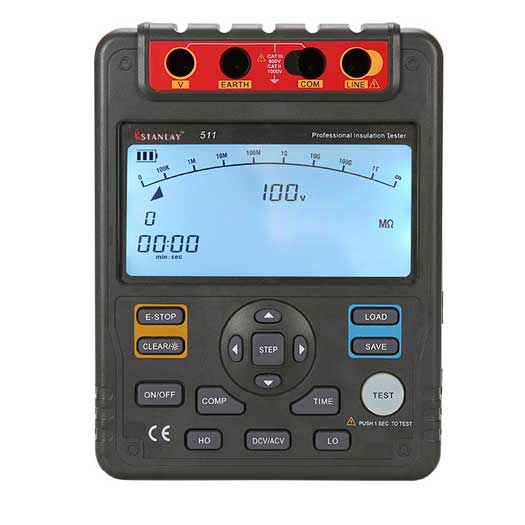

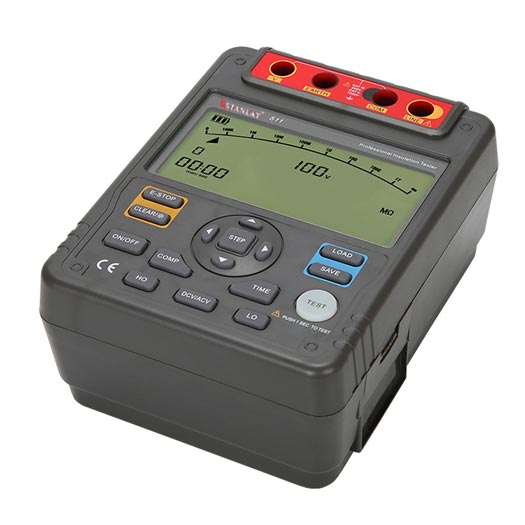

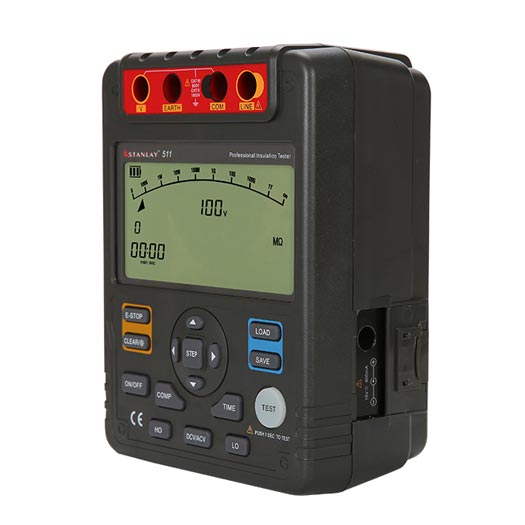

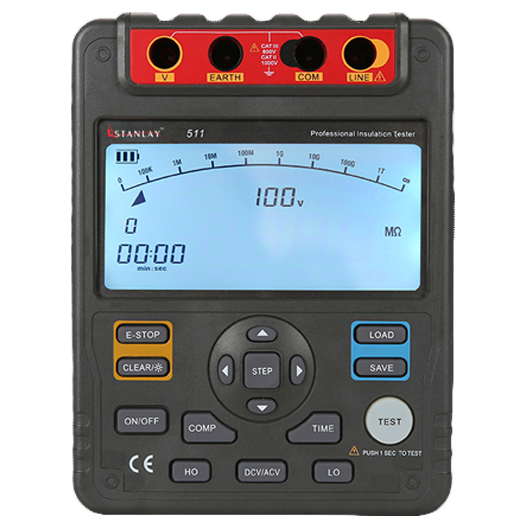

1KV LV Insulation Resistance Tester 511

Large Display Insulation Tester

511 testers can measure insulation resistance of large transformers, generators, high-voltage motors and cables. Standard measurement features include PI & DAR. Measured data can be logged & analyzed through PC software.

Specifications
Product Specification

Auto Range

Measurements

Range

Accuracy



Insulation Resistance (Ω)

Test Voltages

100V~1000V

0%~10%

100V

0.1MΩ~500MΩ

± (3%+5)

250V

0.5MΩ~2GΩ

± (3%+5)

500V

1MΩ~4GΩ

± (3%+5)

1000V

2MΩ~10GΩ

± (3%+5)

DC Voltage (V)

1000V

± (2%+3)

AC Voltage (V)

750V

± (2%+3)

Short-Circuit Current

-

<2mA

Low Resistance (Ω)

0.1Ω~999.9Ω

± (1%+3)

Other Features

Auto Power Off

Low Battery Indication

Data Storage

18 Data Sets

Comparison Measurement

Polarization Index (PI)

Dielectric Absorption Ratio (DAR)

Analog Bar Graph

LCD Backlight

Over-Range Warning

High Voltage Indication

Timing Measurement

Around 30 minutes

Category Safety Ratings

CAT II 1000V, CAT III 600V

General Characteristics

Power

1.5V Battery (LR14) x 8

Display

123mm x 58mm

Product Net Weight

1.2kg

Product Size

202mm x 155mm x 94mm

Standard Accessories

2Pcs Of One Plug Test Lead To One Alligator Clip (Black And Green), 1Pcs Of Two Plugs Test Lead To One Alligator Clip (Red), Batteries

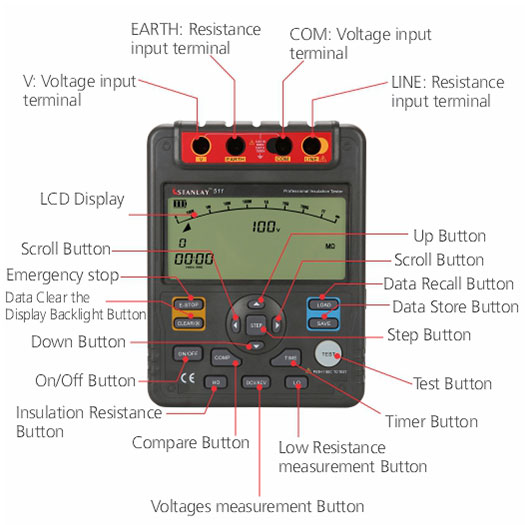

Features
Features
  • Large 9999 display with 30-segment analog bar graph
  • PI/DAR measurements, Auto power off, Backlight
  • Comparison, upper and lower limit functions
  • Continuous measurement mode, 18 Data Sets
  • Auto current discharge and high-voltage output alarm
  • Time measurement mode, auto measure within 15 minutes
  • Low battery and over range indications
