The Thermal Imaging cameras featured on the following pages provide model options of basic to advanced thermal imaging cameras for measuring temperature differences for maintenance of equipment, electrical installations, HVAC, automotive, product R&D, PCB Inspection & NDT.
Power line maintenance technicians can locate overheating joints, building engineers can see leaks in cooling or heating, steel manufacturers & treatments plants can observe furnaces, automotive applications include engines, wiring & metal treatment.
The thermal imaging infrared camera options provide multiple color palettes including white/ black/ rainbow/iron/molten metal. While the rainbow palette is the most suitable for viewing subtle differences in temperature based on thermal sensitivity, black & white palette is good for viewing image details.

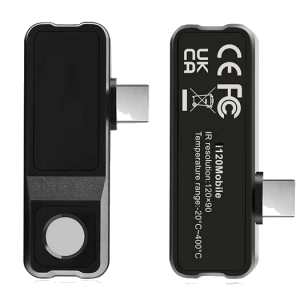

The thermal camera series also includes a tiny-sized pocket carry mobile thermal imaging camera that plugs directly into your smartphone. The mobile thermal imager is an indispensable tool for checking switchboards, Power Distribution Inspection, PCB Inspection, troubleshooting HVAC problems, or troubleshooting hidden heat sources inside and outside the house. Contact Stanlay for your Thermal Imaging Camera requirements in India.
How to choose the right infrared thermal camera for your application:
Resolution: A 256 x 192 detector produces an image composed of 49152 pixels whereas a 640 x 512 detector will provide an image of 327680 pixels. Each pixel is showing a temperature point & therefore higher pixels mean more data points- higher resolution produces visibly clearer images.
Thermal Sensitivity (NEDT): Higher the sensitivity, greater the ability to distinguish discernibly between two surface points. As an example, 0.04 allows 4/100th of a degree temperature difference measurement capability.
PIP: Fusion of Infrared Imaging & visible image providing a superimposed infrared image inside a visible-light image.
Fusion: The blending feature in an instrument provides a fusion of the Min/Max/ Average temperature in the display image on the screen.
Time Photography: In case an installation requires continuous monitoring over a period of time, model options with timed photography can be mounted on a tripod; temperatures changes can be monitored to trigger an alarm. Useful in both equipment operation analysis & research field of View.
Field of View (FOV):- FOV is a measure of the angular view path of what an infrared thermal camera sees. Stanlay offering thermographic cameras have larger field of View (FOV) than an average Thermal Imagers i.e it coverage wider viewing area.
Instantaneous Field Of View (IFOV): Instantaneous field of view or (IFOV) is an important calculation in determining how much a single detector pixel can see in terms of field of view (FOV). IFOV of the S series thermal camera scanner is extremely good at thermal imaging & helps in getting clearer output image to the observer.
Thermal Imaging Camera Selection Guide :
|
Hand Held Thermal Imaging Camera Product Matrix |
||||||
|

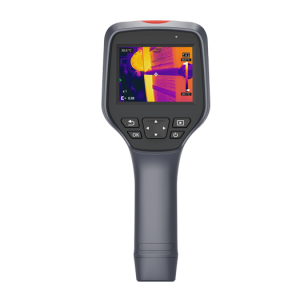

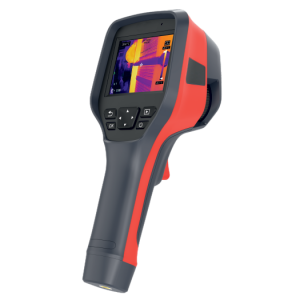

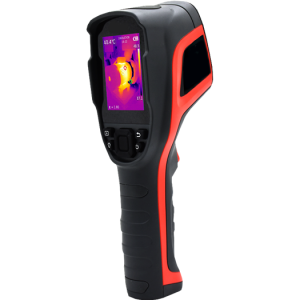

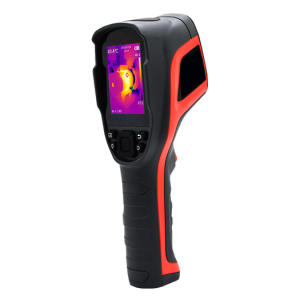

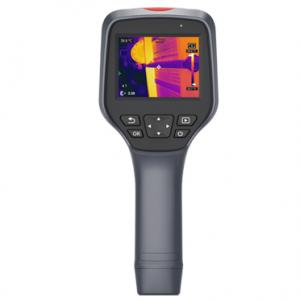

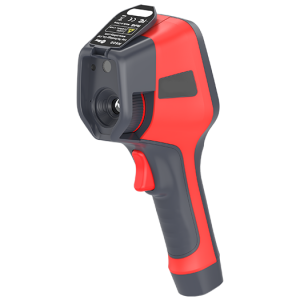

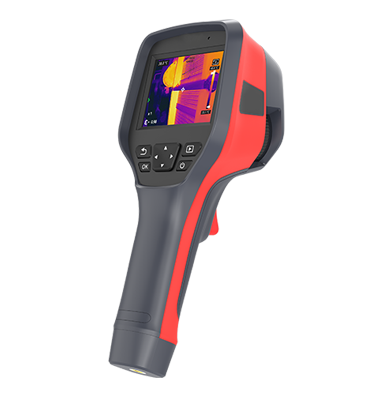

STAN ONE Part Nos |
M Series |
|||||
|
Detector Type |
Vox Uncooled infrared FPA detector |
|||||
|
Detector Resolution |
256*192 |
384*288 |
640*512 |
|||
|
IFOV (mrad) |
3.82 |
1.71 |
1.31 |
0.63 |
1.31 |
|
|
FOV (in degrees) |
56*42.2 |
24.8°×18.7° |
23°× 18° |
48*38 |
||
|
Thermal Sensitivity (NETD) |
<40mk |
<35mk |
||||
|
Thermal Sensitivity (in oC) |
0.05 |
0.04 |
0.035 |
|||
|
Frame Rate (In Hz) |
25 |
30 |
||||
|
Visible Camera (MegaPixel) |
0.3MP |
2MP |
5MP |
|||
|
Focal Length (in mm) |
3.2mm |
7mm |
19mm |
9.1mm |
||
|
Distance setting |
0.25 to 5m |
0.5 to 12 meters |
1 to 15 meters |
1 to 20 meters |
0.5 to 12m |
|
|
Temp. Range |
-20 ℃ to +550 ℃ |
-20℃ to +650℃ |
-20℃ to 550℃ |
|||
|
Accuracy |
±2% or ±2℃ |
|||||
|
Measurement |
Automatic Central Spot measurement/Hotspot and cold spot tracing |
|||||
|
Custom Point, Line, Area Measurement |
No |
✔ Movable spot/line/area temperature measurement, up to 10 spots, 10 areas,10 lines.Temperature trend can be viewed via temperature measurement line. |
||||
|
Image Modes |
Thermal imaging, Thermal fusion, PIP, visible imaging |
|||||
|
Palletes |
7 |
10 |
||||
|
Focus |
Focus-free |
Manual-Focusing |
||||
|
Digital Zoom |
X |
1x to 4x |
1x to 8x |
|||
|
Display Screen Size (inch), Resolution |
2.8"(320x240) |
3.5"(640x480) |
||||
|
Touch Screen display |
X |
X |
✔ |
✔ |
✔ |
✔ |
|
Dual Vision Fusion |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Customized temp. measurement point |
X |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Customized temp. measurement area |
X |
X |
✔ |
✔ |
✔ |
✔ |
|
Photo function with temperature data |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Simultaneous Capture of thermal & visible image with temperature data |
X |
X |
✔ |
✔ |
✔ |
✔ |
|
Voice Annonation Function via Microphone |
X |
X |
✔ |
✔ |
✔ |
✔ |
|
Image Naming |
X |
X |
✔ Text Input + QR Code scanning |
|||
|
Timed photographing on the device for continuous monitoring |
X |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Video capture on the device |
X |
X |
Video only |
|||
|
Temp. Alarm |
LED flashing / Screen indication |
Screen indication |
||||
|
Data Storage |
16GB SD Card |
32GB SD Card |
||||
|
USB Output Video Transmission for Real Times temperature Analysis |
X |
✔ |
✔ |
✔ |
✔ |
✔ |
|
PC Software Support for Analysis |
Yes, temperature analysis and image optimisation |
Yes, full-frame real-time temperature analysis and real-time point/line/area temperature analysis. |
||||
|
Tripod Support |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Wireless Data Transmission |
X |
X |
WIFI |
WIFI |
Wifi |
WIFI, support, cloud storage |
|
Charging port |
USB Type-C |
|||||
|
Battery charging (in instrument / remove and charge) |
In instrument |
External charging bay |
||||
|
Number of batteries provided |
1 |
1 |
2 |
2 |
2 |
2 |
|
Battery Operation Time(hours) |
11 |
15 |
4 + 4 |
4 + 4 |
4 + 4 |
3 + 3 |
|
Dimension (in mm) |
237 x 75 x 92 |
256 x 105 x 105 |
||||
|
Environmental Protection |
IP54 Water/Dust resistant, 2M Drop/impact proof |
|||||
|
Applications |
General electrical inspection, Equipment inspection |
Electrical diagnostics, equipment Inspection, Motor bearing inspection , HVAC, Product R&D, PCB Inspection, Facility Maintenance |
Power distribution panels , Bearing inspection, Industrial MRO |
Railway traction, Electrical diagnostics, equipment maintenance , HVAC , vehicle maintenance, Electronics PCB testing |
Power distribution & transmission, Solar photo voltaic cells, R&D |
Electrical diagnostics, equipment maintenance , Power equipment,Solar, HVAC , Product R&D, Building inspection |
