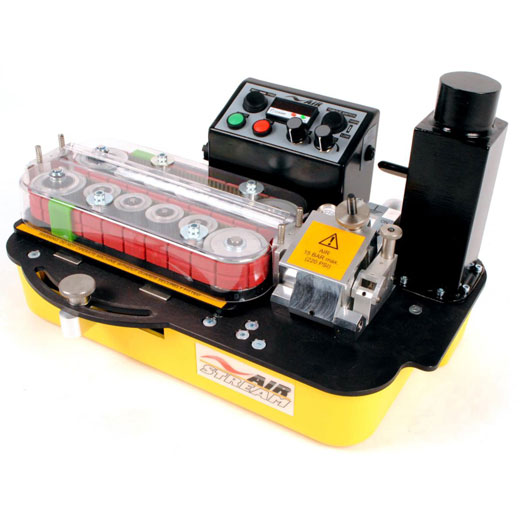

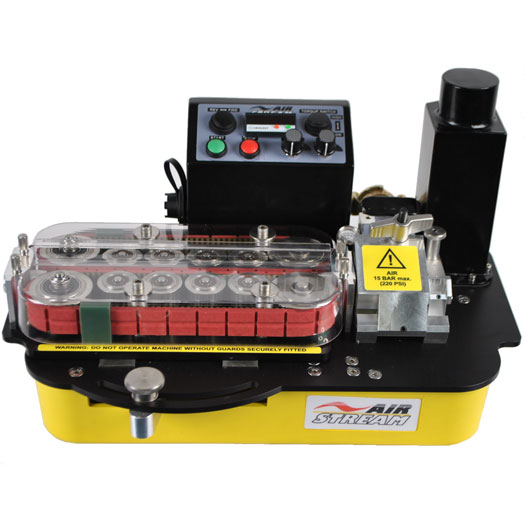

AirStream Micro-Fiber Cable Blowing Machine

C-1700 AirStream is microfiber cable blowing machine designed to maximise protection for micro cables with a complaint double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Its key features include single person operation with safe, easy to operate ergonomic controls combines with low maintenance and high reliability. The C-1700 is adjustable to suit a wide range of cable diameters 2.5-11mm.

Specifications
Product Specification

Cable Diameter

2.5 to 11mm

Tube Size (Outside Dia)

5 to 18mm

Cable Speed (Adjustable)

0-80m/min

Air Pressure

10-15 Bar

Power Requirement

220/110 VAC

Width

300mm

Length

460mm

Height

270mm

Net Weight

14kg

Features
Features
  • Automatic Cable centralizing
  • Synchronous high grip profiled complaint drive belts.
  • Tabletop design with ergonomic controls for ease of operation.
  • Forward and reverse.
  • Variable torque and speed controls.
  • Digital servo motor drive system.
  • Auto stop facility when air stone fitted.
  • Single person operation.
  • Digital Cable Speed and length monitoring
  • Integral air valve and pressure gauge.
  • Easy cable threading.
  • Polycarbonate safety guarding.
  • Lightweight and compact.
  • Low maintenance.
  • Low noise levels.
  • Travel Case.
  • Tool Kit.
