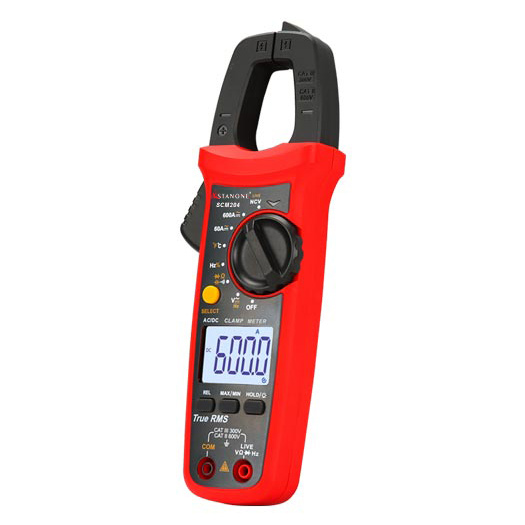

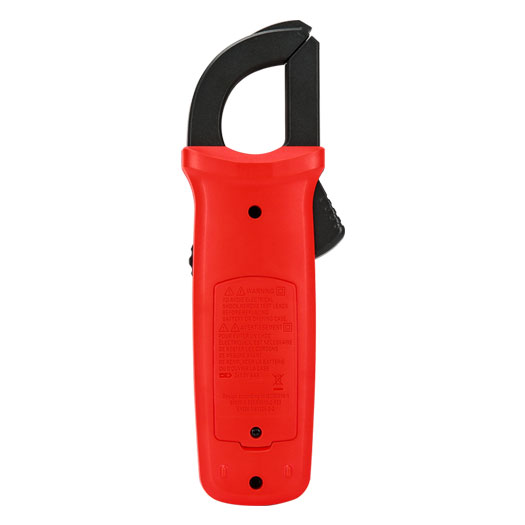

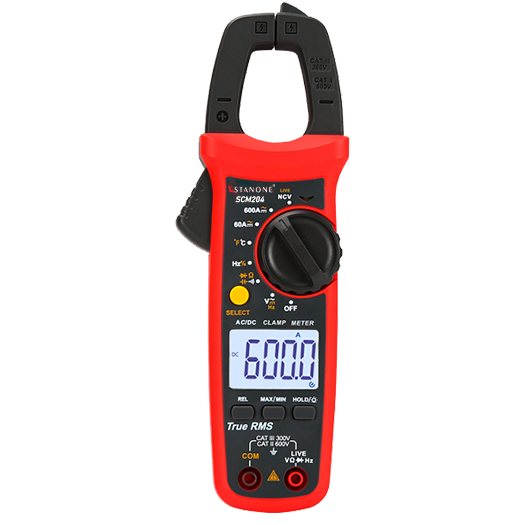

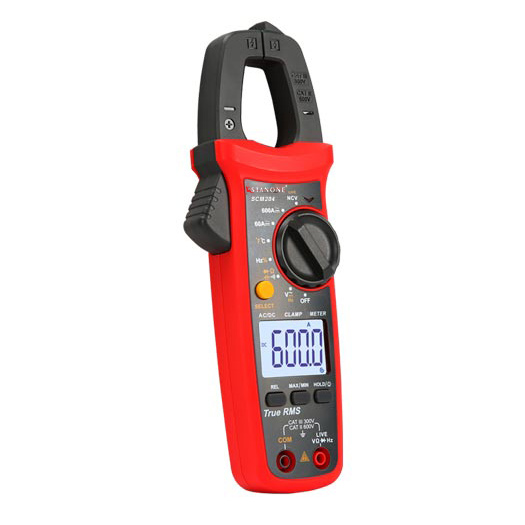

AC/DC Digital Clamp Meter 204+

AC/DC Digital Clamp Meter

204+ is a high accuracy true RMS AC/ DC clamp meter that additionally provides live wire test allowing differentiation between live wires & neutral, Ideal for electrical measurement where both AC & DC current measurement are necessary upto 600A.

204+ is a portable AC/DC clamp meter with auto range feature & provide a variety of measurements including AC/DC voltage, resistance, voltage frequency & including temperature measurement using thermocouple probe.

 The Digital clamp meter is designed with a EN 61010-1 CAT III 300 V safety standard which ensures user a safe & reliable measurement. It has high precision current scale & high voltage frequency measurement extension . 204+ AC/DC digital clamp meter is a great tool for electrical measurements upto 600A & has an additional NCV testing feature allow sense which wire circuits are energized.

Specifications
Product Specification

Model Selection

Range

204+

Auto Range



True RMS



Yes

Display Count

-

6000

Jaw Size



28mm

Measurements





AC Current (A)

0 ~4/40/400

-



0 ~ 60/ 600

±(2.5%+5)

DC Current (A)

0~60 / 600

±(2.5%+5)

AC Voltage(V)

0~ 4/40/400/600

±(0.8%+5)



0~ 6/60/600

±(0.8%+5)

DC Voltage (V)

0~400m/4/40/400/600

-



0~600m/6/60/600

±(0.5%+2)

Resistance (Ω)

0~400/4K/40K/400K/4M/40M

-



0~600/6K/60K/600K/6M/60M

±(0.8%+2)

Capacitance (F)

0~60n/600n /6u/60u/600u/6m/60m

±(4%+5)

Frequency (Hz)

10~10M

±(0.5%+3)

Voltage Frequency

10~10k



(Hz)

10~60k

±(0.5%+4)

Temperature (°C)

-40~1000

±(1.5%+5)

Other Features





Continuity/ Diode/ Max- Min/ Data Hold/ Auto Power off





Yes

NCV (Audio Visual) Detection



Yes , 2 Modes for sensing wire for identifying if mains socket is charged

Live / Neutral Wire Test



Yes

Overload Protection



420 A / 600Vrms

Category Safety Ratings



EN 61010-1, EN 61010-2-030 : 2010, EN 61236 : 2013 ,CAT II 600V, CAT III 300V

General Characteristics





Power

1.5V Battery (AAA) x 2

Display (mm), Backlit

37mm x 25mm

Product Net Weight (g)

235g

Product Size (mm)

215mm x 63mm x 36mm

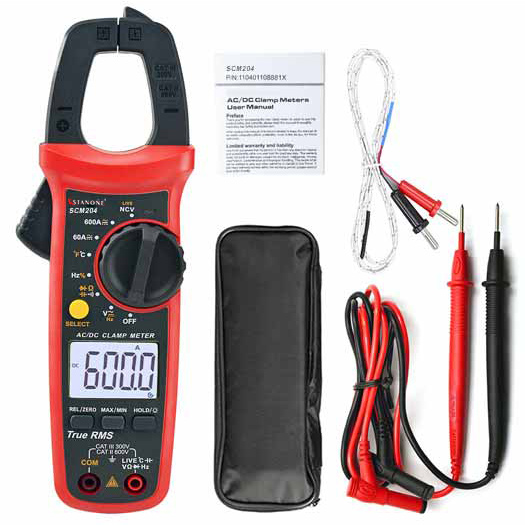

Standard Accessories

Batteries, Test Leads, Thermocouple

Features
Features
  • True RMS, High Accuracy
  • Data hold, auto power-off, MAX mode
  • 3 times sampling rate, Auto range
  • Low battery indication
  • Live wire Test
  • Capacitance measurement up to 60mF
  • Relative mode for capacitance zeroing and offset adjustment
  • NCV available in 204+ allows sense which wire circuits are energized (220V,50/ 60Hz)


FAQ
FAQ
Frequently Asked Questions (5 answered questions)
Yes

Person name: Asian

CAT III 300 V.

Person name: Asian

28mm
