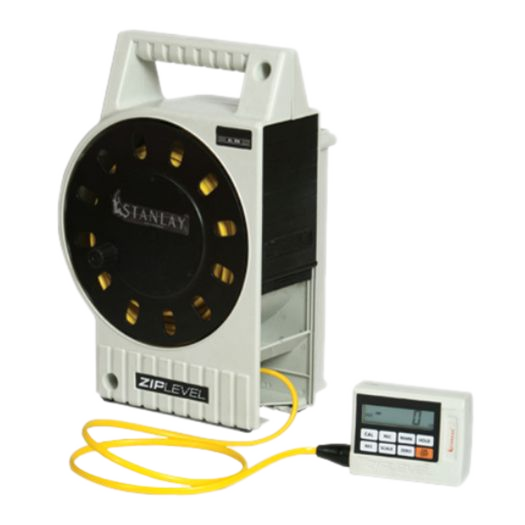

Altimeter Ziplevel Leveling Measurement Instrument

The Altimeter Ziplevel is an award winning surveying instrument based on a patented gas & liquid system that digitally measures the difference in levels with precision in any terrain or between two surfaces or points.  The Ziplevel allows levels to be measured or transferred to other points without any requirement of line of sight and without use of any standard surveying accessories such as leveling staff, tripods etc.

The instrument provides a true one man operation in any survey or construction site activity. The elimination of line of sight requirement allows the instrument to be used for level transfer around corners, through wall openings. The instrument with its computer unit, allows automatic depth measurement, allowing usage of the instrument in hazardous site conditions and difficult to access areas.

Specifications
Product Specification
Technical data
Measurement Range (Horizontal) +/-25m
Measurement Range (Vertical) +/-6m
Accuracy Within 3mm
Operating Range Max 50 m
Working Temperature -30°C to +70°C
Units mm/cm/m
Reference Bottom or front of the measurement module, accuracy of 3mm
Power Supply 9V battery
Size (in mm) 270 x 400 x 190
Weight (in g) 3500

Features
Features

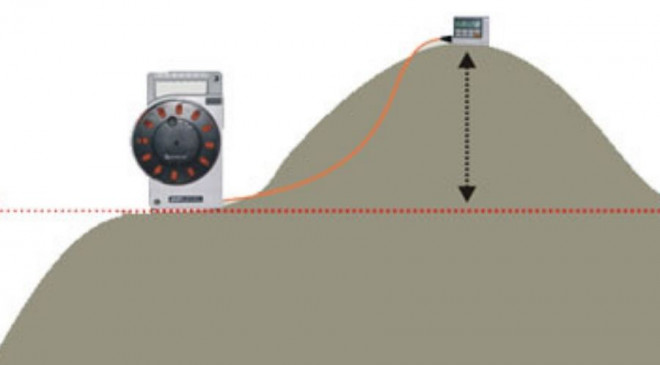

Quick & Easy Levelling

Quick & Easy Levelling

Quickly and easily level & read elevations or deviations from plane.

Or carry out positioning & transfer of levels to inaccessible areas through small gaps – the Ziplevel provides flexibility of operation that is simply not possible with any other type of leveling devices.

No tripods, rod or line of sight required.

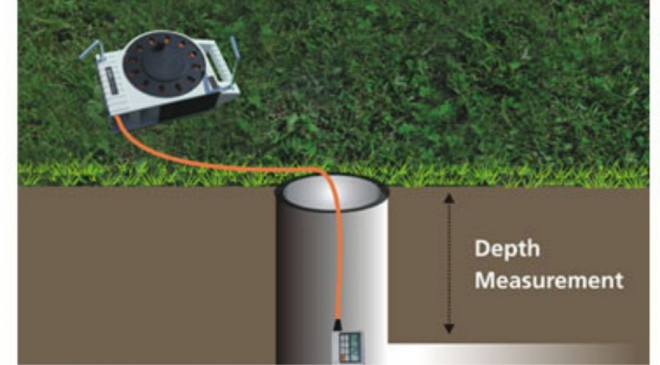

Depth Measurement

Measures depth in difficult to reach, inaccessible or hazardous sites by simply using the hold function that puts the module into a constant measurement mode allowing the module unit to be lowered-reading is frozen when the module unit is stable on the bottom surface.
Depth Measurement

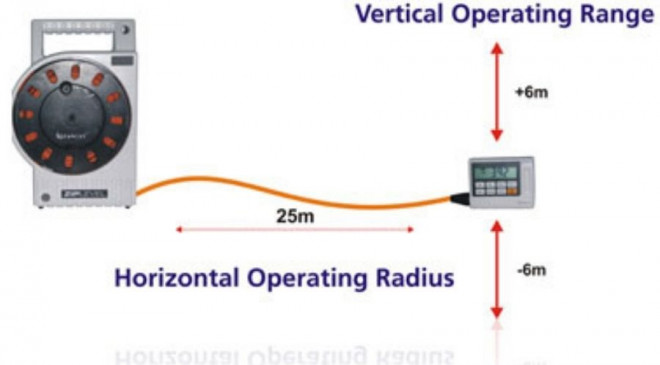

Large Operating Radius
h1 class="heading">Large Operating Radius The Altimeter Ziplevel works perfectly in any indoor and outdoor applications. It has a large operating radius upto 50m and upto +/- 6 m vertical. It is a professional altimeter which enables to scale and measure difference of level & evelvation including around corners with an accuracy of within 3 mm.

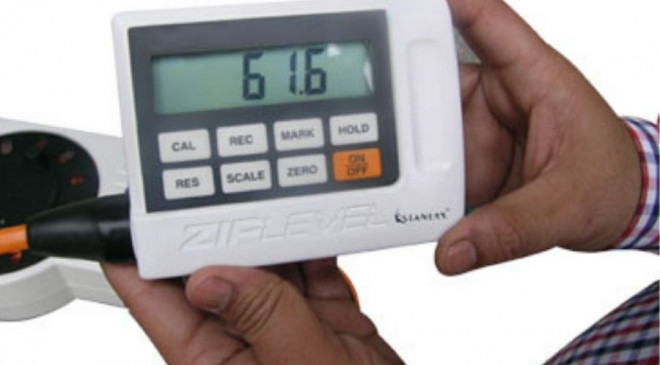

Unit of Measure

The instrument measures in mm, cm, meters.
Unit of Measure

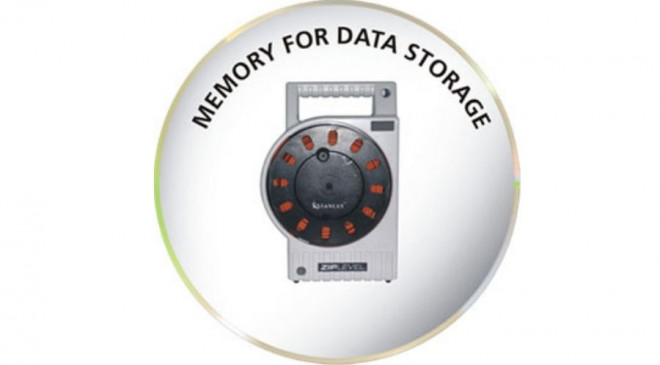

 Memory for Data Storage

Memory for Data Storage

The unit can store upto 135 values in its memory cache.

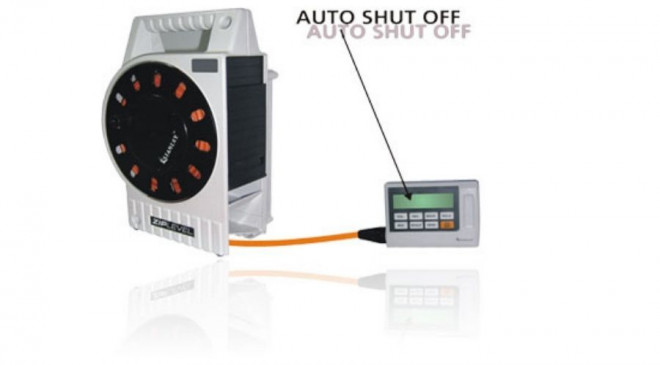

Auto-Shut Off

The unit automatically shuts off after 3 minutes if it is not in operation (with a warning by giving 2 long beeps).
 Auto-Shut Off
Out of Level Sensing

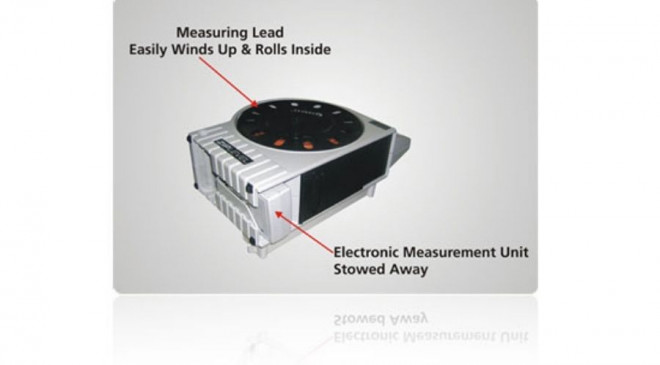

Easy to transport at site

Measuring lead easily winds up and rolls into the protective cage of the unit and the electronic measurement unit can also be stowed into its slot .

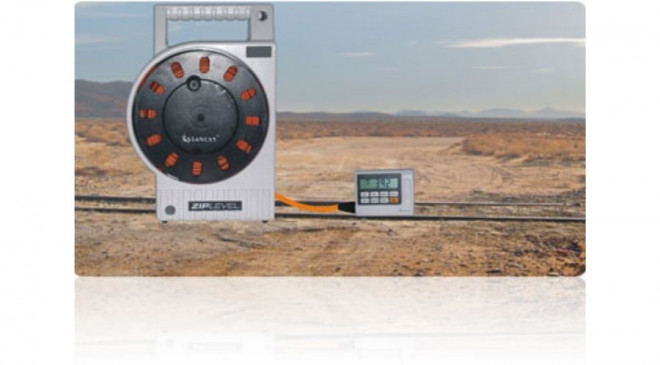

Designed to operate in any condition

Dust resistant. Water resistant. Operating temperature range of – 30° to +70° C.
Designed to operate in any condition

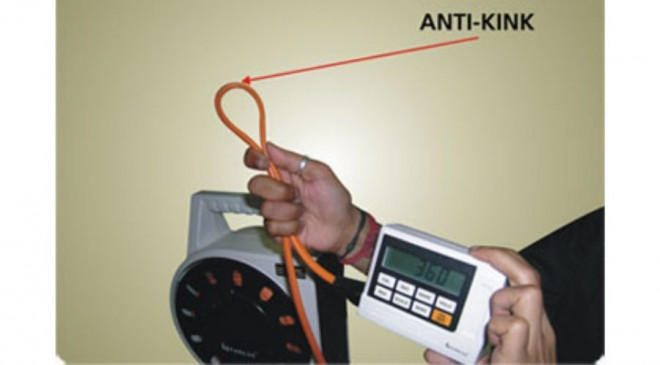

 Anti-Kink

Anti-Kink

Extremely stable lead with Anti-kink protection.

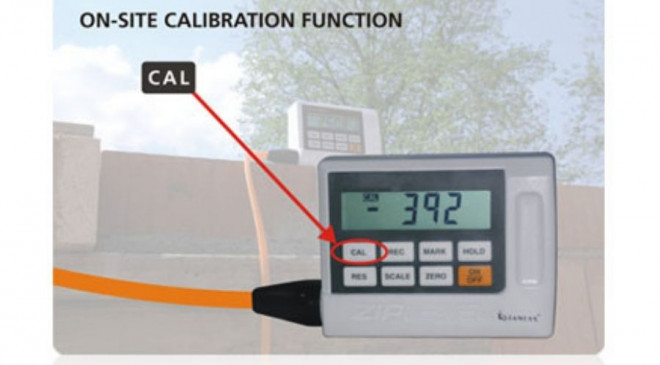

On-Site Calibration function

The Ziplevel has a CALIBRATION button for onsite calibration. The unit can be calibrated in a matter of minutes if the measuring results are wrong or the letters 'CAL' are blinking on the display.
On-Site Calibration function


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!
