S600 Handheld Thermal Imaging Camera

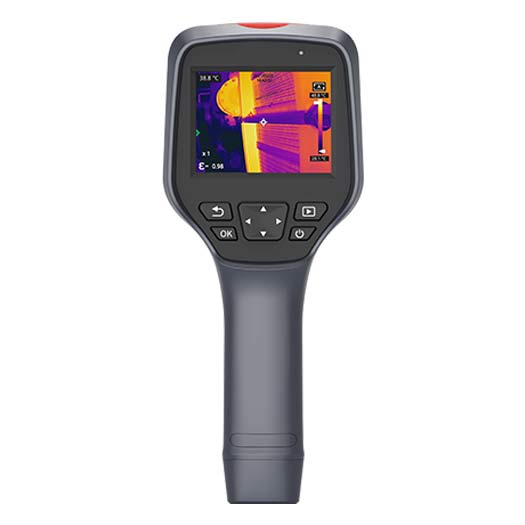

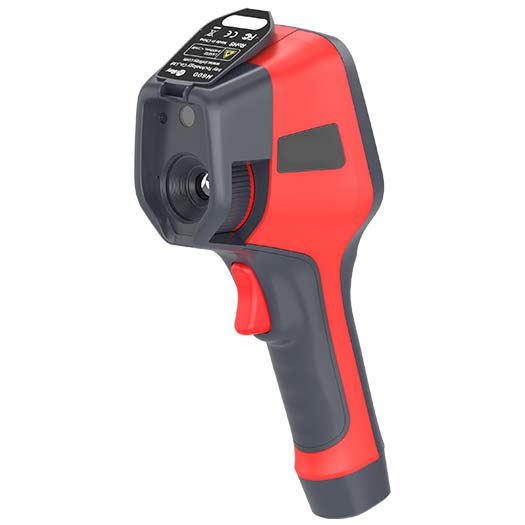

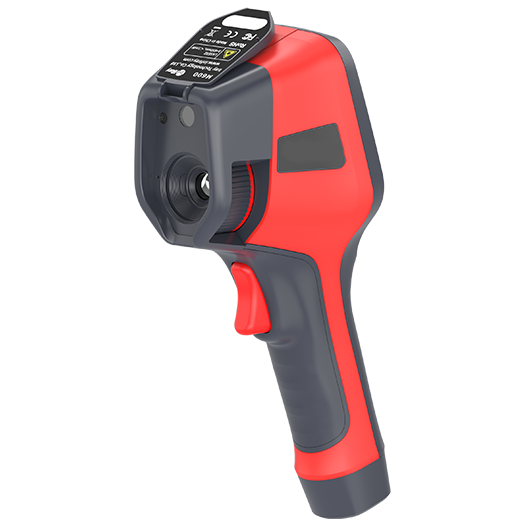

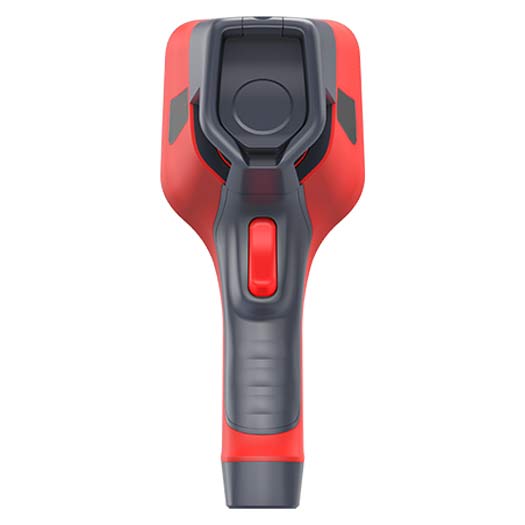

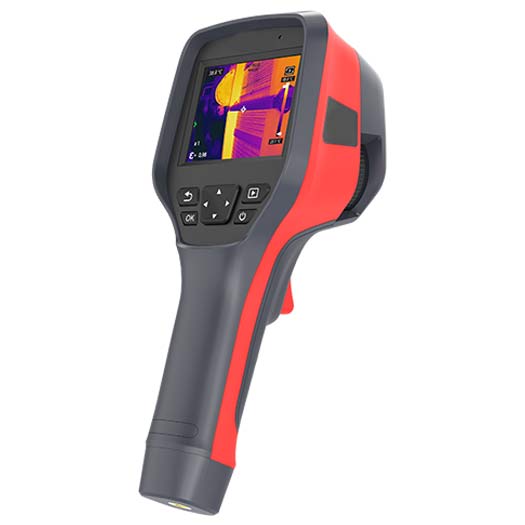

S600 Manual Focus Handheld Thermal Imaging Camera

S600 is a high-performance handheld thermal imaging camera capable of distinguishing a temperature difference of 0.035°C, and together with the 30 Hz high frame rate, can obtain delicate and smooth images and videos in industrial, utility maintenance & scientific research works, with no detail missing. Its measurement accuracy reaches ±2°C, and meanwhile, it provides a wider measurement range to ensure the accuracy of temperature data.

Enabled with 12µm high-performance 640×512 infrared thermal imaging core, together with an accurate manual focusing lens, S600 thermal camera can observe the fine

Structure of circuit board accurately from a close distance, or inspect power lines and building facades far away. With 8x digital zoom and ultrahigh infrared resolution, it can perfectly replace the combination of one camera and multiple lenses with low resolution no need to change the lens.

The Thermal Imager supports timed photography & cloud services which makes data easily accessible & transferrable for real time & offline analysis.

The S600 Thermographic Camera offers high/low temperature alarm & timed photography allowing detection of the area exceeds the threshold value & reduces the loss caused by high temperature accident It supports timed photography feature to record temperature rise changes for various scientific research applications.

S600 has 5 image modes including detail enhancement, IR, visible light, PIP, and fusion, with 10 pseudo color settings, to meet the temperature measurements of different requirements and increase the efficiency of temperature measurement.

The IR Thermal Camera Provides 640×512 HD infrared thermal image & allows operator to view more temperature information details of each image on the 3.5-inch HD touch screen.

Integrated with voice annotation & QR code naming functions allow an operator to quickly distinguish the necessary information for imaging during a long time period of temperature measurement work and recognize the real-time site situation at that time accurately. The images can be named automatically, or by scanning QR code, or by entering a name manually

Request Quote

Features

Resolution- 640×512
Larger Screen Size- 3.5” LCD touch screen
Timed Photography
High/Low Temperature Alarm
Video Capturing, Voice Annotations
4 Imaging modes- Thermal imaging, Thermal fusion, PIP, visible imaging
10 color Pallets
5 MP Camera
Temperature measurement range: -20â„ƒ~550â„ƒ

Specification

Model	S600-M
Detector Type	Uncooled VOx Infrared Focal Plane Detector
Detector Resolution	640×512
Spectral Band	8~14μm +/-0.5mm
Pixel Size	12μm
Thermal Sensitivity (NETD)	<35mk
IFOV	1.31mrad
FOV	48°×38°
Frame Rate (In Hz)	30
Focal Length (In mm)	9.1
Focusing Mode	Manual focusing
Measurement Range	Range 1: -20 to +150 â„ƒ ; Range 2: 100 to 550â„ƒ
Measurement Accuracy	±2ºC or ±2% of the reading
Measurement Resolution	0.1°C
Measurement Mode	Central spot measurement/Hot spot and cold spot tracing, and temperature display
Custom Measurement of Points, Lines, and Areas	Movable point/line/area temperature measurement; displaying hot spot tracing for line/area temperature measurement; displaying the highest temperature value for line temperature measurement, and displaying the highest, lowest and average values for area temperature measurement
Measurement Unit	Centigrade, Fahrenheit, Kelvin
Distance Setting	0.5 to 12m
Image Mode	IR, visible light, PIP, fusion
Palette	10
Alarm Mode / Temperature Alarm	Image alarm/Support temperature alarm
Temperature Range of Color Code	Manual/ Automatic temperature range
Visible Light Camera / Laser Pointer	Yes
Visible Camera Resolution	5 MP
Digital Zoom	1x, 2x, 4x Max. 8X
Photo / Video Storage Function	IR .jpg picture + visible light .jpg picture with temperature data; video without data
Voice Annotation Function	Voice annotation via microphone
Image naming	Auto/manual input, QR code scanning
Display Screen Size (Inch), Resolution	3.5-inch LCD touch screen (640x480)
Data Storage	Standard 32GB Micro SD card
Cloud Function	Transfer shooting data to cloud drive, share data and perform secondary analysis at multiple clients; support automatic time synchronization
Battery Type	Rechargeable Li-ion battery
Power Supply	USB Type C
Connection Type	USB, SD card, WiFi (AP mode or networking mode)
Battery Operation time	About 3h
Charging Time	About 3h
Power Management	Automatic shutdown: 5 min, 10 min, 20 min, non-automatic shutdown
Analysis Software	PC & APP
Operating Temperature \| Storage \| RH%	-10°C~+50°C \| -20°C~+60°C \| 10% - 95% RH
Environmental \| Drop Protection	Ip54 (IEC 60529) \| 2m
Impact and Vibration	Impact 25g (IEC 60068-2-27); vibration 2.5g (IEC60068-2-6)
Dimension (H×W×D) \| Weight	256.4 ×105.1 ×105.3 (mm) \| About 670g
Product Supply includes	Power adapter, Charging bay, Battery (1 mains +1 spare), Data cable, SD card, User manual

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the screen size of S600?

3.5â€™â€™ LCD (640Ã—480) touch screen
What is the field of View (FOV) of the instrument?

48Â°Ã—38Â°
What is the temperature range of S600?

The temperature range of the S300 thermal camera is -20~550â„ƒ
What is the IR resolution of the device?

640Ã—512 pixels which denotes that an image will have fine detail based on 327680 pixels.
Is the instrument drop proof?

Yes, This device is 2m drop-proof.
What is thermal sensitivity of S600?

35mK
How many image modes are available?

4 Image Modes- Thermal imaging, fusion, PIP & visible imaging.

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	1.84 MB			April 02 2025 21:25:10

S600 Manual Focus Handheld Thermal Imaging Camera

S600 Manual Focus Handheld Thermal Imaging Camera

What is the screen size of S600?

What is the field of View (FOV) of the instrument?

What is the temperature range of S600?

What is the IR resolution of the device?

Is the instrument drop proof?

What is thermal sensitivity of S600?

How many image modes are available?
