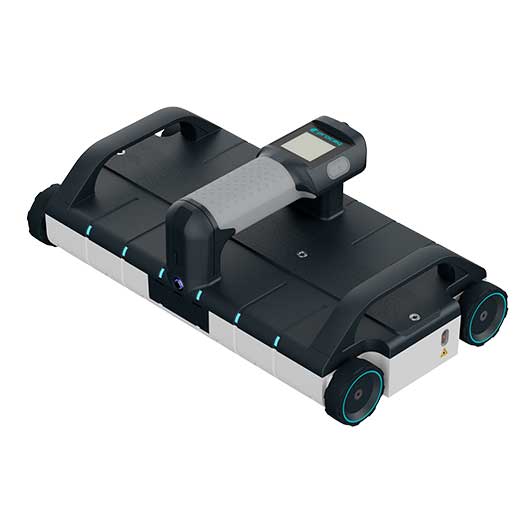

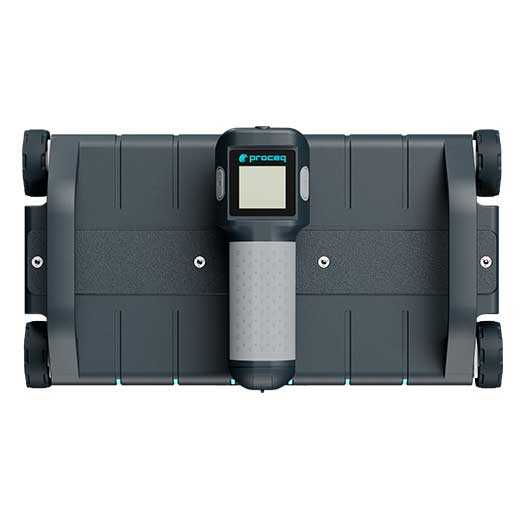

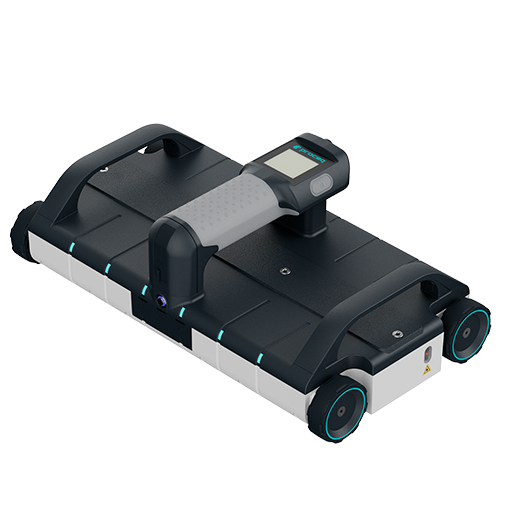

GP8100 Wide Array Concrete GPR

Wide Array Concrete GPR GP8100

GP8100 is a wide scan width Concrete GPR from Proceq Ground Penetrating Radar series. Enabled with Quick object detection it is based on an array of 6 antennas providing a 25cms effective scan width and an effective top class penetration depth upto 80cm.

The Portable concrete GPR array offers supreme data clarity as it detects objects of all sizes & marks on concrete surfaces with ease. The superline scan visualization instantly displays the output in never seen clarity.

The high scan rate of 1200 scans/s enables a very dense GPR data collection in only one superline scan, which is equivalent to 6 classical line scans.

The Proceq GP8100 GPR comes with stepped frequency continuous wave (SFCW) technology which has the advantage to broadcast an ultra-wide-band range of modulated frequencies. All frequency responses get combined & enables detection of objects from shallow to deep depth in one scan.

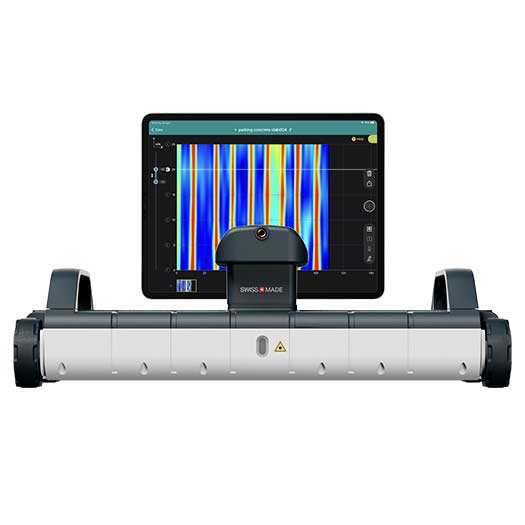

The stand out feature of the GPR is different review modes & advance visualization with the help of post processing software; From Superline, split review modes to 3D & AR (Augmented Reality) advance visualization, the Proceq GP8100 is ideal for fast scanning of large concrete structures for condition assessment or rebar detection.

The GP8100 Concrete Scanning GPR offers large data collection through cloud storage & allow instant report generation to share the report as quickly as possible via url.

Request Quote

Features

Large scan width
High scan rate of 1200 Scans/sec
Best-in-class penetration depth upto 80cm.
Fast detection of objects of any size with the superline scan view
Dense, accurate GPR data collection in one superline scan

Specification

Measurement Modes	Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100m2 / 1076 ft2)
Review modes	Superline scan¹ A-scan (incl. envelope) Migrated view Non-migrated view Split view¹ Time-Slice view² Basic 3D view AR
Advanced visualization	Time-Slice view Pro 3D view Augmented Reality (AR)
Reporting	Workspace integration Automatic Logbook SEG-Y export Instant report generation Share via URL
Radar technology	Stepped-frequency continuous-wave (SFCW) GPR
Modulated frequency range	400 – 4000 MHz
Penetration depth	80 cm / 31.5 in
Battery	Flight-safe, removable pack, 8x AA (NiMH)
Dimensions	41.5 x 22.5 x 13.2 cm 16.3 x 8.9 x 5.2 in
Weight	3.0 kg / 6.6 lbs (excl. battery pack)
Ground clearance	0.8 cm / 0.32 in
Antennas	6
Antenna distance to edge	8.3 cm / 3.27 in
Special features	All-wheel drive with high-traction wheels and laser light guidance USB-C tethering to power bank
Connections	Wi-Fi (802.11n) to display unit USB-C for Wi-Fi restricted areas
Autonomy	3h (Up to 8 hours with off-the-shelf 10'000 mAh power bank, not included)

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the Penetration Depth of GP8100 GPR?

80 cm / 31.5 in
What is the scan width of GP8100?

25 cm
What is the scan rate of the Equipment?

The GP8100 GPR has high scan rate of 1'200 scans/s
Do I need to calibrate my GP8100?

No. GPR self-calibrates each time you turn it on. There is no need to send your unit back to a repair/calibration center.
What is the output data format for GP8100 GPR?

GPR exports data in the SEG-Y format. This can be easily converted to other formats like .xls, .dxf or .kml if needed for further visualization of data
Can GP8100 detect the voids under concrete?

Air inside the concrete results in a partial reflection of the GPR signal, which allows you to detect larger voids

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	2.43 MB			March 05 2022 13:32:05

Product Video
