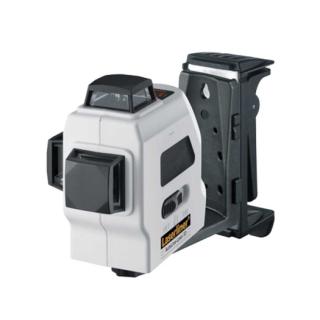

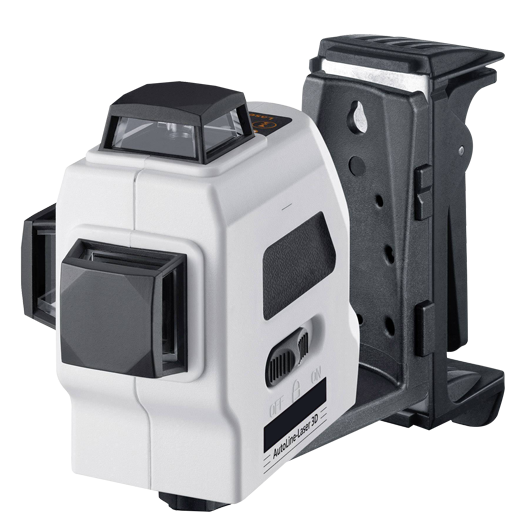

Auto Line Laser 3D Plus

  • Product Description
  • Specifications
  • Features

The Auto Line Laser 3D Plus is a top end professional laser level that projects laser lines with a working range of 360° in three dimensions.

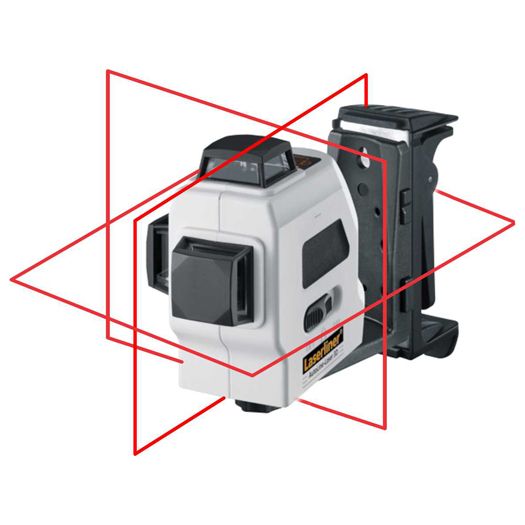

It provides one horizontal and two vertical homogeneous 360° laser circles and slope function making 3D a valuable partner for any construction or precision engineering job that require productivity and precision.

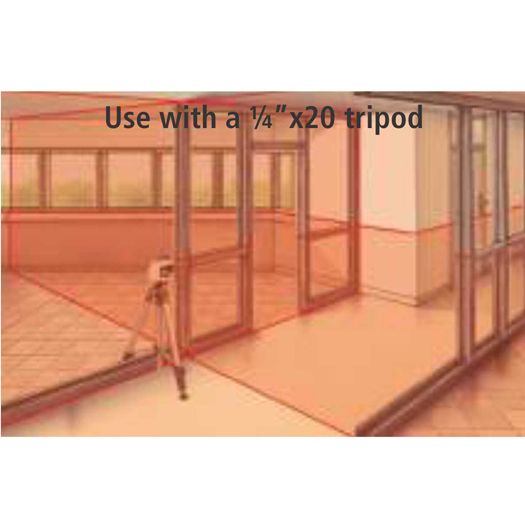

Mount on a wall or utilize with a Tripod – Mounting Bracket and a 1/4” X 20 Tripod are included.

The 3D laser is ideal for demanding precision engineering jobs or demanding construction environments.

Model: ACL3DP
Accuracy: 2 mm / 10 m
Self-levelling range: ± 2.5°
Operating range: (depending on room illumination) 20 m
Laser wavelength: 640 nm
Laser: line lasers, class 2M < 5 mW
Power supply: 4 x 1.5V (type AA, LR6)
Operating time: with 3 laser levels: approx. 6 hours
  with 2 laser levels: approx.10 hours
  with 1 laser level: approx. 25 hours
Working temperature: 0°C ~ +50°C
Storage temperature: -10°C ~ +70°C
Water and dust protection: IP 54
Weight: incl. batteries 0.5 kg
Dimensions: 115 x 95 x 65 mm (W x H x D)
  • PowerBright laser with 3 extremely bright 360 degree laser lines.
  • Straight forward plumb function using laser crosses.

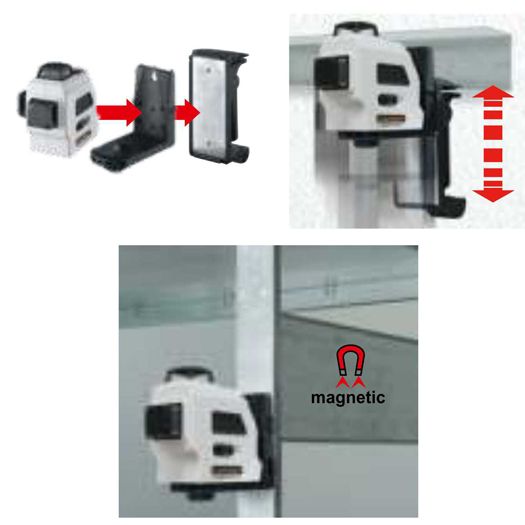

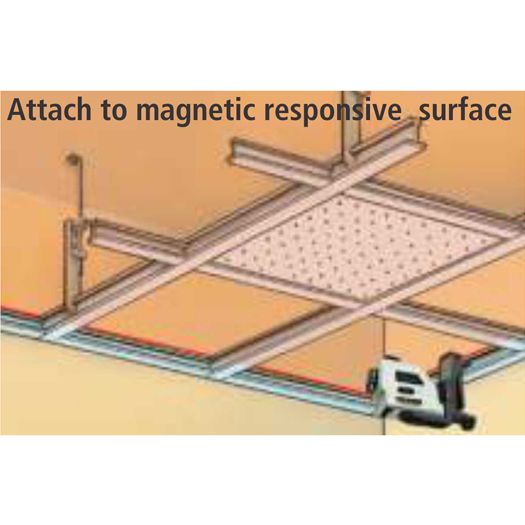

  • The magnetic wall bracket allow it to be used as a stand-alone device or in combination with others –on the wall or attached to magnetic objects.
  • Automatic Level: automatic alignment by virtue of a magnetic pendulum system.
  • Tilt mode is an additional feature that permits gradients to be laid out. Optimised for work close to the ceiling.
  • Out-Of-Level: is indicated by optical signals when the unit is outside its self-levelling range.
  • RX-Ready: The integrated hand receiver mode detects the laser lines with the optional laser receiver RX up to a max. of 50 m radius ideal for all interior and exterior applications.
  • Transport lock: A pendulum lock protects unit during transport.
