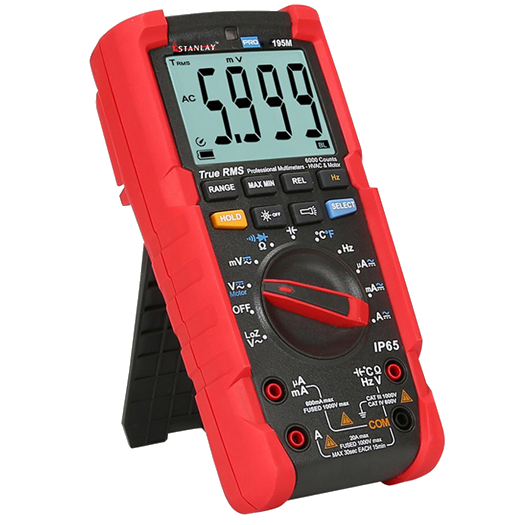

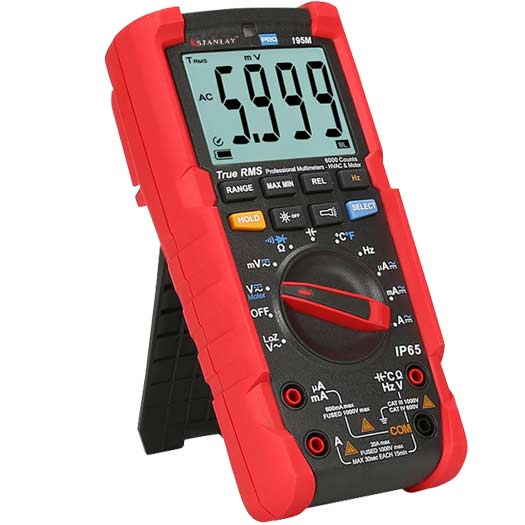

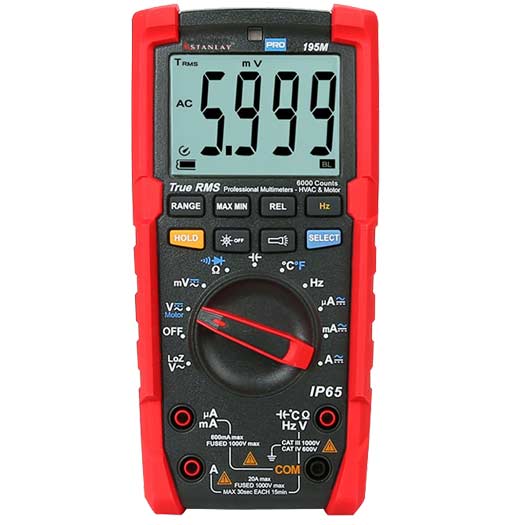

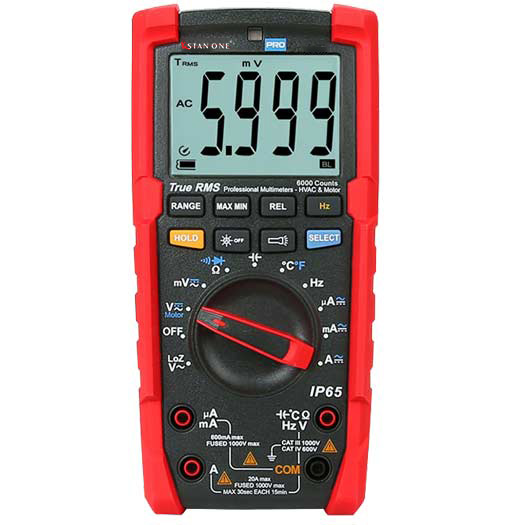

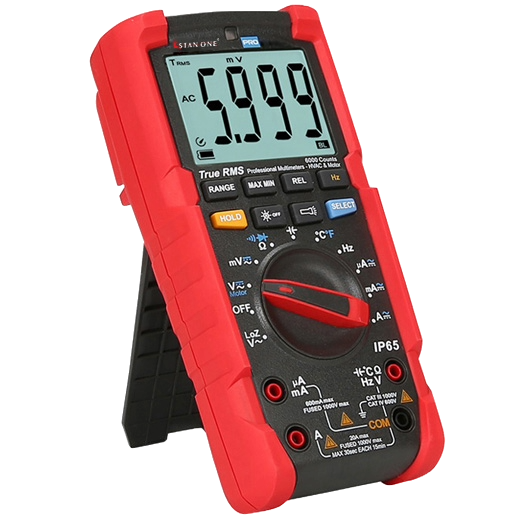

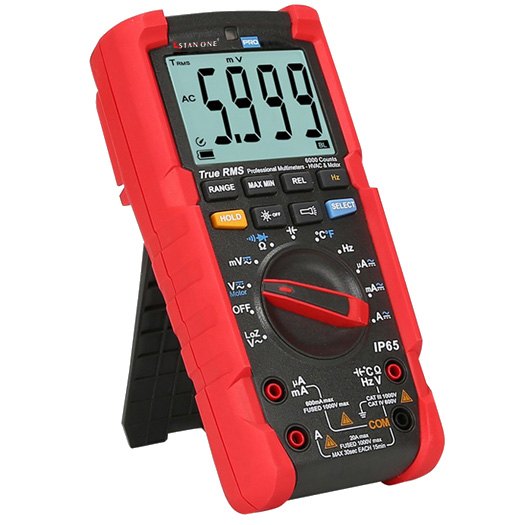

SMM198 True RMS 20A Professional Multimeter

SMM198 hand-held industrial grade digital multimeter is highly reliable, safe and durable. It is designed with IP65 water and dust proof rating and 2-meter drop proof. Ideal for diagnostics of motor drives, factory equipment maintenance, electrical distribution etc.

The SMM198 multimeter features LoZ function providing the ability to identify wiring that is picking up a ghost voltage from a nearby electrical source such as electrical wiring running in the same conduit.

Features

LoZ voltage test, for ghost voltage measurement
20A current measurement (max 30 seconds)
Motor phase sequence measurement
with 2 probes
ACV 750V 5kHz bandwidth
Built in flashlight
IP65 water & dust proof rating
CAT III 1000V, CAT IV 600V

Specification

Auto/Manual Range	√
True RMS	√
Display Count	6000
Bandwidth	1kHz
Measurements
DC Voltage	600mV/6V/60V/600V/1000V	± (0.5%+3)
AC Voltage	600mV/6V/60V/600V/750V	± (0.7%+3)
LoZ ACV	600.0V	± (2.0%+3)
DC Current	600μA/6000μA/60mA/6A/20A	± (0.8%+3)
AC Current	600μA/6000μA/60mA/600mA/6A/20A	± (1.0%+3)
Resistance	600.0Ω ~ 60.00MΩ	± (0.8%+2)
Capacitance	6.000nF ~ 60.00mF	± (3%+5)
Frequency	60.00Hz ~ 40.00MHz	± (0.1%+4)
3-phase motor sequence test	80-600V
Temperature ⁰C	-40 ~ 1000°C	± (1.5%+4°C)
Temperature °F	-40 ~ 1832°F	± (2.0%+5°F)
AC voltage frequency response	45 ~1kHz
AC current frequency response	45 ~1kHz
Diode Test	3V
Continuity Buzzer	√
Working Temperature	0 °C ~40 °C
2m drop proof	√
Display
MAX/MIN	√
Function Selection	√
Low battery indication	√
Auto Power off	√
Flashlight	√
Auto Backlight	√
Other Features
Environmental Protection Rating	IP65
Category Safety Ratings	CAT III 1000V CAT IV 600V
General Characteristics
Size (WHD)	195mm X 95mm X 58mm
Weight	437 g
LCD size	66mm x 51mm
Power supply	9V 6F22 carbon-zinc or 6LR61 alkaline battery
Standard Accessories	Test probes, battery, carrying bag, point type temperature probe
