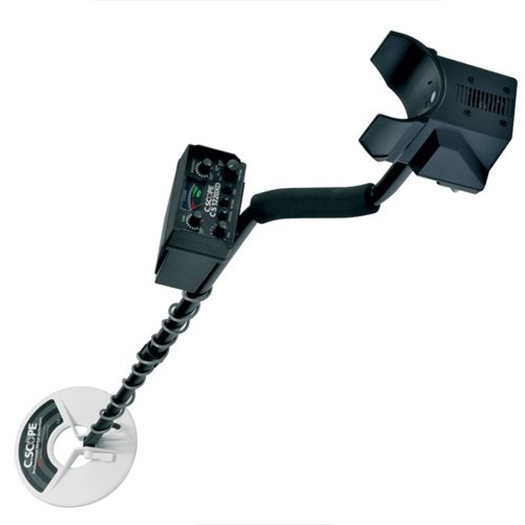

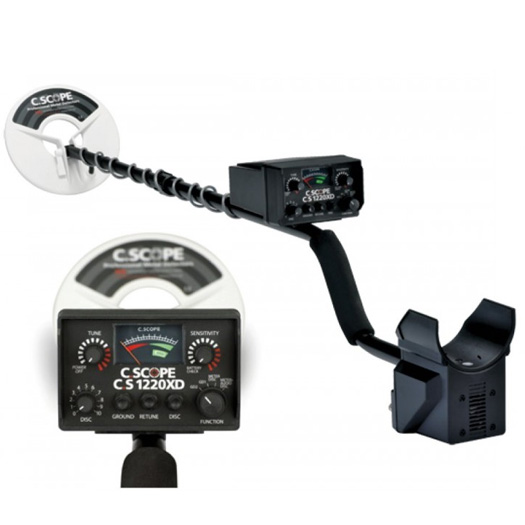

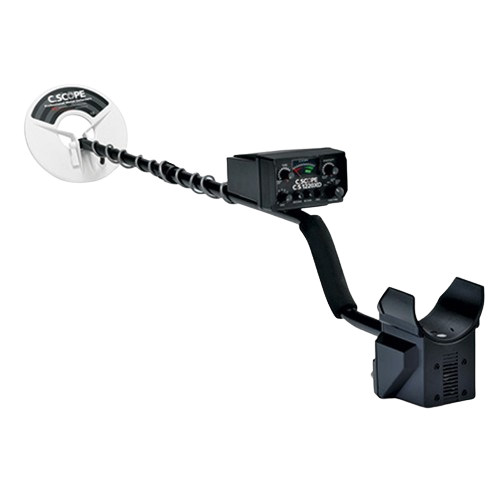

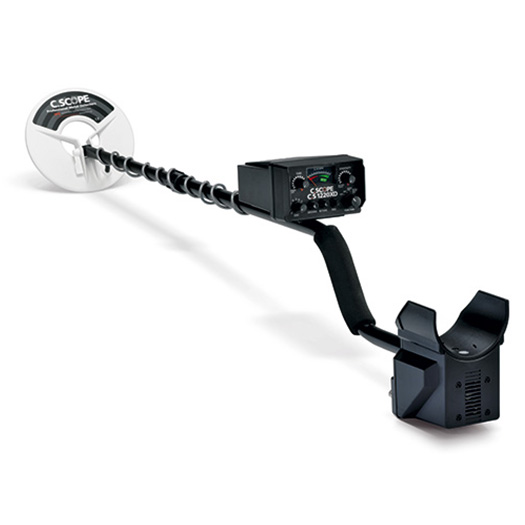

CS1220XD Metal Detector

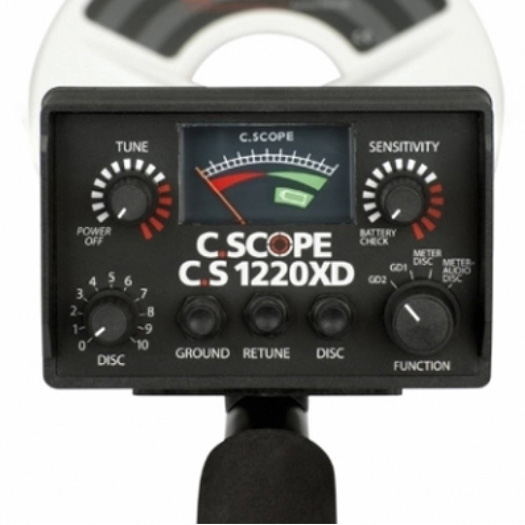

CS1220XD Metal Detector is a 3-Mode operating Non Motion Detector with audio and visual output. The intelligent sound system allocates higher pitch to valuable objects and lower pitch to undesirable targets and the visual display provides information about the desirability of the object.

The G/D MODE is a 2 channel system which allows you to switch rapidly between a MAX DEPTH ‘normal’ search pattern and Target ID to check if the target is worth digging.

The Meter Disc Search Mode operates to deliver maximum information about the target underground and acts as an extension of the ‘eyes and ears’ of the detector. The audio channel of the detector operates in maximum depth while the screen provides information about the desirability of the object.

The CS1220XD 17 KHz single frequency non motion metal detector is lightweight and waterproof.

Product Specification
Non Motion Detection YES
Motion Detection -
Pulse Induction Detection -
Search Head Diameter cm 20
Shortest Usable Height cm 1.1
Maximum Usable Height cm 1.42
Polo Isocon Search Head YES
Adjustable Stem YES
Weight (incl. batteries) g 1630
Belt Mountable Control Box -
Headphone Socket Diamete 6.3
Internal Loudspeaker YES
Retune Button YES
Automatic Retune YES
Discrimination YES
Meter Discrimination YES
Audio Discrimination YES
Variable Discrimination YES
Beach - Inland Switch -
Operating Frequency kHz 17
Battery Type 8XAA
Typical Battery Life* hours 30
Guarantee** years 2+3
*  Depends on usage pattern and type, Alkaline recommended
** 2 years Parts and Labour plus additional FREE 3 years parts cover
    Conditions apply. See Guarantee Form supplied with detector
  • Single frequency technology 17Khz
  • 3 way operation search technique
  • Non-Motion search technique
  • Push-Button return
  • Pre set ground balance
  • Audio and Meter discrimination with pre set
  • Counter balanced battery box/armrest
  • Adjustable stem
  • 8 X AA battery power
  • Socket for (optional) headphones

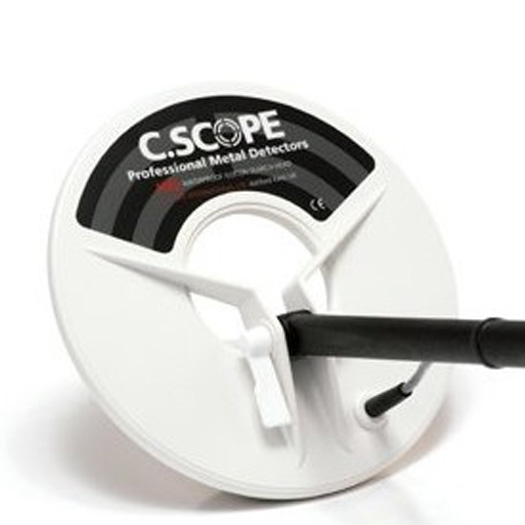

  • Light weight 20cm isocon water proof polo search head.
