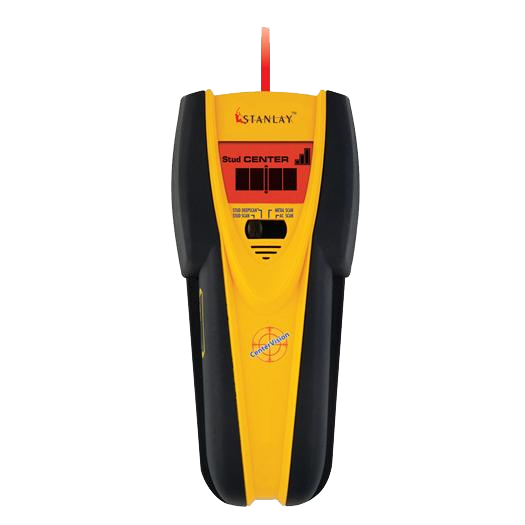

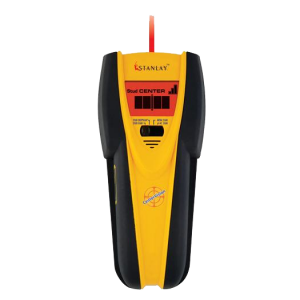

I520 Multi Scanner Wall Scanner

The I520 is a wall scanner used to locate PVC & Metal Conduits, Hot Electric Wiring, Electric Boxes In Wall, Tile & Concrete. MultiScanner i520 OneStep quickly and easily locates conduits behind walls, floors, and ceilings. It also locates metal as well as live AC electrical wiring.

Based on the principle of detecting change in surface sub densities, the I520 wall scanner locates both the edges and centre of conduits, plastic pipes or ducts embedded in walls. The I520 wall scanner also locates electrical boxes in walls.It also identifies live electrical wiring ensuring that you don't drill into potentially hazardous locations in the wall. The I520 has a huge application in locating plumbing pipes behind tiled or marble walls in toilets ensuring that you don't cause unnecessary leaks by drilling through plumbing.

Product Specification
Measurement Depth Up to 38 mm(1.5 inch ) for PVC conduits in stud scan mode
  Up to 38 mm (1.5inch) for copper in metal scan mode
  Up to 76 mm (3inch) for rebar pipes in metal scan mode
  Up to 51 mm for AC wires 95-250V at 50Hz
Power Supply 1 x 9V Battery
Size (in mm) 184 x 81 x 36
Weight (in g) 226
Environmental Water & Splash Proof resistant, not water proof
Item Code ST-i520
  • A 4-mode switch makes it easy to change functions, while the ultrabright display screen, SpotLite® Pointing System, and audio tone all indicate the location of the target
  • The signal strength indicator helps to distinguish between shallow and deep targets.
  • Stud Scan mode locates the edges and center of PVC conduits, wood or metal conduits studs up to ¾ inch (19 mm) deep.
  • DeepScan® mode doubles the scanning depth to 1½ inches (38 mm).
  • AC Scan finds and traces live, unshielded electrical wire up to 2 inches (51 mm) deep.
  • Metal Scan mode locates nonferrous metal such as copper pipe up to 1½ inches (38 mm) deep, and ferrous metal & ferrous pipes such as rebar up to 3 inches (76 mm) deep.
  • WireWarning® detection indicates the presence of live, unshielded electrical wire up to 2 inches (51 mm) deep in stud and metal scanning modes.
  • ACT™ (Auto Correcting Technology) corrects common user errors automatically, such as when scanning begins over a stud.
