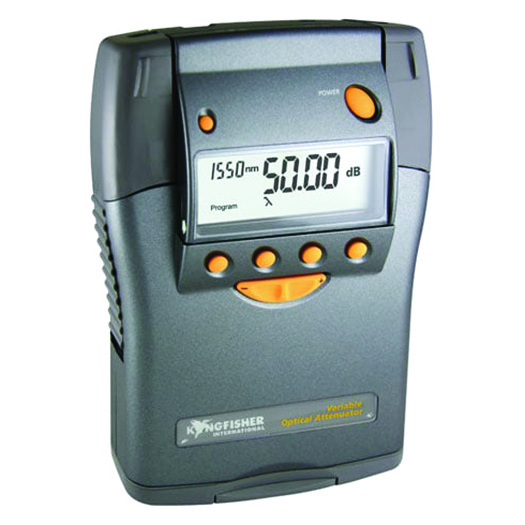

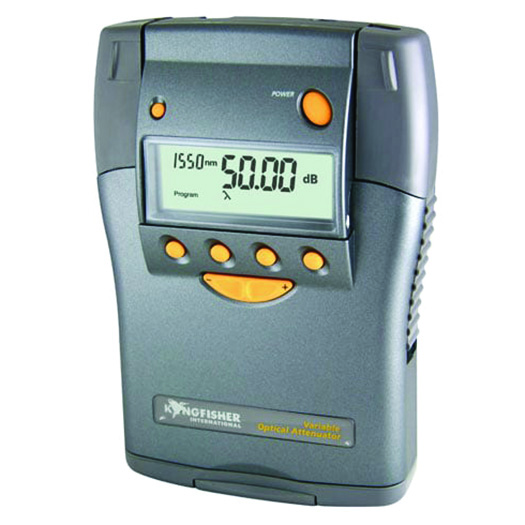

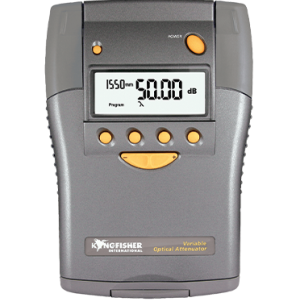

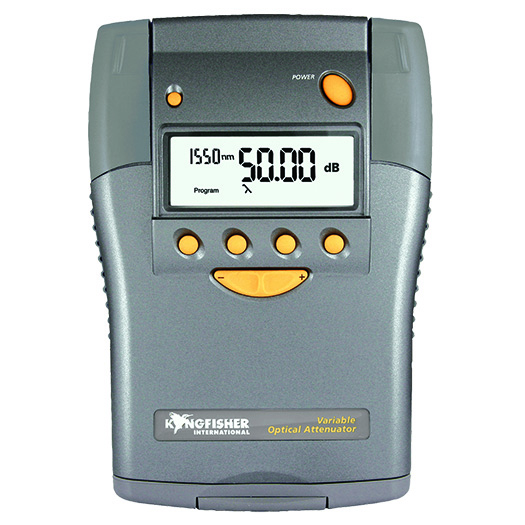

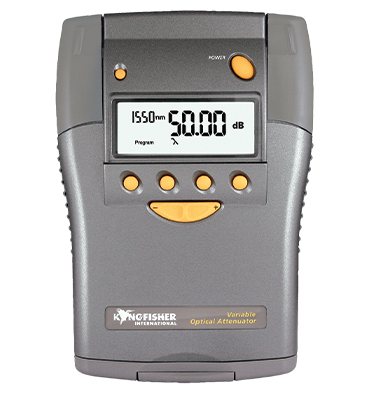

KI 7000B Automated Variable Optical Attenuator

The Kingfisher (Now a Tempo Company) KI 7000B Automated Variable Optical Attenuator is the industry benchmark instrument for testing optical transmission equipment. It combines superb accuracy with high productivity and numerous useful attributes, resulting in a very versatile instrument.

The KI 7000B fiber optic attenuator provides optimum performance for testing all fiber optic transmission systems, sub systems and components. Many excellent optical characteristics enable confident testing of high speed; high power systems which require superior power handling, ORL, PMD and PDL characteristics.

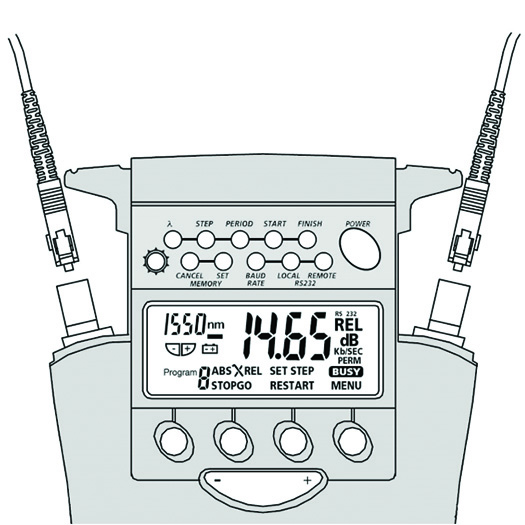

Attenuation is up to 60dB & finds equal use in CWDM & DWDM fiber systems. Operational modes include: manual, relative, step and remote control via a PC. Step mode is very useful for typical linearity checking applications.

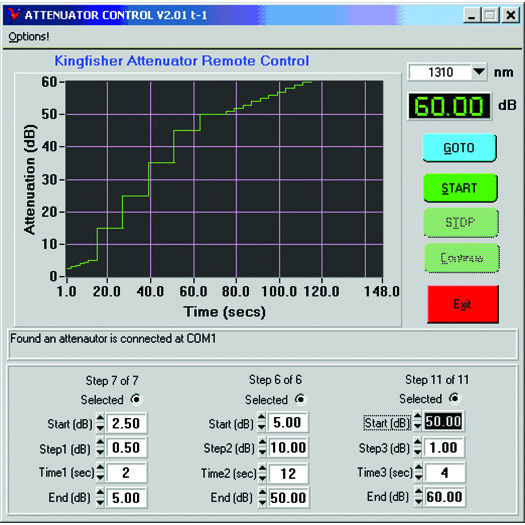

The Labwindows based PC software is used to provide external control via an RS232 interface. Alternatively, a simple command set can be used to program the instrument using your own code.

Industry leading linearity & absolute accuracy with an ILAC/ ISO 17025 traceable calibration certificate enables precision testing of sub systems & components. The KI 7000B Variable Optical Attenuator choose model options based on fiber type, single mode, multi-mode or POF.

Read more »
Request Quote
KI 7000B Automated Variable Optical Attenuator
Features
  • Compact, rugged & light weight.
  • Multiple user defined sequences.
  • Remote control PC software.
  • ISO 17025 traceable calibration certificate.
  • Up to 2 calibrated wavelengths.
  • Low wavelength sensitivity.
  • High optical power capability.
  • Good ORL, PDL & PMD performance.

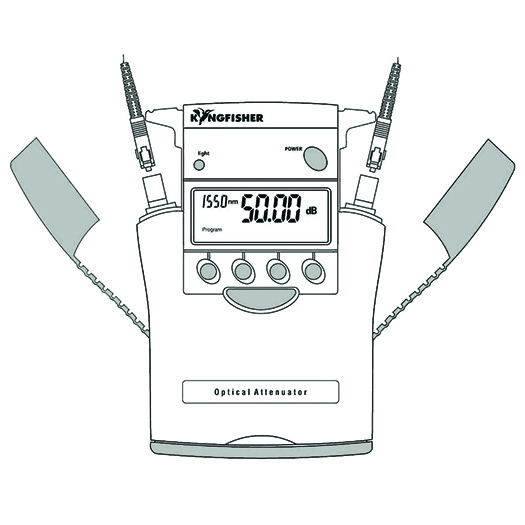

  • Interchangeable connectors.
  • Long battery life & external Power.
Specification

Optical Specifications:

Parameter

Single-mode

Multi-mode

POF

Fiber type

9.5 / 125 μm

50 /125 μm or 62.5/125 μm

900 μm /1 mm

Range

2.0 ~ 60 dB

3.0 ~ 60 dB

6 ~ 60 dB

Resolution

0.05 dB

0.05 dB

0.05 dB

Linearity/ Repeatability

0.03 dB

0.2 dB

0.2 dB

Absolute uncertainty

0.3 dB

0.5 dB

1.4 dB

Power capability

+30 dBm

+30 dBm

+30 dBm

Optical return loss (ORL)

60 dB

60 dB

N/A

Polarization dependent loss (PDL)

< 0.1 dB

< 0.1 dB

N/A

Thermal stability over temperature

±0.02 dB

±0.02 dB

±0.02 dB

Polarization Mode Dispersion (PMD)

< 1 ps

N/A

N/A

Nominal Calibration

1310, 1550 nm

850, 1300 nm

650 nm

Dependence

1300 ~ 1625 nm:

< ±0.25 dB up to 15 dB

< ±0.5 dB up to 20 dB

850 ~ 1300 nm:

< ±0.5 dB up to 20 dB

N/A

Dependence over DWDM4

S/C/L band

1490 ~ 1610 nm:

< ±0.2 dB up to 15 dB

< ±0.3 dB up to 20 dB

N/A

N/A



General Specifications:

Parameters

Value

Operating / Storage

-15 to 55 °C / -25 to 70 °C

Relative Humidity

0 ~ 95%

Case

Polycarbonate, 1-meter drop tested

Dust cap

captive

Power

2 Alkaline C cells (7.6 A/Hour), or external 9~12 V DC with ID2.5mm(+ve)/OD5.5mm plug, selectable auto-off, low battery indicator

Battery life

200 ~ 600 hours

Size

190 x 130 x 70 mm

Weight

520 gm
