3ID Three Phase Cable Identifier

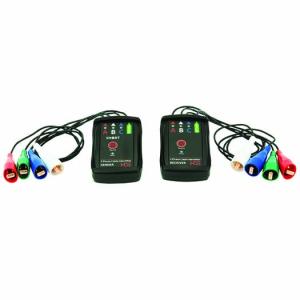

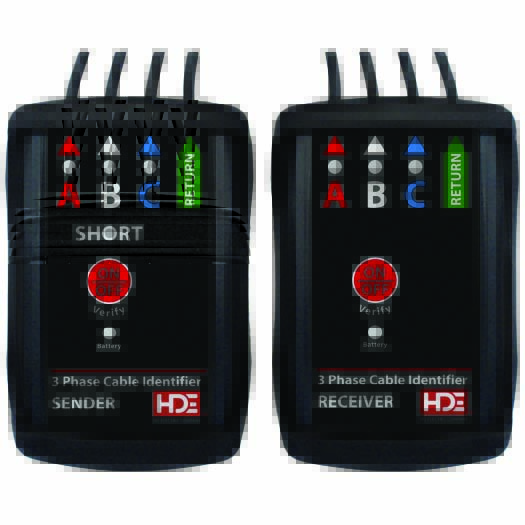

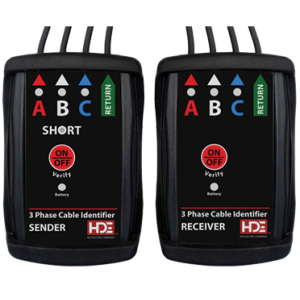

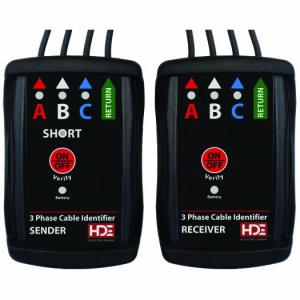

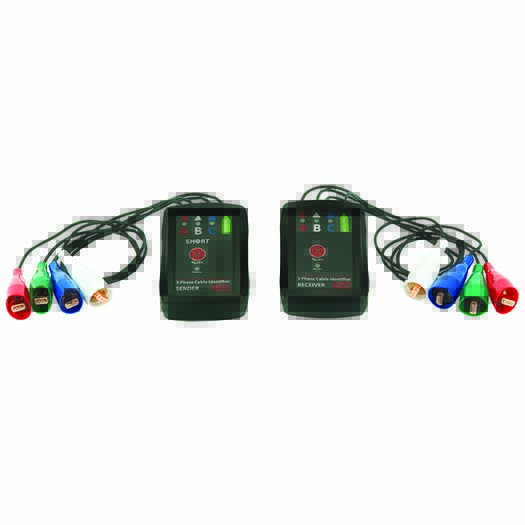

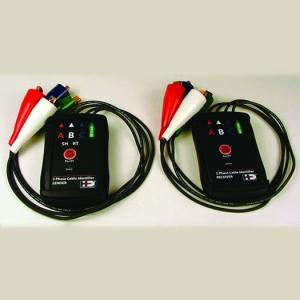

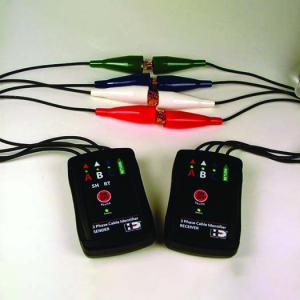

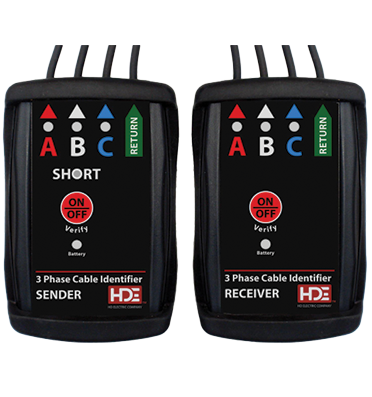

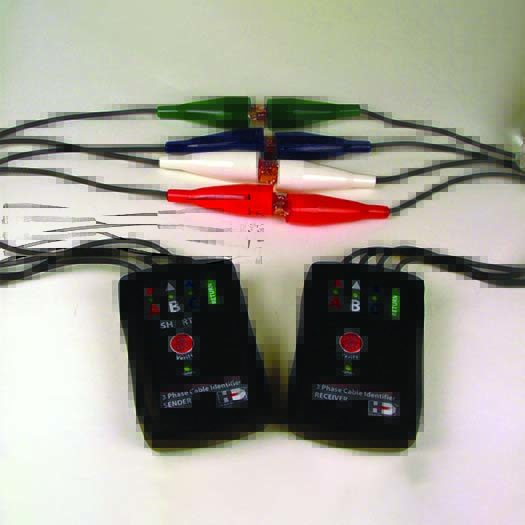

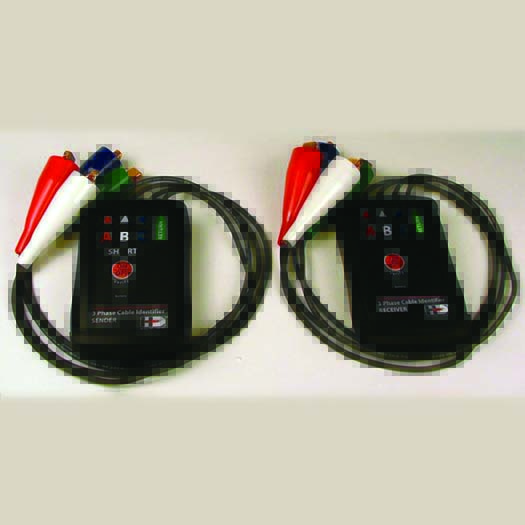

The 3ID Three Phase Cable Identifier is a trusted and indispensable solution for precisely identifying phases within extended lengths of de-energized and discharged overhead and underground cables. This comprehensive tool comprises both a sender and receiver, purposefully designed for effortless handling, even when wearing gloves. With individual lights to clearly indicate each phase or any phase conductors shorted to neutral, this device ensures swift and accurate identification, streamlining cable management and maintenance processes with utmost reliability.

The 3ID Three Phase Cable Identifier is well-suited for testing lengthy cable runs. LED indicators on both units confirm the proper connection to the same.

The package includes a convenient zippered carrying bag, making it easy to transport and store. It operates on a 9V lithium or alkaline battery in each unit, ensuring long-lasting performance and dependability.

Especially useful for installations such as mining cables, where phases are unknown.

Request Quote

Features

Identifies matching phases on long de-energized and discharged conductors.
Identifies all three cable phases simultaneously and any shorted phases.
36VDC test voltage enables identification of up to 7-mile-long conductors.
Compact, lightweight and easy-to-use solution.
Use in overhead or underground systems.
Super bright LED indicators.
Large copper alligator clips with heavy duty boots.
Low battery indicator.
No visual phase rotation.

Specification

Display	3.5 digits, LCD
Maximum Amperes	1999
Minimum Amperes	0.1
Overload	Above 1999, display indicates 1
Display Response Time	3 seconds to full scale
Accuracy	3% of reading ± 1%
Temperature Range	0ºF-122ºF (-18ºC-50ºC)
Operating Humidity Range	80% RH at 120ºC
Maximum Voltage	69 kVAC (phase-to-phase)
Power Supply	Replaceable 9V DC alkaline battery with 40+ hours of continuous operation
Control Panel	membrane type, tactile response
Dimension	28" long (71 cm)
Dimension Core Opening	2.3" wide X 3.7" deep with conductor centering design (5.8 cmX 9.4 cm)
Weight	2 lbs. 13 oz. (1.28kg)
