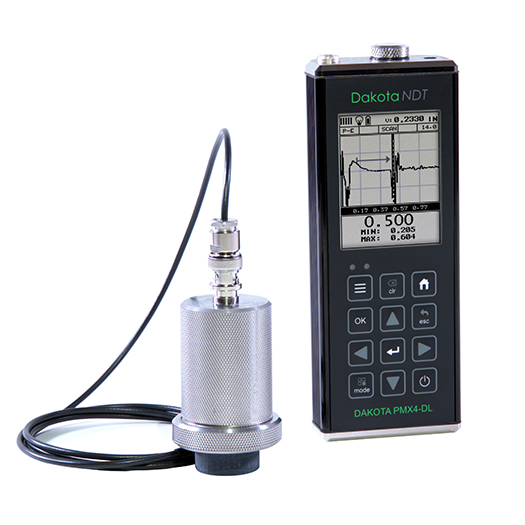

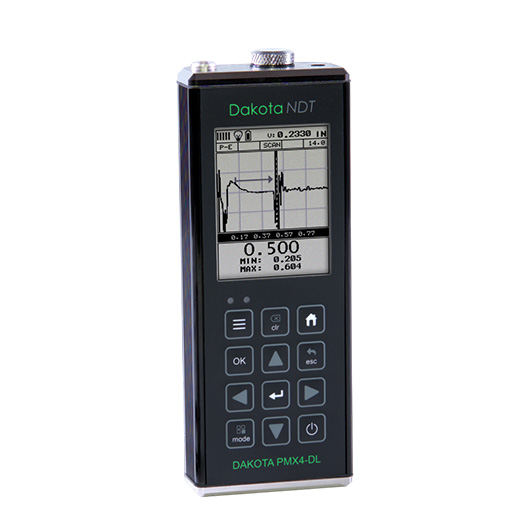

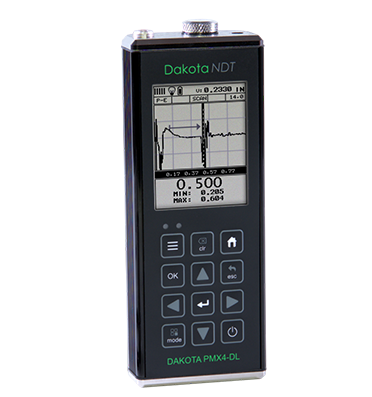

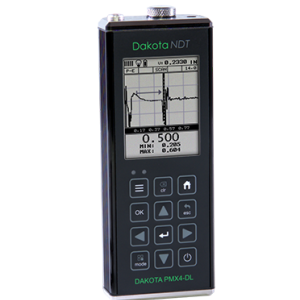

The PMX4-DL High Penetration Thickness Gauge is a powerful ultrasonic measurement solution specifically engineered for materials that are difficult to penetrate due to inconsistent grain structures, varying densities, or excessive thickness. Designed with advanced high-voltage pulser technology and optimized low-frequency filtering, the PMX4-DL delivers reliable and accurate thickness measurements across challenging materials and demanding industrial environments.
Built for versatility and precision, the PMX4-DL supports multiple ultrasonic measurement modes including Pulse-Echo, Echo-Echo, and Echo-Echo Verify, enabling accurate inspections on coated and uncoated materials. Its adjustable 200V spike pulser, 400V square wave pulser, and tone burst technology provide exceptional penetration performance for low-frequency transducers ranging from 500kHz to 10MHz.
The device is ideal for inspecting materials such as fiberglass, carbon fiber, cast metals, HDPE, FRP, rubber, lead, steel, and aluminum, making it highly effective for applications including storage tanks, aerospace composites, pipes, boat hulls, conveyor belts, and composite plastics.
Equipped with a high-resolution VGA grayscale display, advanced A-Scan and B-Scan visualization modes, onboard data logging, USB-C connectivity, and customizable user setups, the PMX4-DL enables technicians to perform faster inspections, improve measurement reliability, and streamline reporting workflows. Its rugged aluminum body, long battery life, and portable design make it suitable for both field and industrial inspection environments.
By combining deep penetration capability, intelligent signal processing, and advanced ultrasonic analysis features, the PMX4-DL helps professionals confidently inspect complex materials while reducing downtime and improving operational efficiency.

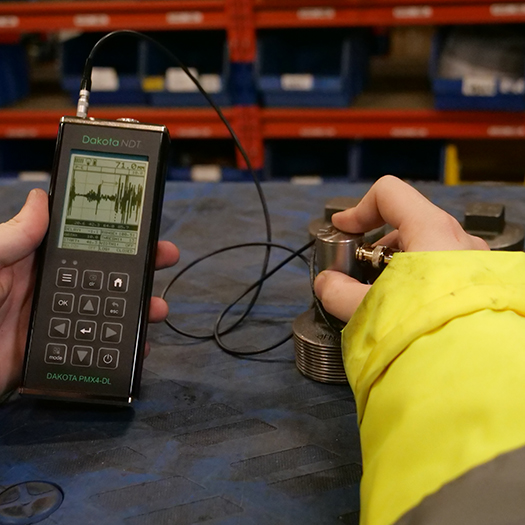

Applications:

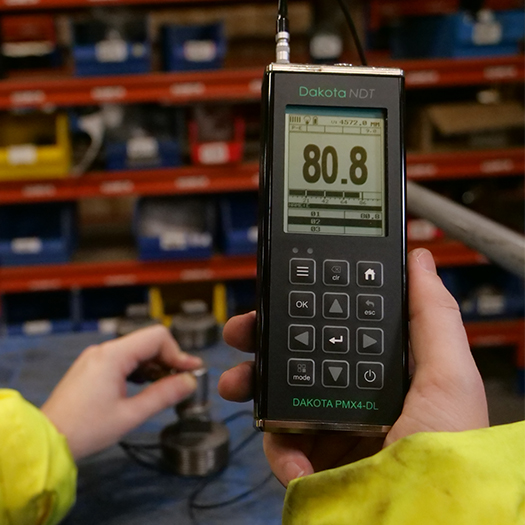

| Parameter | Details |
|---|---|
| Measurement Modes | Pulse-Echo (P-E), Echo-Echo (E-E), Echo-Echo Verify (E-EV) |
| Pulser | 200V Adjustable Spike, 400V Adjustable Square Wave, 400V Adjustable Tone Burst |
| Frequency Range | 500kHz – 10MHz |
| Gain Control | Manual / AGC with 110dB range |
| Adjustable Damping | 50, 75, 100, 300, 600 & 1500 ohms |
| Timing | Precision TCXO timing with 100MHz 8-bit ultra low power digitizer |
| Display | VGA grayscale display (240 × 160 pixels) |
| Display Modes | A-Scan, B-Scan, Large Digits, Scan Bar, Bar Graph |
| Measurement Range (Steel) | Pulse-Echo: 0.050 in – 100 ft |
| Measurement Range (Composites) | 0.100 in – 5.00 in |
| Echo-Echo Contact | 0.100 – 3.0 ft |
| Echo-Echo Verify Contact | 0.100 – 6.0 in |
| Resolution | ±0.01 in / ±0.001 in selectable |
| Velocity Range | 0.0122 – 0.7300 in/μs |
| Calibration Options | Single-point & two-point calibration |
| Units | English & Metric |
| Memory Capacity | 4GB Internal Memory |
| Screen Capture | Bitmap graphic capture (.tif) |
| Setups | 64 User-defined setups |
| Gates | 3 Adjustable gates |
| Alarm Mode | Hi/Lo tolerance with audible beeper & LEDs |
| Scan Mode | 250 readings/sec |
| Connectivity | USB-C PC Connectivity |
| Transducer Connector | LEMO “00” |

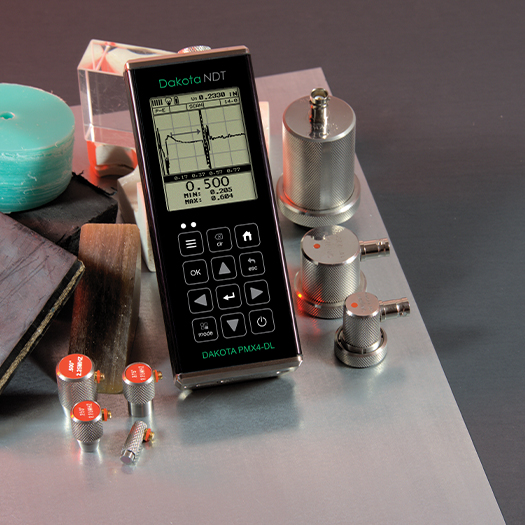

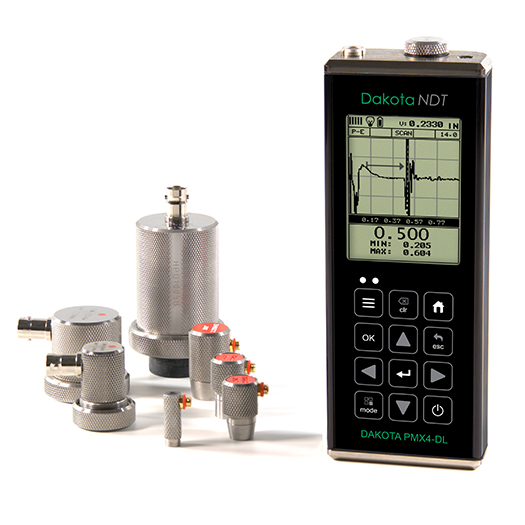

| Transducer Types | Single Contact (1–10MHz), Custom 500kHz Delay Line |
| Power Source | USB-C or 3 × AA batteries |
| Battery Life | Up to 35 hrs (alkaline / Ni-MH) |
| Auto Power Off | After 5 minutes idle |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 165 × 63.5 × 31.5 mm |
| Weight | 13.5 oz |
| Housing | Extruded aluminum, gasket sealed |
| Data Output | USB-C, Windows PC interface software |
| Certification | NIST & MILSTD-45662A traceable |
| Warranty | 2 Years Limited |
The PMX4-DL is used for ultrasonic thickness measurement on difficult-to-penetrate materials such as composites, fiberglass, HDPE, and cast metals.
It supports fiberglass, carbon fiber, FRP, HDPE, rubber, steel, aluminum, lead, and composite plastics.
The device supports transducers from 500kHz to 10MHz.
Yes, it includes advanced A-Scan and B-Scan visualization modes for detailed analysis.
The PMX4-DL can measure steel thickness up to 100 feet (30.5m) depending on material consistency.
Yes, it includes 4GB internal memory with bitmap screen capture capability.
Yes, its rugged aluminum housing, long battery life, and portable design make it ideal for industrial field inspections.
