S2106 Optical Time Domain Reflectometer

S2106 OTDR

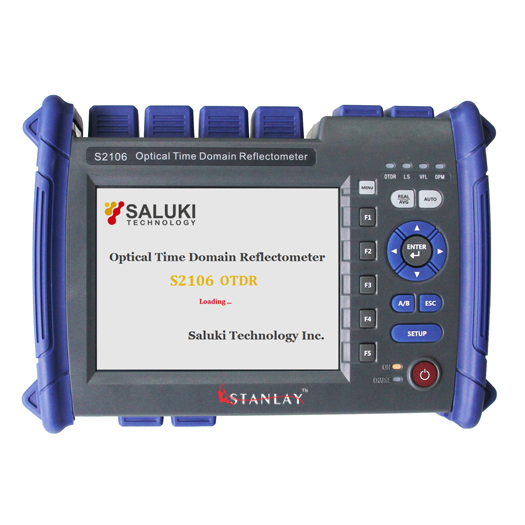

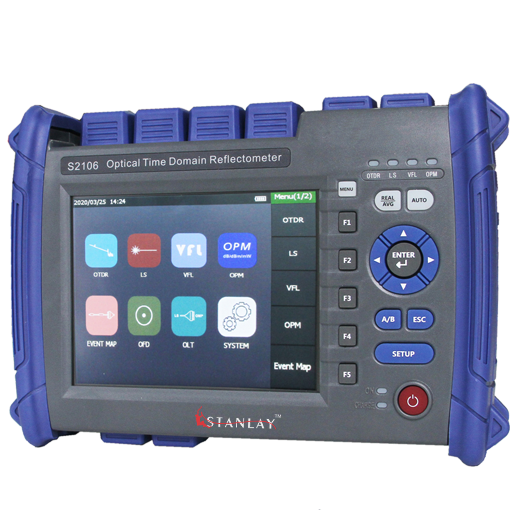

S2106 OTDR is a touch screen tablet style OTDR equipped with a range resolution up to 0.05m and an ultra-short event blind zone of 0.8m. The 5.6 color touch screen display, 20hr standby time and multi-functionality feature equip the fiber technician to do his work efficiently.

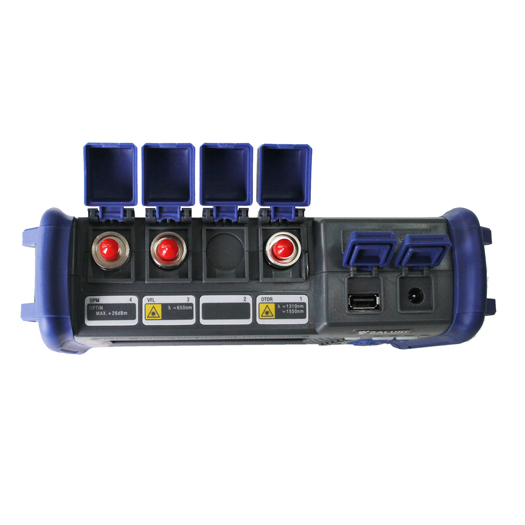

S2106 has 5 standard function modules- OTDR, Light Source (LS), Optical Power Meter (OPM), Visual Fault Locator (VFL), Intelligent Optical Link Mapping (iOLM) and 2 Optional modules - Optical Fiber End Face Detection (OFD) & Optical Loss Test (OLT)

Module options are equipped for Singlemode and Multimode- ranging up to a dynamic range of 45 dB according to user requirement. With multi-wavelength simultaneous testing and one-button automatic testing and test analysis- this instrument enables the technician to understand cable condition with no effort.

Features

2 Optional modules - Optical Fiber End Face Detection (OFD) & Optical Loss Test (OLT)
5 standard function modules- OTDR, Light Source (LS), Optical Power Meter (OPM), Visual Fault Locator (VFL), Intelligent Optical Link Mapping (iOLM)
One-button automatic test and real-time test, Multi-wavelength simultaneous testing

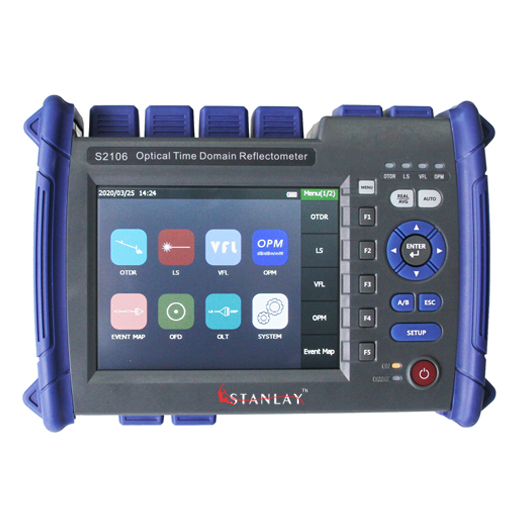

5.6" color touch-screen display. Dual operation mode- Touch screen or touch button

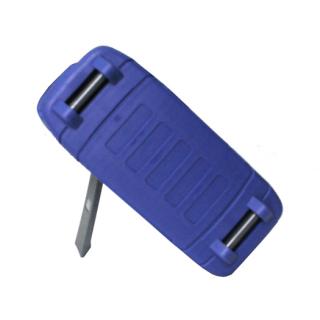

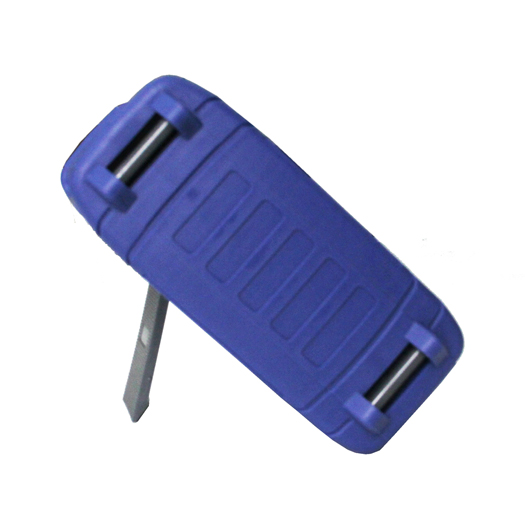

Rugged IP65 protection level, water & dust proof, 1.5m drop tested
Unique self-diagnosis function on test results
Automatic & manual setting, Automatic data storage

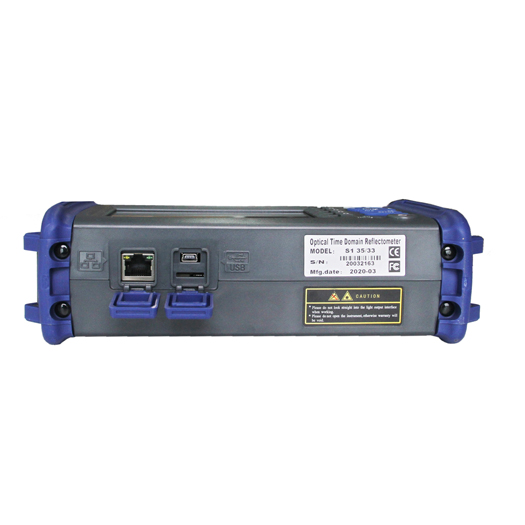

Ethernet remote control function, 2 USB Interface for external communication

Specification

OTDR
OTDR Model	S2106-S1	S2106-S2	S2106-S3	S2106-S4	S2106-M1	S2106-SM1
Fiber Type	Singlemode				Multimode	MM+SM
Dynamic Range (dB)	35/33	38/36	42/40	45/43	28/26	28/26/35/33
Wavelength (nm)	1310/1550				850/1300	850/1300/ 1310/1550
Event Blind Zone (m)	1	0.8	0.8	0.8	1	1
Attenuation Blind Zone (m)	6
Measuring Accuracy	±(0.75m + Sampling interval + 0.005% x test distance) (Refractive error are not included)
Distance Range (km)	0.5/1/2/4/8/16/32/64/128/256
Pulse Widths (ns)	3/5/10/30/50/80/160/320/500/800/1000/3000/5000/8000/10000/20000
Loss Threshold (dB)	0.01
Loss Accuracy (dB)	±0.05
Loss Resolution (dB)	0.001
Sample Resolution (m)	0.05 - 16
Sampling Points	16k - 256k
Reflection Accuracy (dB)	±3
Standard VFL Output Power (mW)	≥5 ( Customized ≥10)
OPM
Wavelength Range (nm)	800 - 1700
Connector	FC/SC/ST
Measurement Range (dBm)	-50 to +26
Uncertainty (%)	±5
Resolution (dB)	≤0.01
Display Unit	dB, dBm
Calibration Wavelength (nm)	850/980/1300/1310/1490/1550/1625/1650
OLS
Laser Source	FP-LD
Wavelength (nm)	Consistent with OTDR output wavelength
Output Power (dBm)	≥-5
Stability	CW, ±0.5dB/15min
Connector	FC/UPC (optional SC, ST)
VFL
Wavelength (nm)	650 ±20
Standard Output Power (mW)	≥5 (Customized ≥ 10)
Mode	CW/1Hz/2Hz
Connector	FC/UPC (optional SC, ST)
Output File Format	SOR (standard format), PDF (analysis software)
Data Storage	Internal: 100M (≤3000 curves), External: 4GB
Data Interface	USB, Mini USB, 10M/100M Ethernet
Display	5.6” color LCD touch screen
Size / Weight	227mm160mm70mm / ≤1.2kg
Battery	7.4V/5200mAh L-ion Battery, Max 20hr standby
Power Supply	AC/DC Adaptor 100V-240V, 50/60Hz, 0.6A
Operation Temperature/ Humidity	-10 to +50 ⁰ C/ 0-95%
