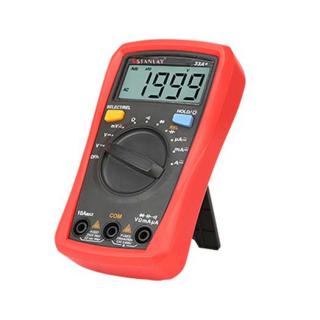

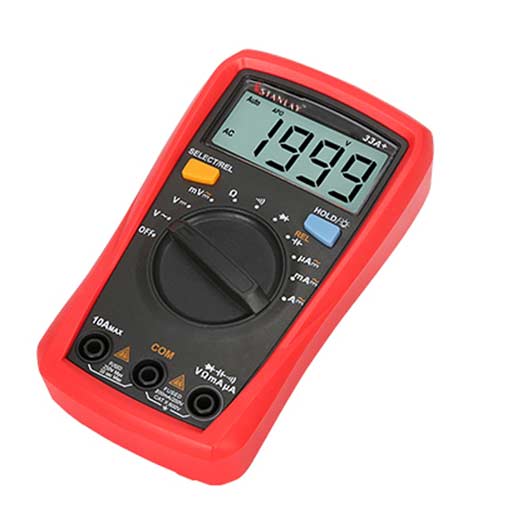

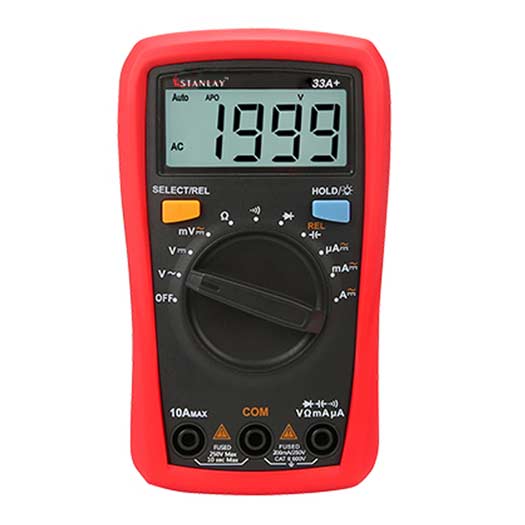

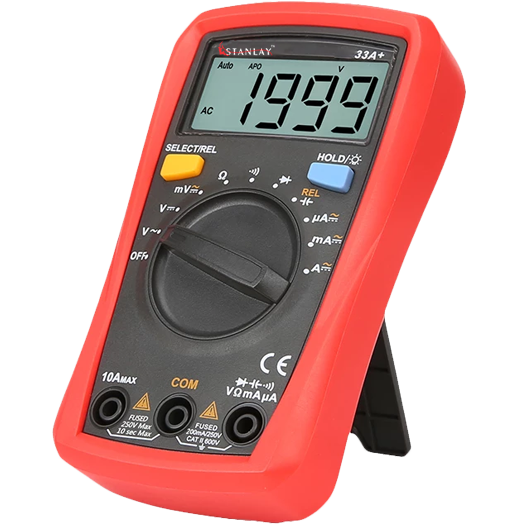

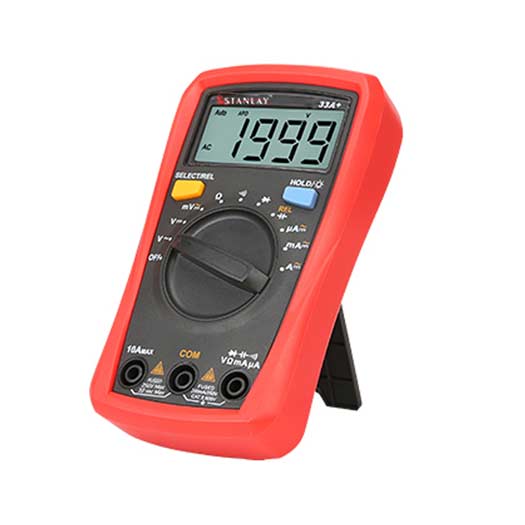

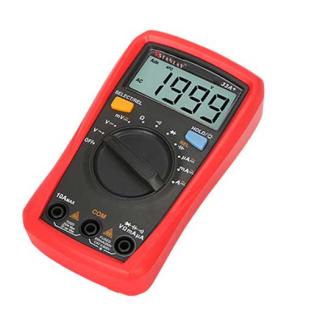

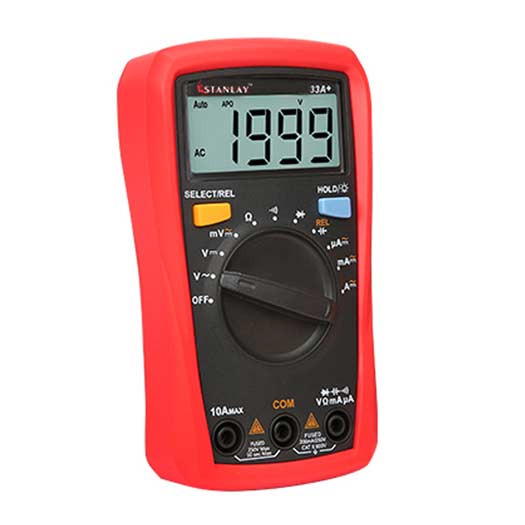

33A+ Palm Size Digital Multimeter

The new generation 33A+ Palm Size Digital Multimeter belong to economy series defines the performance standards for entry-level digital multimeters. The 33A+ multimeters industrial design can withstand 2 meters drop. Unique features are 2mF capacitance test.

Specifications
Product Specification

Model Selection

33A+

Range selection

Auto

Display count

2000

Measurements

DC Voltage

200mV/2V/20V/200V/600V

Accuracy

±(0.5%＋2)

AC Voltage

200mV/2V/20V/200V/600V

Accuracy

± (0.7%+3)

DC Current

200μA/2000μA/20mA/200mA/2A/10A

Accuracy

±(1%+2)

AC Current

200μA/2000μA/20mA/200mA/2A/10A

Accuracy

±(1.2%+3)

Resistance

200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ

Accuracy

±(0.8%+2)

Capacitance

2nF/20nF/200nF/2uF/20uF/200uF



Accuracy

±(4%+8)

Battery Test

-

Diode Test

√

Continuity Test

√

Display

Auto Power off

√

Auto Backlight off

√

Other Features

Buzzer

√

Drop test

2m

Test probe holder

√

Category Safety Ratings

CAT II 600V

General Characteristics

Weight

206g

Size

134mm x 77mm x 47mm

Power

1.5V battery (R03) x 2

Display

66mm x 51mm

Standard accessories

Batteries, test leads


Features
Features
  • Clear LCD display
  • Comfortable protective cover, with test lead hanging groove
  • 2 meters drop test, precision protection
  • Loud buzzer sound; Ergonomic design


Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
843.98 KB
October 25 2019 10:48:43
