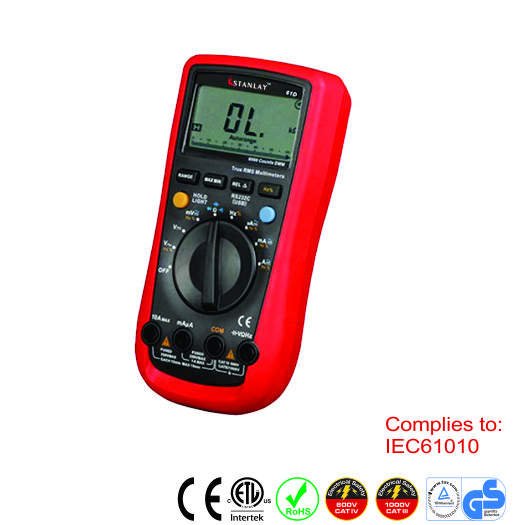

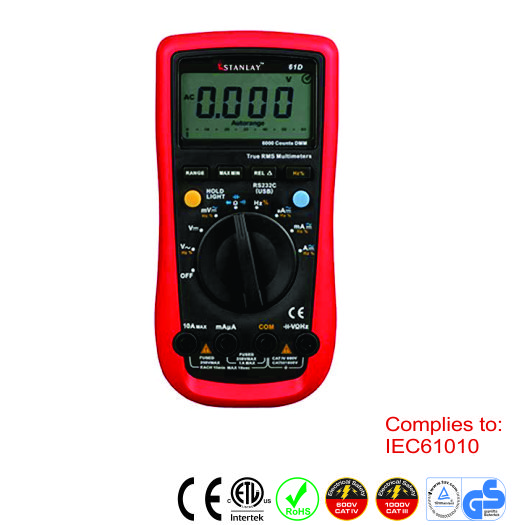

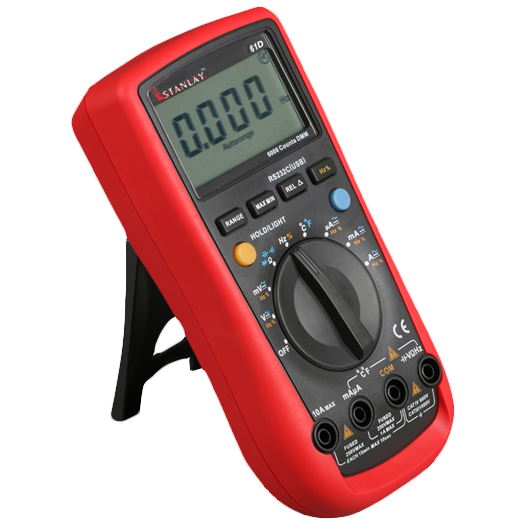

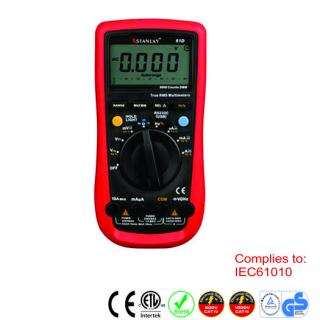

61D True RMS Digital Multimeter

Professional Digital Multimeter providing True RMS measurements ACV, DCV, Current measurement including ACA, DCA, Resistance & capacitance measurement capability, frequency up to 220Hz.  Backlit display.

Specifications
Product Specification

Model Selection

61D

Auto Range

√

True RMS

Yes

Display Count

6000

Analogue bar graph

61 segments

Bandwidth

45Hz-3kHz

Measurements

DC Voltage

600mV/600mV/6V/60V/600V/1000V

Accuracy

± (0.5% + 1)

AC Voltage

60mV/600mV/6V/60V/600V/750V

Accuracy

± (1.0%+3)

DC Current

600μA/6000μA/60mA/600mA/6A/10A





Accuracy

± (1.0%+3)

AC Current

600μA/6000μA/60mA/600mA/6A/10A



Accuracy

± (1.2%+5)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Accuracy

± (1%+2)

Capacitance

40nF/400nF/4μF/40μF/400μF/4000μF



Accuracy

± (3%+5)

Frequency

10Hz-10MHz ± (0.1%+4)

Duty Cycle

0.1% ～ 99.9%

Diode Test

√

Continuity Buzzer

√

NCV

-

Transistor Test

-

Data/Transmission

RS-232 / USB

√

Display

Max/Min

√

Relative Mode

√

Peak Hold

-

Analog Bar

√

Data Hold

√

LCD Backlight

√

Other Features

Input Impedance

≥10MΩ

Category Safety Ratings

CAT III 1000V CAT IV 600V

General Characteristics

Size

180mm* 87mm*47mm

Weight

370g

Power

9V battery (6F22)

Display

65mm x 43mm

Standard Accessories


Battery, test leads, multi-purpose socket, RS-232 interface cable, PC software CD
Features
Features
  • MAX/MIN/REL modes
  • Auto power off
  • RS-232 / USB interface
  • Analog bar graph
  • True RMS
  • Range: Auto or Manual


FAQ
FAQ
Frequently Asked Questions (4 answered questions)

Yes, the model 61D is a True RMS Digital Multimeter

Person name: Asian

6000

Person name: Asian

CAT III 1000V CAT IV 600V

Person name: Asian

RS-232 / USB interface

Person name: Asian



Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
Product Datasheet
application/pdf
720.49 KB
March 23 2021 18:39:23
