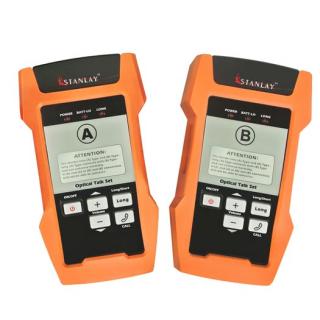

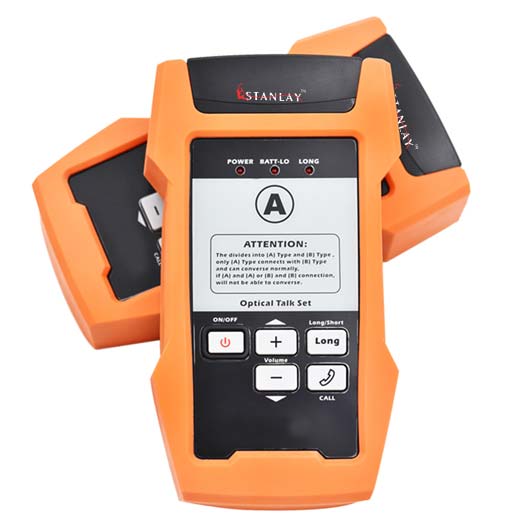

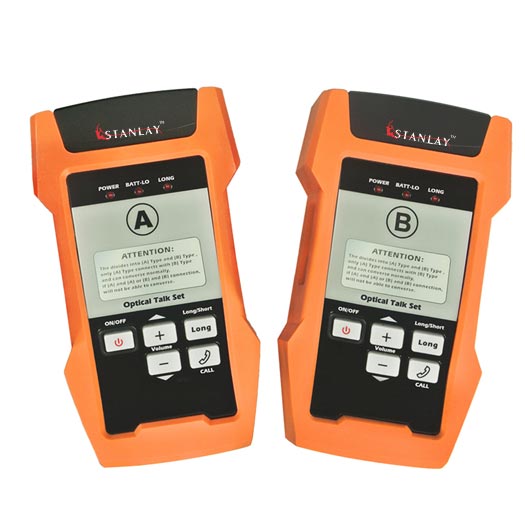

AOT600 Optical Talk Set

Singal mode talk set

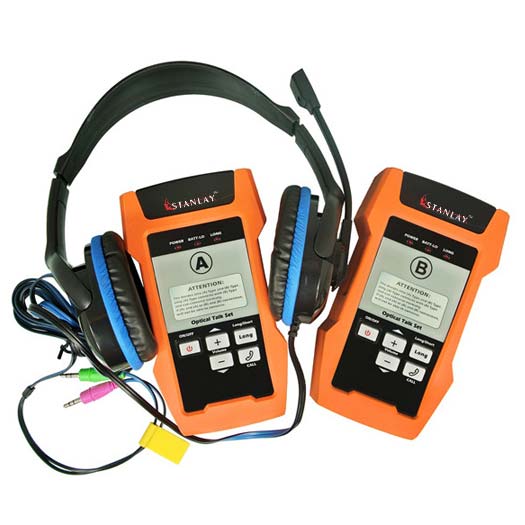

AOT600 Optical talk set allows Full-duplex communication in single fiber by using WDM (wavelength division multiplex) Technology. Optical Talk Set AOT600 is designed to allow technicians keep communication via headset during optic fber installation and maintenance via fber optic cable. Provided as a PAIR.

Specifications
Product Specification

Communication

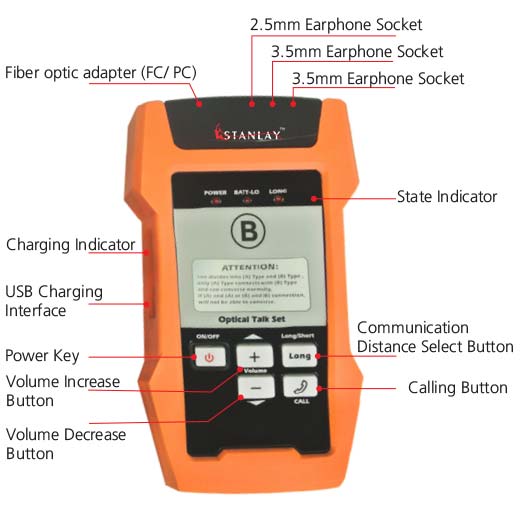

Touch button for call setting and communication distance

Wavelength (nm)

Device A: 1310nm ± 20nm ; Device B: 1550nm ± 20nm

Operating Style

Full duplex communication

Output Power

> -5dBm

Fiber Type

Single Mode (SM)

Dynamic Range

SM fiber: 45dB

Range

Option 1: Upto 60kms ; Option 2: SM fiber: Upto 120kms

Connecting Adaptor

FC/ PC

Battery Charge

Through AC/DC adaptor or through USB

Earphone Socket

2.5mm/ 3.5mm

Volume

Increase/ Decrease

Battery Life

Above 12 hrs

Power Supply

AA rechargeable battery & charger

Size (mm)

170 x 97 x 38

Weight (g)

About 380

Storage/ Operating Temperature/

Relative Humidity

-20°C to +60°C/ -10°C to +50°C/ < 90%RH
