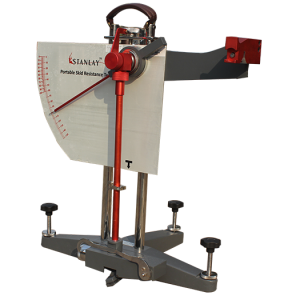

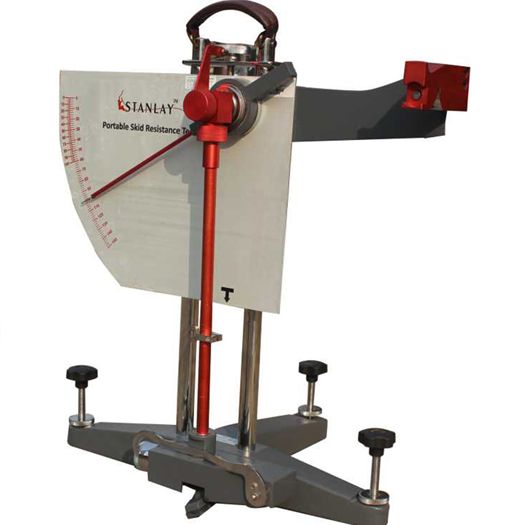

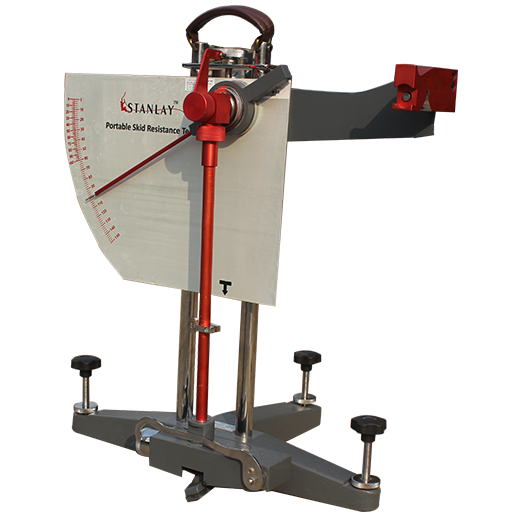

Portable Skid Resistance and Friction Tester

Portable Skid Resistance Tester

The Portable Skid Resistance and Friction Tester is a direct reading instrument that provides the measure of friction between a skidding tire and wet road/ runway surface. It also determines the friction of asphalt and flooring materials.

The Instrument facilitates a road or runway engineer, based on numerical scientific results, information on whether a measure needs to be taken to reduce skidding. The Portable Skid Resistance Tester has been used all over the world for many years and is probably the most convenient equipment to check skid resistance.

The equipment is based on EN 13036-4 standard & conforms to BS EN1097-8:2000, ASTM E303-93, and AS/NZS 4586:1999. It is very compact and can easily be transported in any remote location. It has heavy duty frame construction with adjustable feet on base, and a slider lifting device for height adjustment. The equipment is provided with additional incorporated scale for test on PSV specimen.



Contact us for best quality British Pendulum Skid Resistance Tester price in India

Specifications
Product Specification
Dimensions
Hardness BS ISO 48:2010 55 ± 5, and 96 ± 5
Resilience Lupke Rebound Test BS ISO 4662:2009
Temperature °C 0 10 20 30 40
Resilience % 43 to 49 58 to 65 66 to 73 71 to 77 74 to 79

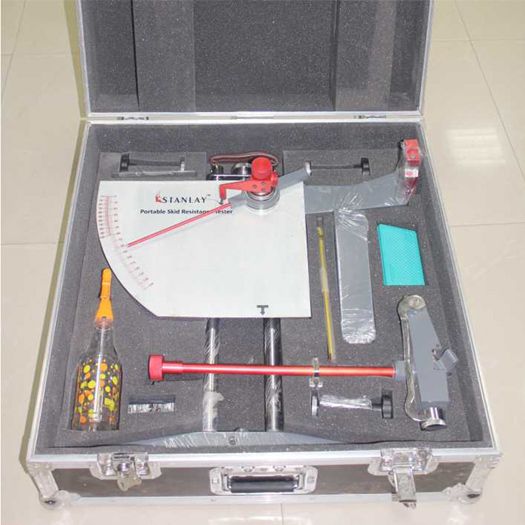

Product supply includes: Portable skid resistance tester, (adjustable in height with pendulum and scale), large mounted rubber sliders (3 pcs of HRC 55, and 3pcs of HRC 96), Perspex setting gauge, tools, thermometer -10° C to +50° C (14°F to 122°F), water bottle and instruction manual.

Video
Video
Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
126.75 KB
May 27 2019 14:22:52
Related Articles
Related Articles
Stanlay British Pendulum Skid Resistance Tester for surface friction testing on asphalt and Flooring surfaces
The Stanlay Portable Skid Resistance Tester is utilised worldwide to determine the frictional resistance of roads, road markings and flooring material. Based on the iZod principle, the skid resistance tester provides an indication of the skid resistance value on the graduated engraved scale which corresponds to the coefficient of friction x 100. The instrument is necessary for utilisation at design stage, during maintenance & for investigation at time of accidents. Slips, falls and accidents by skidding happen where there is too little friction or traction. In order to prevent the accidents and slips on floor, the level of slip resistance of Tiles and pavement needs to be tested. Stanlay Portable Skid Resistance Tester is a direct reading instrument that provides the measure of the friction between a skidding tyre and wet road surface.   Stanlay Portable Skid resistance tester is designed in conformance to ASTM E303 Standard and IRC ...
