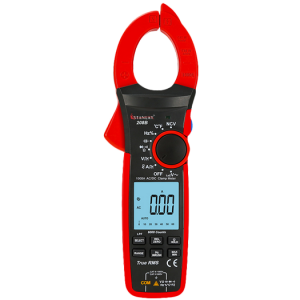

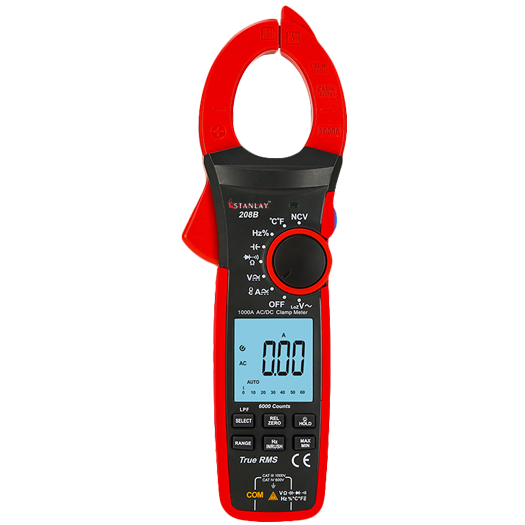

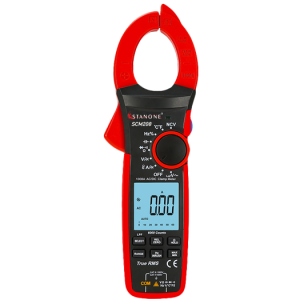

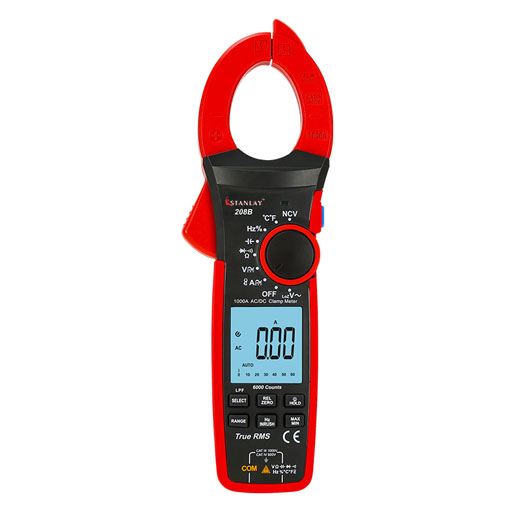

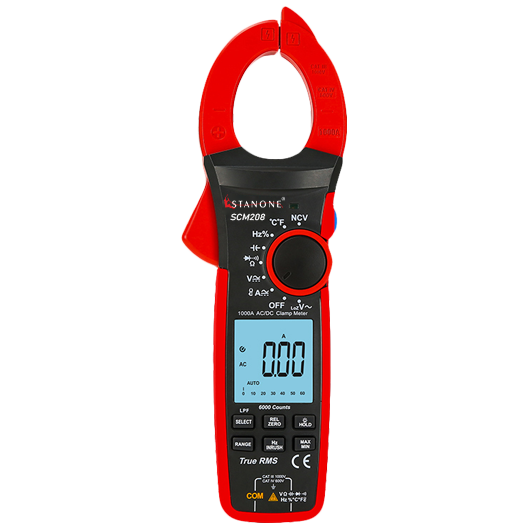

1000A True RMS Digital High Performance Clamp meter SCM208

STANONE SCM208 1000A True RMS Digital High Performance Clamp meter

The STANONE 200 series are True RMS high performance 6000-count digital clamp meters with auto range, with a large LCD display, auto-scale memory, and NCV functions. Conforming to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL, the SCM208 clamp meter LoZ mode eliminates ‘ghost’ voltage.

In addition, the clamp tester provides low pass filter (LPF) ACV function for measuring INV and VFD voltage and inrush current mode for capturing transient current.

The SCM208 true rms clamp meter features high-precision temperature measurement with 0.1°C resolution.

The SCM208 clamp multimeter can be optionally equipped with an external flexible current probe to extend the AC current measurement range to 3000A. Choose CS09 External Flexible Current Probe additionally with SCM208 if you need extended measurement range upto 3000 Amps AC.

SCM208 Clamp meter is used for measuring high-level current in industrial controls, industrial equipment, commercial, industrial, residential electrical systems & HVAC.

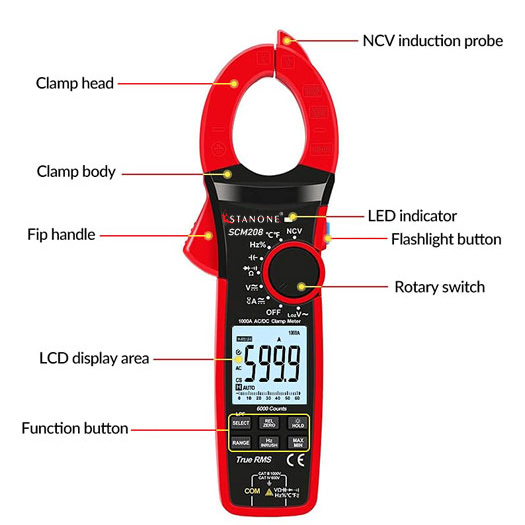

Features

True RMS
Inrush current capture
Non-contact voltage (NCV) detection (audible/ visual alarm)
LoZ ACV
LPF ACV/ACV+ DCV/ Transistor hFE
Built in flashlight (On/Off), use in dark spaces.
CAT IV 600V / CAT III 1000V safety rating
Peak Hold
Optionally use flexible CT for measuring upto 3000A

Specification

Auto Range	√
True RMS	√
Display Count	6000
Jaw Size	42mm
Measurement	Range	Accuracy
AC current (A)	1000A	±(2%+5)
DC current (A)	1000A	±(2%+5)
Inrush current (A)	1000A	±(10%+10)
AC voltage (V)	6V	±(1.2%+3)
AC voltage (V)	60V/600V/1000V	±(1%+8)
DC voltage (V)	600mV	±(0.8%+3)
	6V/60V	±(0.5%+5)
	600V	±(0.5%+5)
	1000V	±(0.5%+5)
Low pas ﬁlter (LPF ACV)	600V/1000V	±(2%+5)
AC voltage frequency response		40Hz~400Hz
LoZ ACV	600V/1000V	±(2%+5)
Resistance (Ω)	600Ω	±(1%+3)
	6KΩ/60KΩ/600KΩ	±(1%+2)
	6MΩ/60MΩ	±(2%+8)
Capacitance (F)	60nF	±(4%+25)
	600nF/6µF/60µF/600µF	±(4%+5)
	6mF/60mF	±(10%+9)
Temperature (°C)	-40°C~300°C	±(1%+20)
Temperature (°C)	300°C~1000°C	±(1%+2)
Low voltage frequency (Hz)	10Hz~1MHz	±(0.1%+3)
Duty cycle (%)	10%~90%	±(2.6%+7)
Other Features
Current frequency		50/60Hz
Analog bar		31
Auto power off/Continuity test		√
Relative mode/Data hold/MAX/MIN		√
Function selection/Flashlight		√
Wake-up function		√
Auto power off current: <50µA		√
Flexible current probe (optional)	Extends to 3000A	√
Zero mode		√
Input impedance (ACV/DCV)	≥10MΩ	≥10MΩ
Category Safety Ratings	CAT III 1000V/CAT IV 600V
General Characteristics
Power	1.5V battery AAA x 3
Display	43mm x 45mm
Product net weight	420g
Product size	272mm x 81mm x 43.5mm

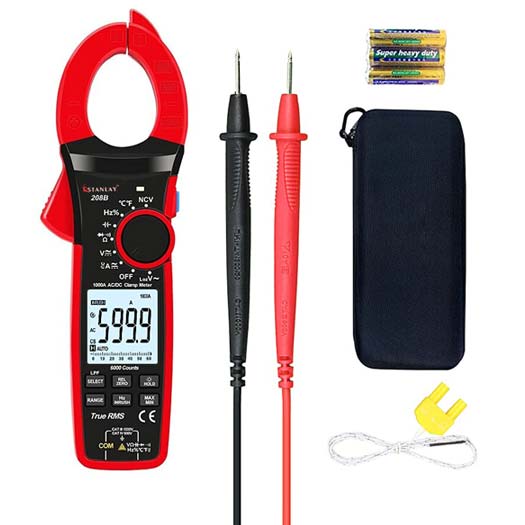

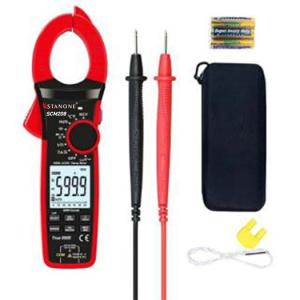

Standard accessories	Test leads, battery, point contact temperature probe

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the range of the SCM208 clamp meter?

It measures current upto 1000A AC/DC & with Flexible Clamp Sensor upto 3000A.
Does it have NCV Feature?

Yes, It has bulit-in NCV feature.
Does it have Loz mode?

Yes, It has Loz mode to eliminate ghost voltage.
Does it also measure Inrush current?

Yes, The SCM222 clamp Meter also measures 1000A Inrush Current.
What is the size of Jaw?

The Jaw size is 42mm.

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	614.64 KB			May 11 2023 18:40:27
User Manual	application/pdf	7.9 MB			September 06 2023 17:42:17
