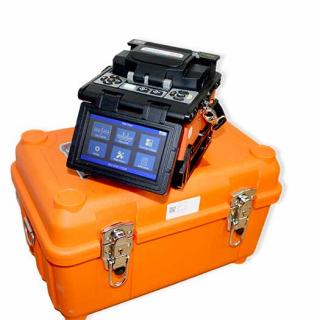

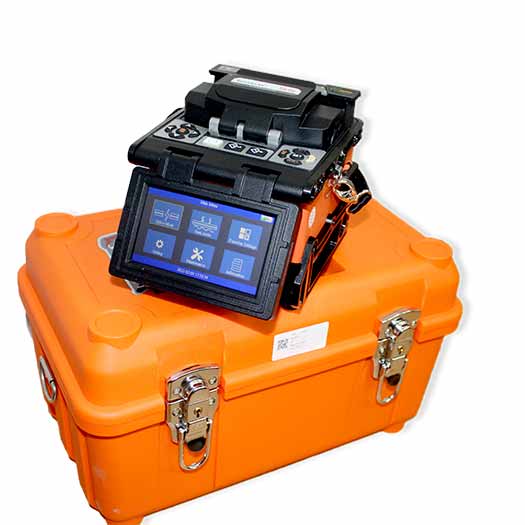

S5 Fusion Splicer

S5 Fusion Splicer is the latest generation Optical Fiber Splicing Machine for FTTX city fiber operations & maintenance activities, ensuring an All-in-one machine for the fiber contractor & technician, at an economical price point.

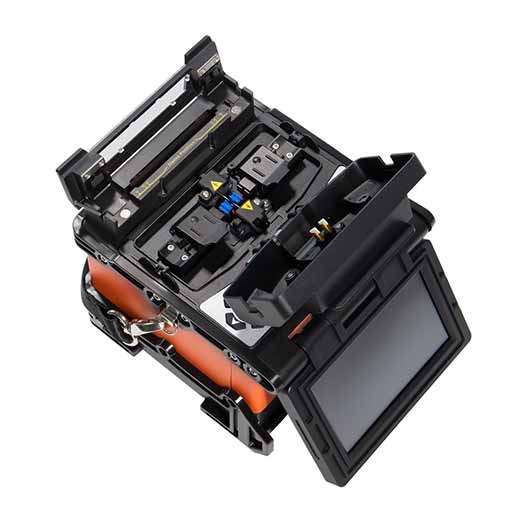

The S5 Splicing Machine is a ruggedized palm-sized fiber optic splicing machine allowing use on the pole, FTTB or FTTX application.

The Fusion splicing machine with built-in optical power meter & visual fault locator allows the operator to perform optical network testing without the need for additional instrumentation.

The fiber optic splicer offers core to core alignment & low fiber loss (0.01dB for Multimode & 0.02dB for single mode).

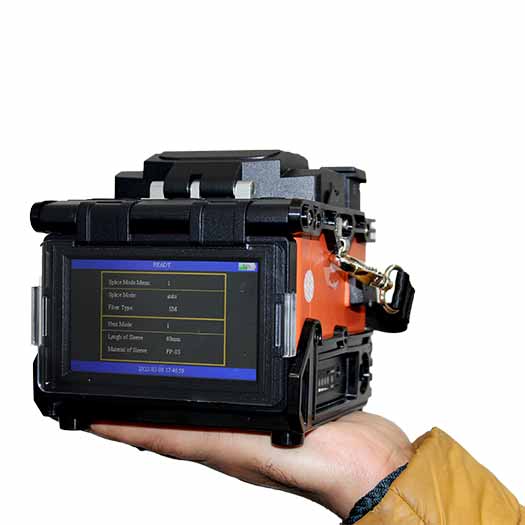

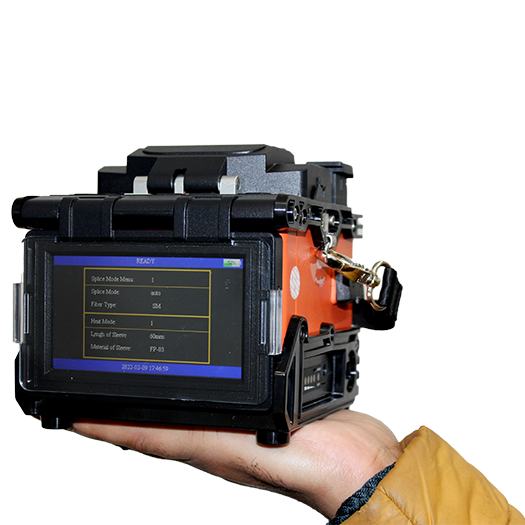

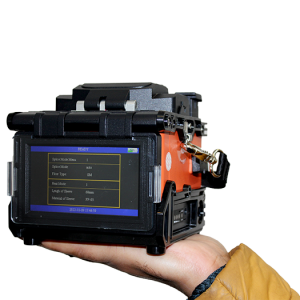

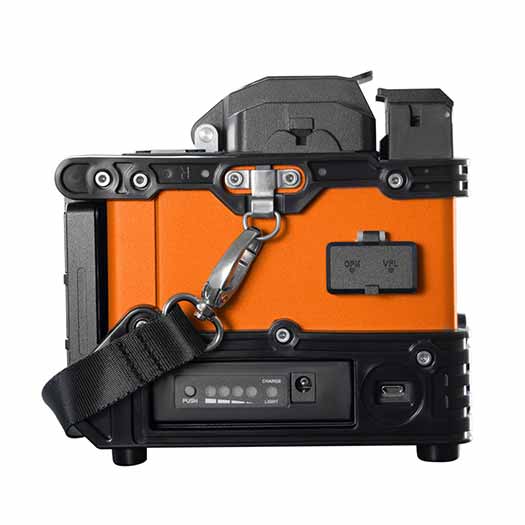

The Palm-sized light weight fusion splicer (only 1.7 kg) with neck harness provides an operator ease of use at poles & buildings for fiber splicing as well as transportation.

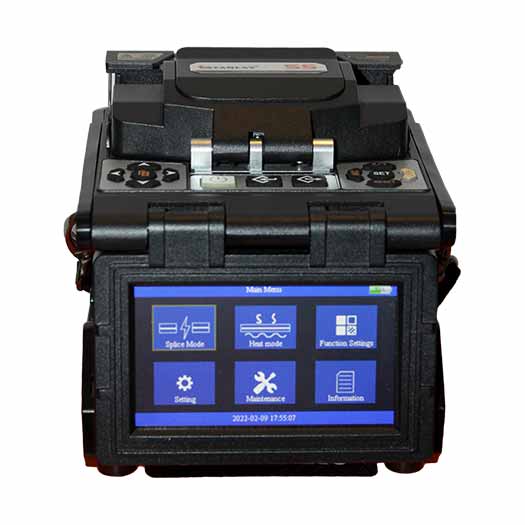

Integrated with 4.3 inch color touch screen display, The FTTX Fusion splicer offers long electrode life upto 3000 splicings.

Request Quote

Features

Core- Core alignment
Low Splice Loss
Long Battery Life (5200 mAH)
Palm Sized Light weight
4.3 Inch Color Touch Screen Display

Specification

Type	Single core
Applicable Fibers	SM, MM, DS, NZDS
Fiber Alignment Method	Core to Core Alignment
Splicing Mode	Auto & Manual & Half Auto
Average Splicing Loss	0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)
Motors	4
Splicing Time	Typical 9s
Heating Time	Typical 30s
Cleaving Length	8～16mm
Electrode Life (in Splicer)	Typical 3000
Tension Test	2N (STANDARD)
LCD	4.3 inch Touch Screen
Fiber Magnification	X/Y:150 times X or Y:300 times
Storage	8000 groups
Data Transfer	USB
Battery Capacity	Typical 300 cycles(splicing and heating)
Optical Power Meter	Built-in
Visual Fault locator	Built-in
Power Supply	5200mAh Li-ion battery
Environmental Conditions	-10~+50℃ (operation temperature),0~95% RH(humidity),0~5000(altitude)

FAQ

Do you have a question which we can answer for you? Click here if Yes

What is the screen size of S5?

4.3 inch Color Touch Screen Display
What is the weight of S5 fusion Splicer?

1.7 Kg
Does the equipment provide data storage?

Yes
What is the splicing loss of S5?

It has very low splicing loss- 0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)
What is the power supply S5 offers?

5200mAh Li-Ion battery offers long battery life.

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	2.47 MB			February 14 2022 13:31:00

S5 Fusion Splicer

S5 Fusion Splicer

What is the screen size of S5?

What is the weight of S5 fusion Splicer?

Does the equipment provide data storage?

What is the splicing loss of S5?

What is the power supply S5 offers?
