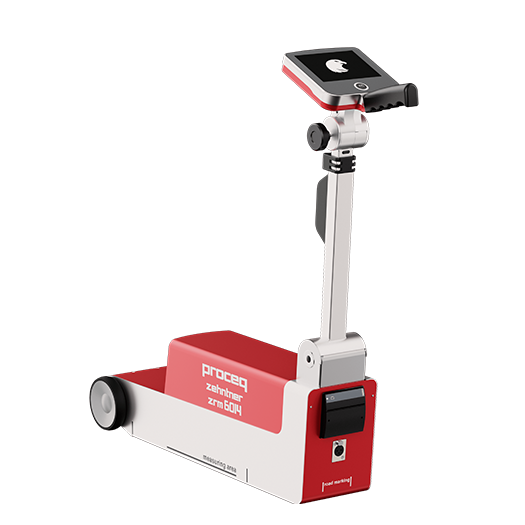

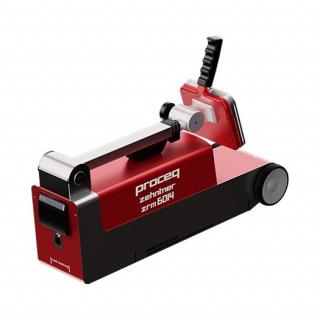

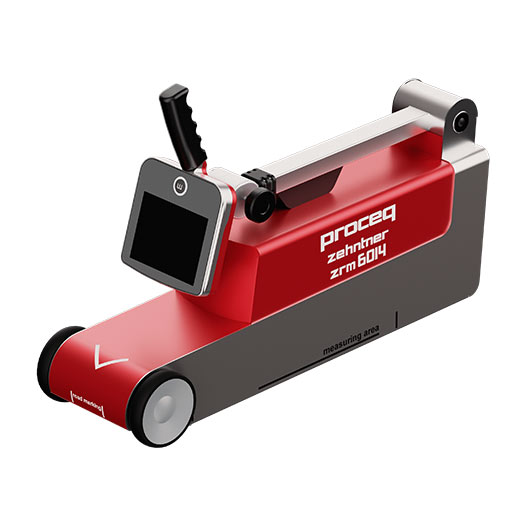

Zehntner ZRM 6014 RL-Qd is the most advanced Road Marking Retroreflectometer for day and night visibility measurement of road markings with retroreflectometry, to ensure safety of ensure road safety by directing & guiding drivers on the road, by ensuring visibility measurement.
Portable handheld top-class retroreflectometer for determination of night visibility (RL) and/or day visibility (Qd) for all types of road markings as well as ambient temperature (°C/°F) and relative humidity (RH %) combined in one compact instrument.
Enabled with 5.7” high resolution colour touchscreen, The retroreflectometer offers an excellent visibility under all light conditions.
ZRM 6014 RL-Qd also provides various add on technology options to customize the reflectometer to personal requirements such as integrated 5-megapixel camera, WAAS GPS-unit, compass and level-meter as well as integrated printer option.

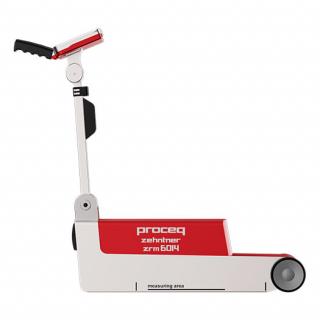

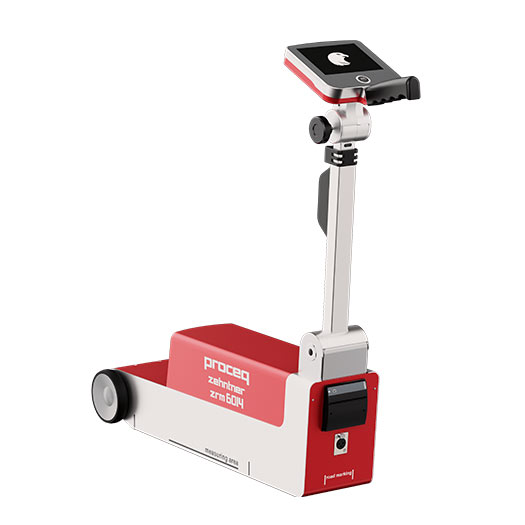

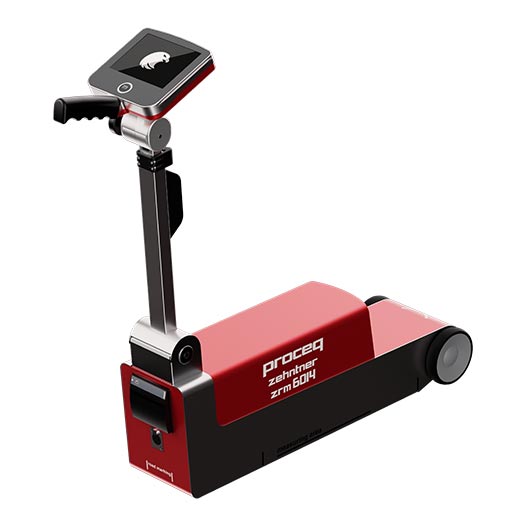

Fold-away telescopic handle and wheels included in the standard delivery of a retroreflectometer allows operator an easy field operation.
The portable retroreflectometer offers measurements with precise geolocation and high-resolution images. The user-friendly software makes comprehensive reports quickly and with ease.
Application Areas:
• For road authorities, manufacturers of road marking materials, contractors and consultants.
• For Determination of RL and Qd of all types of road marking paints, marking tapes, thermoplastic and cold plastic materials - whether smooth, textured, profiled, coloured, with or without aggregates / reflective beads
|
Equivalent Observation Distance |
30m |
|
Measurement Modes |
RL dry (night visibility) |
|
Measuring Sensor Adaption |
V(λ) |
|
Measuring Area |
(WxL): 52 mm x 218 mm (2.05" x 8.58") |
|
Measuring Range Profiled Markings |
up to 12 mm (0.5“) / bis 12 mm |
|
Measuring Range |
RL : 0 - 4’000 mcd•m-²•lx-¹ |
|
Measuring Accuracy |
Repeatability±2% |
|
Measuring Time RL/Qd Without Pictures |
≈2 s |
|
Measuring Time Single Without Picture |
≈1 s |
|
Observation Angle |
EN 1436 & ASTM E2302: 2.29° , ASTM E1710: 1.05° |
|
Illumination Angle |
RL : EN 1436: 1.24° |
|
Display |
Touchscreen 5.7“ colour TFT (LCD), LED backlight, VGA resolution |
|
Memory |
1 GB internal flash memory |
|
Interface |
Host USB (type A / Typ A), Client Mini USB (type B / Typ B) |
|
Battery |
Li-Ion-Mn 14.4 V / 6.5 Ah |
|
Material Housing |
anodised aluminium / Aluminium eloxiert |
|
Dimensions (LxWxH) |
658.5mm x190mm x 408.5mm |
|
Weight |
7.6 kg (16.76 lbs ) |
|
Operating Temperature |
-10°C to +50°C (14°F to 122°F) |
|
Standards |
EN 1436 (RL/Qd), ASTM E1710 (RL), ASTM E2302 (Qd), ASTM E2177 (RL wet / nass) |
|
Reporting Software |
Includes mapping and data analysis software MappingTools |
|
Supply Includes |
Retroreflectometer, mapping & data analysis software, calibration standard, battery & battery |
|
Technology Options |
Optional High-resolution Camera Optional compass and level-meter |
|
Warranty |
2 years |
Yes, It has 1 GB internal built-in flash memory to store data.
Repeatability±2%
Yes.
Yes, the equipment allow measurement in any weather condition; dry or wet.
It comes with 2 years warranty.
Retroreflection, also called night visibility, is a specific type of light reflection when the light rays goes on a surface and comes back to the source of light. This principle is a pillar in road safety. Indeed, the vehicles lamps during the night enable to see the road markings, road signs and conspicuity tapes. A retroreflectometer is used to measure the retroreflection performance of the surface. The retroreflection (often written “Râ€) is measured in mcd. m-2. lx-1.
Day visibility is the luminance coefficient under diffuse illumination (from the sun or urban lightning). This principle is important in road safety. Vehicles drivers must be able to see the road markings and signs . A retroreflectometer is used to measure the day visibility performance of the surface. The day visibility (written “Qdâ€) is measured in mcd. m-2. lx-1
The Zehntner ZRM 6014 RL-Qd is an advanced retroreflectometer designed for measuring the retroreflection and daytime visibility of road markings under dry and wet conditions.
The device measures RL (nighttime retroreflection) and Qd (daytime luminance coefficient) for evaluating road marking visibility and safety performance.
The RL measurement range is up to approximately 4000 mcd/m²/lx, enabling highly accurate retroreflection testing of road markings.
The Qd measurement range is up to approximately 318 mcd/m²/lx, suitable for evaluating daytime road marking visibility.
RL ensures visibility during nighttime driving under vehicle headlights, while Qd evaluates visibility during daytime conditions, improving overall traffic safety.
Yes, the ZRM 6014 supports wet retroreflection measurement for evaluating road marking performance during rainy and wet road conditions.
The device complies with major international standards including EN 1436 (RL/Qd), ASTM E1710 (RL), ASTM E2302 (Qd), ASTM E2177 (RL wet / nass)
Yes, integrated GPS functionality enables georeferenced measurement recording and location tracking of inspection points.
GPS tagging allows accurate location documentation, route tracking, maintenance planning, and GIS integration for roadway asset management.
The ZRM 6014 features a high-resolution color touchscreen display for clear visualization of RL, Qd, GPS, and measurement data.
Yes, the intuitive touchscreen interface simplifies operation and speeds up road marking inspection workflows.
Yes, the device includes internal memory for storing measurement records, inspection history, and test results.
Yes, measurement data can be exported via USB and digital communication interfaces for reporting and analysis.
The device supports USB and digital communication interfaces for seamless data transfer and software integration.
Yes, it is widely used for highways, municipal roads, airports, pedestrian crossings, and industrial traffic markings.
Yes, the device is suitable for testing airport runway and taxiway marking visibility and retroreflection performance.
Yes, the lightweight ergonomic handheld design makes it suitable for portable road inspection and field survey applications.
Yes, the system is optimized for single-user operation with ergonomic handling and intuitive controls.
Yes, the device is designed for highly accurate and repeatable field measurements required for professional road safety audits and quality control.
The device is designed for reliable outdoor operation in varying environmental and weather conditions.
Yes, it is widely used for road marking quality control, acceptance testing, maintenance evaluation, and compliance verification.
Accurate RL and Qd measurements help maintain optimal road marking visibility, improving lane guidance and reducing accident risks.
Key advantages include RL & Qd measurement, wet-night visibility testing, GPS integration, touchscreen display, internal data logging, USB export, ergonomic portable design, and international standards compliance.
The combination of high accuracy, GPS-enabled data logging, touchscreen operation, and international standards compliance makes it ideal for highway authorities, consultants, contractors, and road safety agencies.
