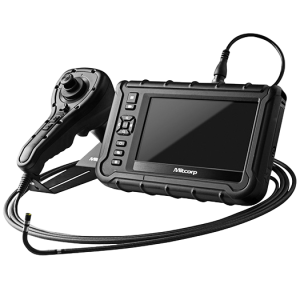

X2000 High Performance 4-Way Articulated HD Video Borescope

X2000 High Performance 4-Way Articulated HD Video Borescope combines high performance, durability, and advanced features to making it an invaluable inspection tool for professionals in various industries.

The X2000 High performance HD video scopes are in association with MITCORP, Taiwan-used by world’s leading companies who require inspection of complex or technical applications with super resolution videos & photos.

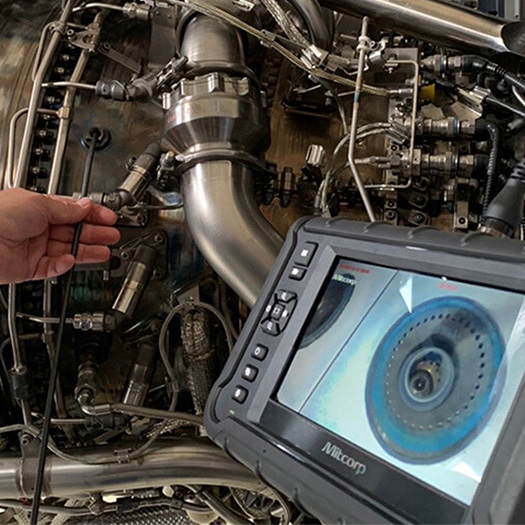

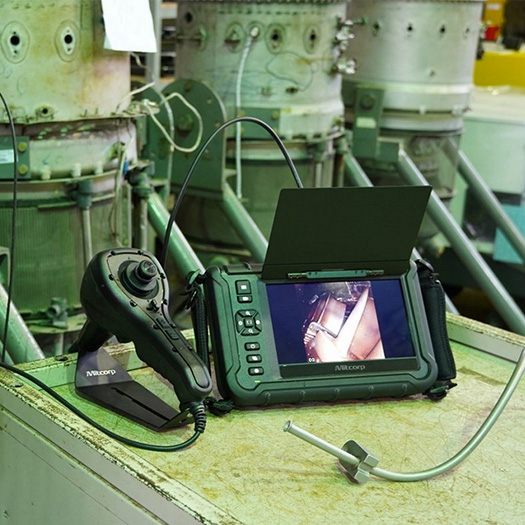

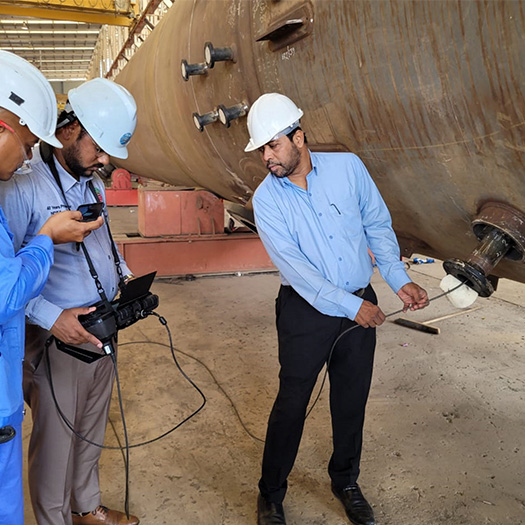

X2000 High Performance 4-Way Articulated HD Video Borescope is used for Inspection of Automotive, Aircraft, Aerospace, Barrel Inspection Process Industries, Power Generation, Wind turbines, Boiler Inspections, Construction & Security / Rescue. It is lightweight, rugged, and provides high-resolution images, videos and advanced imaging functions that allow workers to fulﬁll their tasks in even the most challenging environments.

File Management: - The X2000 Video Borescope offers a file management system which allows you sort your footage into folders, to tag them and to add notes or annotations. This makes keeping track of all your inspections easy and convenient. Consequently, technicians take many images and videos during inspections, therefore, the X2000 offers comprehensive file management and annotation functions and is compatible with our report generation assist software Insight (offered as a separate line item).

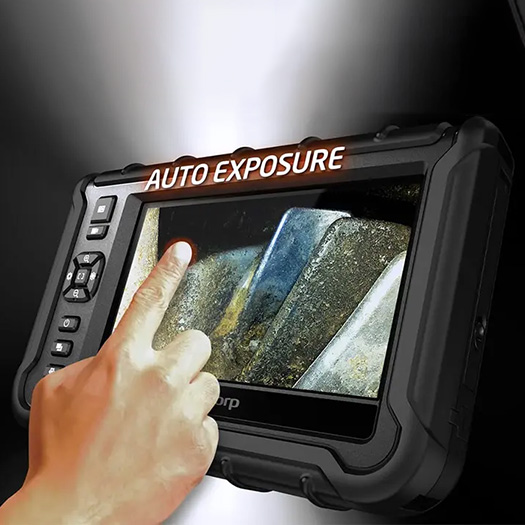

Display: - X2000 Video Borescope features a 7" LCD touchscreen the delivers not only crisp and clear images but also features a manual exposure which works very similar to that of a smartphone. This makes it not only very helpful but also very convenient to use.

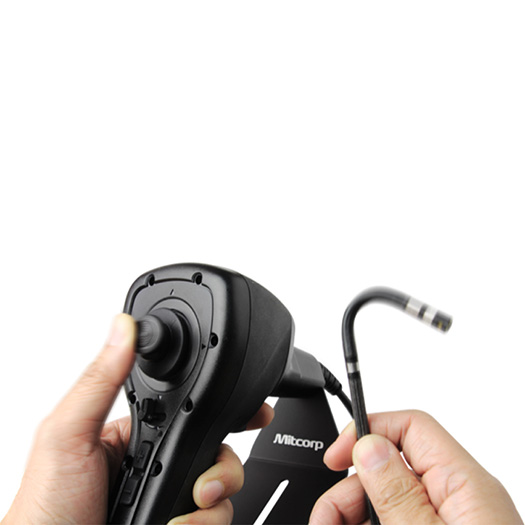

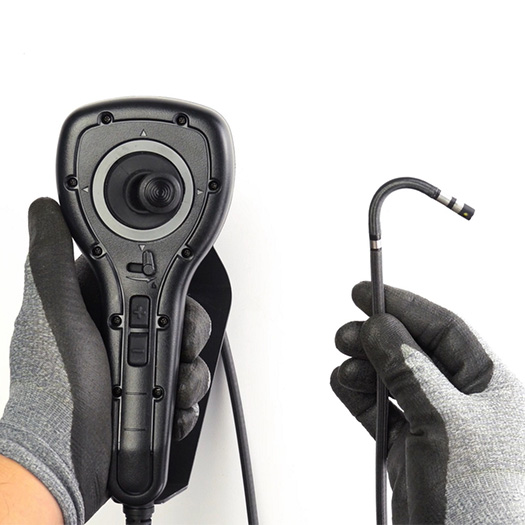

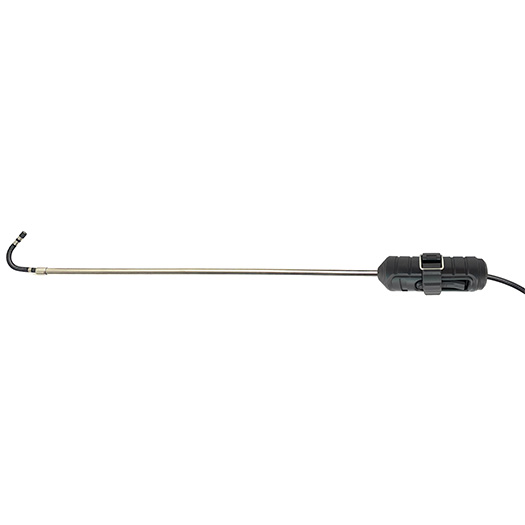

4 Way Articulated Probe options: - Choose from dual view probe or front view probe options featuring a protective tungsten-braided outer layer, enhancing its durability and longevity. The robust and dense tungsten construction significantly extends the probe's lifespan, making it waterproof, heat-resistant up to 100°C, and resistant to scratches and corrosion and it is also operable when exposed to machine oil, etc., ensuring reliable performance in various challenging environments.

Dual View Probe Options:

0mm Dual Front & Side View Camera 4 Way Articulating Probe.
9mm Dual Front & Side View Camera 4 Way Articulating Probe
8mm Digital Front View 4 Way Articulating Probe.

Front View Probe Options:

0mm Near Focus 4 Way Articulating Probe.
0mm Far Focus 4 Way Articulating Probe.

The X2000 Remote Viewing Video Borescope can also link with mobile devices via the Videoscope Now Mobile App. The app lets you control the X2000 remotely and download photos and videos directly onto your mobile device & The built-in GPS function allows you to tag images and map them out in our Insight software, for outdoor use.

Request Quote

Features

7-inch LCD touchscreen display.
Rechargeable Li-ion Batteries 9800mAh.
Flexibility- Interchangeable probes improve productivity and give you the necessary ﬂexibility for even the most complex applications.
360° Articulated Probes, Bending Angle upto 140°. Super Resolution & Fine Image Quality.
Remotely controllable via our VideoscopeNow app.
File management, annotation, and comment functions.
Compatible with Insight report assist software.
Wi-Fi, HDMI, USB type C output supported.
IP54 protection.

Specification

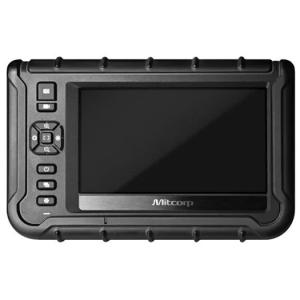

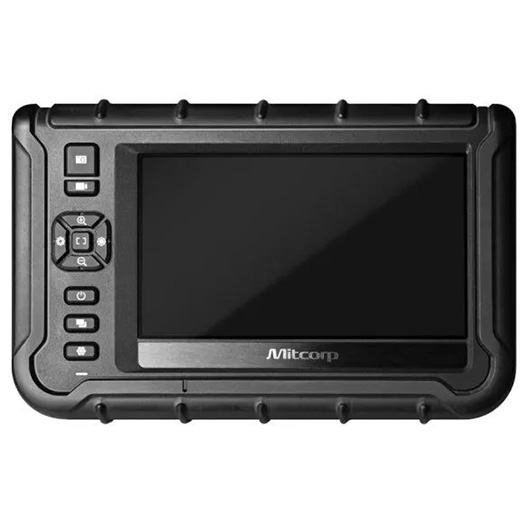

X2000 Control Console Unit
Display	7” LCD / 1024*600
Batteries / Power supply	Li-ion Rechargeable 9800mAh / 100V~240V, 120V 2.5. 50-60Hz
HDMI	TYPE D; HDMI 1.4 transmitter with 3D format and CEC support
USB	USB TYPE C, supporting USB full-speed and high-speed data transmission
Wi-Fi	IEEE 802.11B / G
Water Resistance / Drop Rating / RH	IP57 / 1m / 95% RH
Operating / Storage temperature	In air 0~45°C, with AC p0wer adapter: 0~40°C, charging temp:0~35°C / -10°C~70°C
Insert tubes interchangeability	6.0 mm HD series; 3.9 mm HD series; 2.8 mm
Software features
Image features	Digital zoom 3X, 10 steps brightness control
Image effect	Clarity-on / off
Annotation	10 text annotation (24 characters)
Timestamp / watermark	For snapshot / video recording (on / off)
Image management	User define pic / video folder available
Image display functions	Light boost, light off, mirror, grid, compare, wireless, particle free, dual view, light direction, auto white balance
White balance	Manual adjustable (default, calibration, custom)
Recording management
Storage media	SDHC micro card
Overlay	YY / MM / DD h:m, battery capacity
Thumbnail image display	9 grids album mode
Image Resolution	25601440 (S-HD); 1280720 (HD)
Images Recording format	.jpg
Video Resolution	1920*1080
Video Recording format	.mov / H.264
Video Audio input	Built-in microphone (on / off)
Frame rate	30FPS

360° Articulation Probes
Models Options	60D4W-F_TU-M	60D4W-F_TU-F	60D4W-FS_TU-M	39D4W-F_TU-M	39D4W-FS_TU-M	28D4W-F_TU-M
Probe head diameter	6.0 mm			3.9 mm	3.9 mm	2.8 mm
Probe length	2 m / 3 m / 5 m / 7 m		2 m / 3 m / 5 m / 7 m / 10 m	1.5 m / 3 m	1.5 m / 3 m	1.5 m
Probe head length	19.3 mm		2 m / 3 m: 21.5 mm 5 m / 7 m / 10 m: 24.4 mm	13 mm	21.6 mm	10.1 mm
Direction of view	Front view		Dual View Front + Side	Front	Dual View Front + Side	Front
Illumination	Front LEDs		Front / side LEDs	Front LEDs	Front / Side LEDs	Front LEDs
Field of view (FOV)	90		95	120
Depth of Field (DOF)	10 mm~100 mm	25 mm~∞	2 m / 3 m: Front: 8 mm~∞ Side: 7 mm~∞ 5 m / 7 m / 10 m: Front: 8 mm~∞ Side: 5 mm~200 mm	5 mm~100 mm	5 mm~100 mm	3 mm~∞
Still image resolution (.jpg)	2560*1440 (S-HD)		(Dual) 2560*1440	1600*1600	(Dual) 1600*1600	800*800
Video resolution (.mov)	1920*1080		(Dual) 1920*1080	1600*1600	(Dual) 1600*1600	800*800
Articulation angle	2 m / 3 m: full ways ≥ 120° 5 m / 7 m / 10 m: full ways ≥ 80°			Full way >140°	Full way >120°	Full way >110°
Operating temperature	In air: -10~100°C ; In water: 10~30°C					In air: -10~80°C In water: 10~30°C
Temperature rating	100°C temperature resistant with 3 level warning at 60°C / 80°C / 100°C
Probe head material	Stainless Steel
Probe material	Tungsten braid
Joystick console dimensions	(WxDxH) 139.4x193x84.2 mm (w/o SR and insert tubes)
Joystick console buttons	Brightness+, Brightness-, snapshot / record
Lock and move	Joystick / Unlock switch on console
Dust and water proof / RH	Joystick console: IP54 ; Insert Tube: IP67 / 95%
Liquid resistance	Operable when exposed to machine oil, light oil or 5% saline solution

FAQ

Do you have a question which we can answer for you? Click here if Yes

Downloads

Title	File Type	File Size	Downloads	View	Last Uploaded
Product Datasheet	application/pdf	6.28 MB			August 01 2024 18:06:56
Datasheet	application/pdf	2.83 MB			August 01 2024 18:21:52
