560XL-EMI Fiber Optic Power Meter

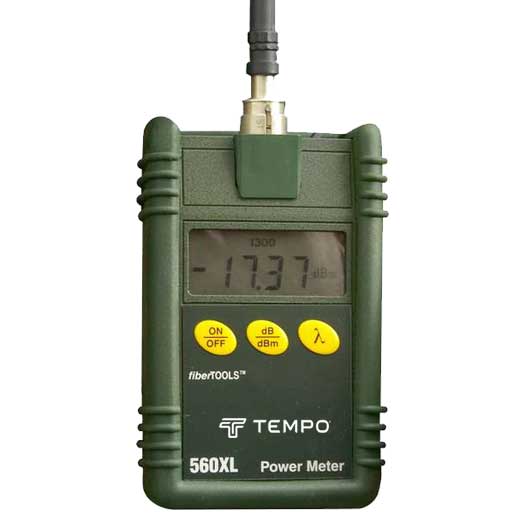

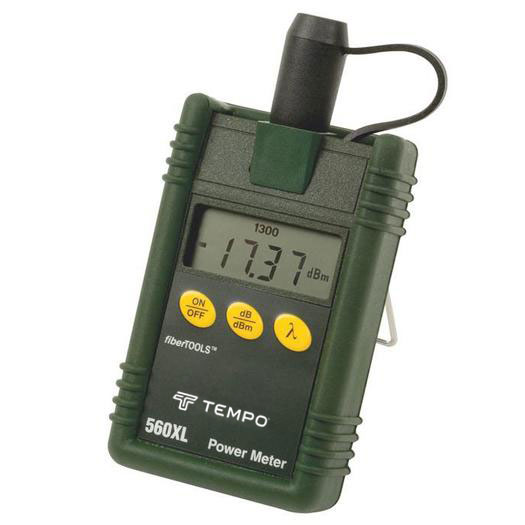

560XL-EMI Fiber Optic Power Meter measures optical power at 850, 1300, 1310 and 1550nm and insertion.

The 560XL-EMI Fiber Optic Power Meter has multi-wavelength storage. It can store and recall reference power levels for quicker more accurate measurements making it the perfect tool for installing and testing fiber optic cabling. The EMI-Proof Optical Power Meter uses Snap-On Connector interface (SOC) to connect FC, SC and ST connectors (sold as accessories). Multi-wavelength storage – record and recall reference power levels for quicker measurements.

560XL-EMI is used to measure optical power & in conjunction with a LED or laser source for insertion loss testing on multi- and single-mode fiber optic cabling.

3 button operation – all functions are controlled easily (continuous wave output mode, modulated output mode and selectable modulation frequency). Loss measurements in dB; power measurements in dBm.

Request Quote
560XL-EMI Fiber Optic Power Meter
Features
  • Easy to use - three buttons control all functions
  • Long battery life
  • Loss measurements in (dB); power measurements in (dBm)
  • 0.01dB measurement resolution
  • Snap on connector interface adapts to FC, SC and ST connectors.
  • User selectable auto shut-off
  • Rugged and splash-proof
  • Economically priced
Specification

Calibration Wavelengths

850nm, 1300nm, 1310nm and 1550nm

Power Range

+3 dBm to -60 dBm

Accuracy

±0.25dB

Linearity at:

+3dBm to -3dBm ±0.5dB

-3dBm to -50dBm ±0.05dB

50dBm to -60dBm ±0.5dB

Resolution

0.01dB

Power Requirements

Two AA size 1.5V batteries (approx. 100 hours continuous operation)

Connector Interface

SOC

Environmental Specification

Operating Temperature

-15º C to +55º C

Storage Temperature

-35º C to +70º C

Humidity

0 to 95% non-condensing

Dimensions

72 x 142 x 35 mm

Weight

241g

CE

E 61010; EN50081-1:1992;

EN55011, Group1, Class A

EN50082-1: 1992 IEC 801-2, -3, -4
