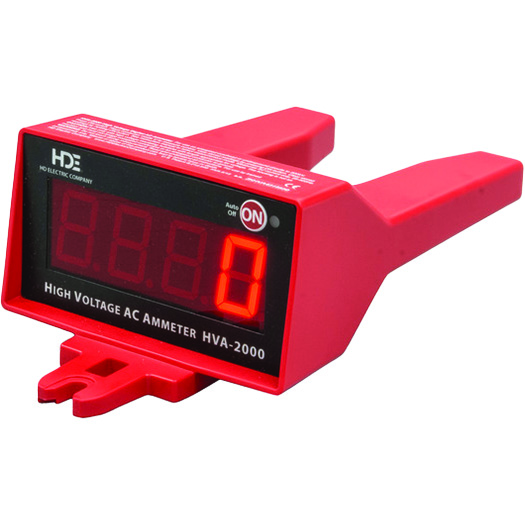

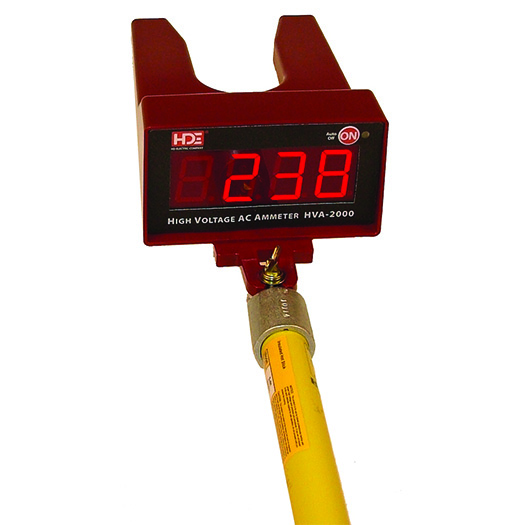

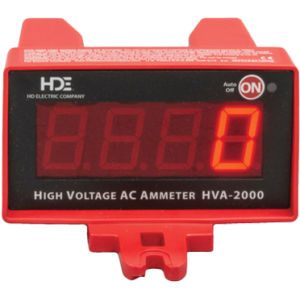

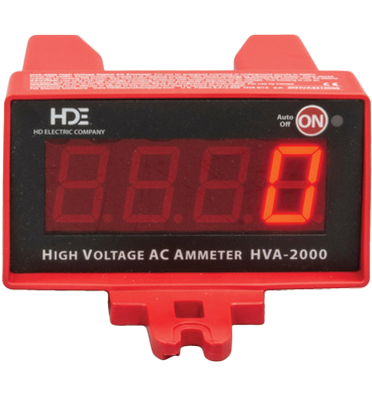

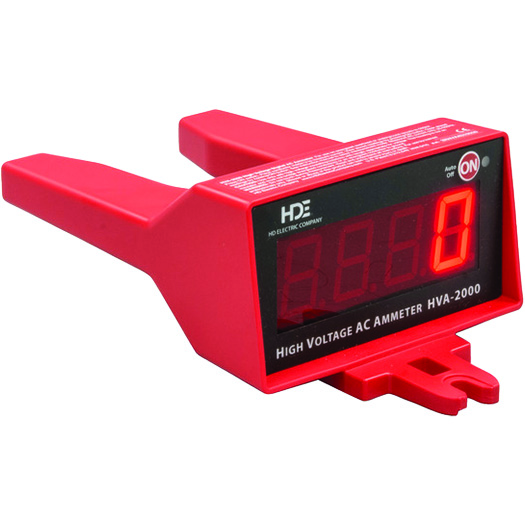

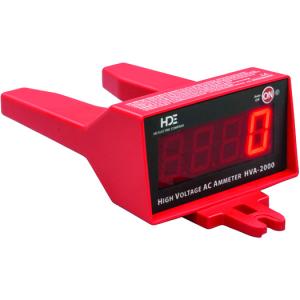

HVA-2000 High Voltage Digital Ammeter

HVA-2000 High Voltage Digital Ammeter

The HVA-2000 High Voltage Digital Ammeter is used to detect unbalanced current load in distribution and transmission electrical networks having voltage up to 500kV, for True RMS current measurements up to 2000A, for spot load studies at transformers or mid-span location in addition to phase balance studies on primary & secondary lines, to test & protect against unnecessary tripping, increased neutral flow & Power loss, reduced transformer output, phase voltage difference, increased distribution line loss, overheating which affects equipment performance and overheating causing revenue loss. Especially useful for 11KV Phasing/Load balancing.

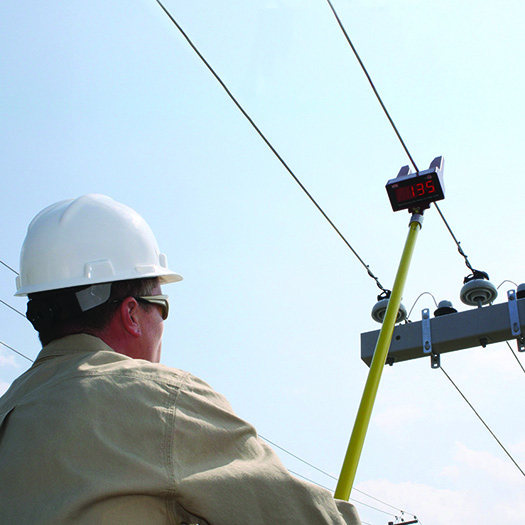

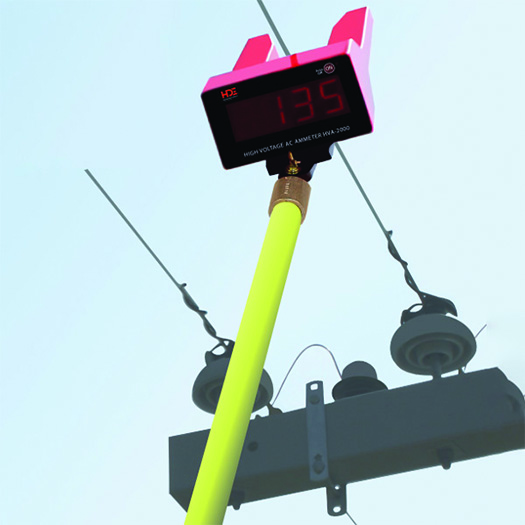

The HVA-2000 stores the four most recent current readings, typically three individual phase currents and a neutral current for easy review after making measurements by placing on bare conductor.

The initial factory default mode is Peak Hold, which displays the peak RMS current measured while the Ammeter is placed on a conductor. Peak Hold mode allows to capture and store the peak current over the period of time the Ammeter is applied to a conductor.

The second available mode is Real-Time which displays the current as it normally rises or falls. Real-time mode allows the user to see changes in load current as they occur.

The HVA-2000 Digital Ammeter is a versatile and essential tool for ensuring the efficiency, reliability, and safety of electrical distribution networks, helping to avoid costly disruptions and losses.
