PX-7 Precision Thickness Gauge

  • Product Description
  • Specifications
  • Features

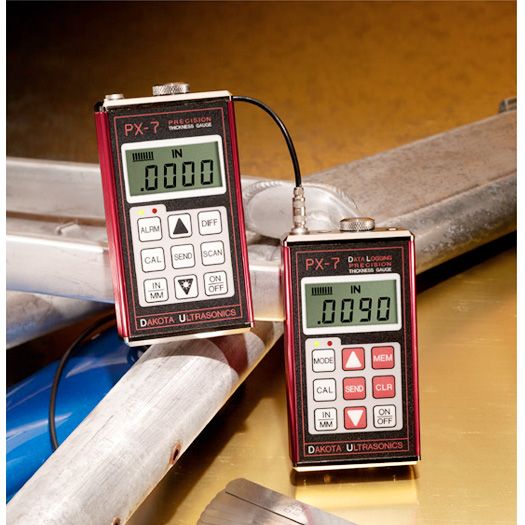

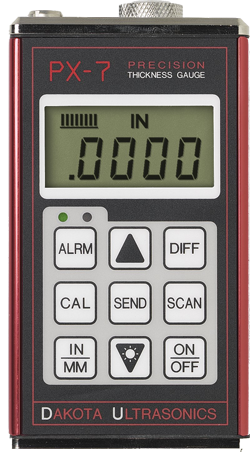

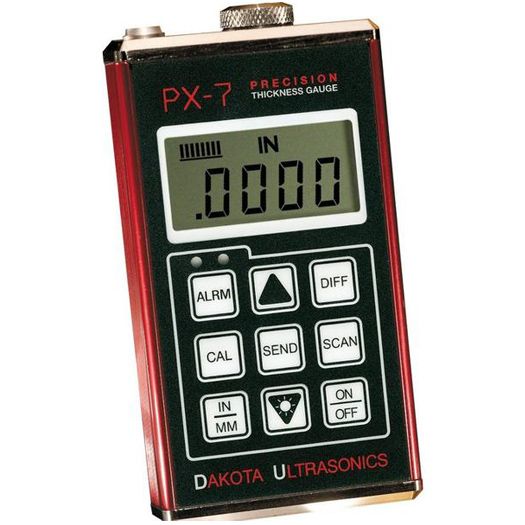

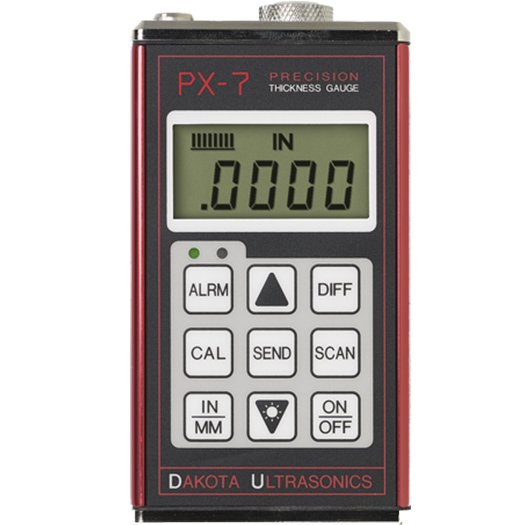

The PX-7 is a precision ultrasonic material thickness gauge model with a resolution of 0.001mm. The PX series are packaged in an aluminum extruded body, with nickel plated aluminum end caps. The PX series gauges are typically used for thin material applications.

The PX Series are state of the art gauges designed for fast & accurate readings with features such as alarm mode & differential mode. Using a single element delay tip transducer, the gauge will measure in Echo Echo (E-E) mode for the materials  and will automatically switch to interface echo mode (IE) for thickness materials.

Measurement Range Specification : Material & Coating Thickness Gauges : PX7
Measuring Modes Interface to Echo, Echo to Echo (through Paint) & Auto switchable
Measuring Range (Pulse-Echo Mode) 0.15 to 25.4 mm
Resolution 0.001 mm
Velocity Range 1250 to 10,000 meters/sec
Transducer Single element with delay tip.10 to 22 MHz frequency range. Locking quick disconnect Lemo connectors. 4 foot cable.
Data Output RS-232 data output port to interface with a computer or other data acquisition system.
Certification Factory calibration traceable to national standards.
Case Extruded aluminum body / nickel plated aluminum end caps Sealed connectors and end caps.
Keypad Sealed membrane that is resistant to both water and petroleum products.
  9 tactile-feedback keys.
Power Source Two 1.5V alkaline or 1.2V NiCad AA cells.
  Typically operates for 150 hours with alkaline and 100 hours with NiCad.
Operating Temperature -30° to 50°C
Size 63.5 x 114.3 x 31.5mm
Weight 283.5g (with batteries).
Item Code ST-PX7
Single Point Calibration option.
Standard measurement mode for 4 readings per second.
High speed scan mode for 8 readings per second.
Differential Mode: Enter acceptable thickness value, unit will display +/- difference from value.
Alarm Mode: Enter a minimum acceptable thickness value. If measurement falls outside Hi/Lo limits, red LED illuminates & sounds beeper. If measurement is between Hi/Lo limits, green LED will illuminate.
Readings are viewable on real time basis while scanning.
Bar graph in LCD display indicates stability of reading.
Backlit display.
