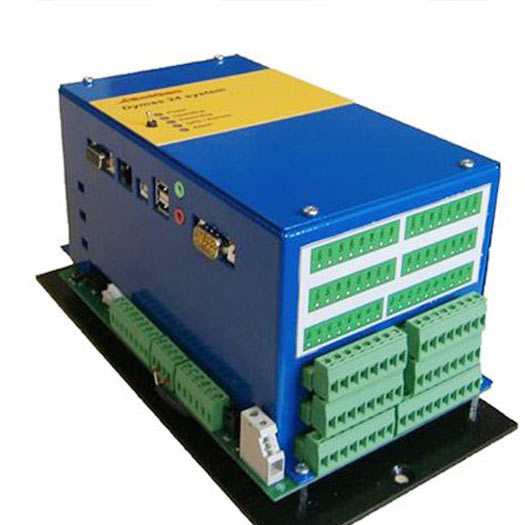

Dymas 24 Alben Multichannel Seismic Recorder

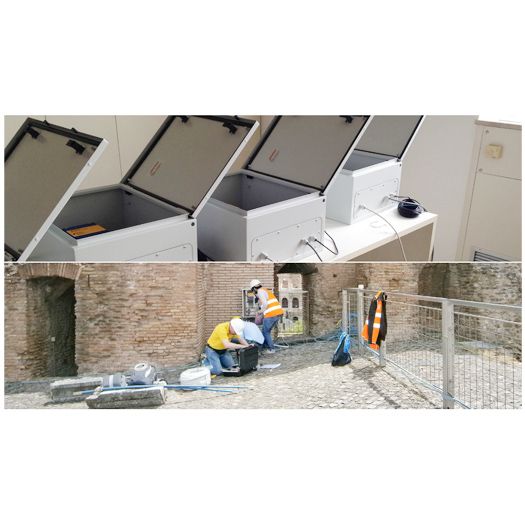

The Dymas 24 Alben is a multichannel acquisition system suitable for long term monitoring for stable configuration inside dams and structures.

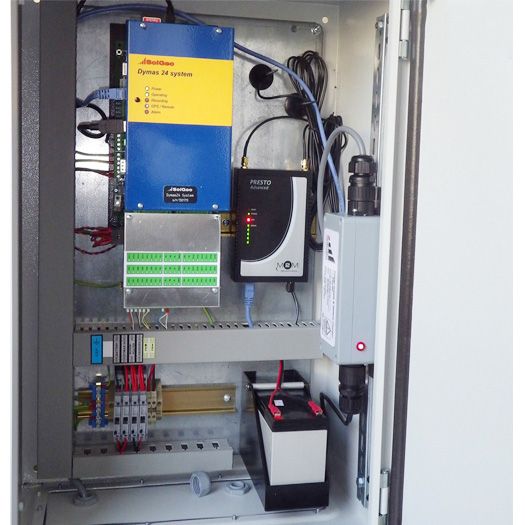

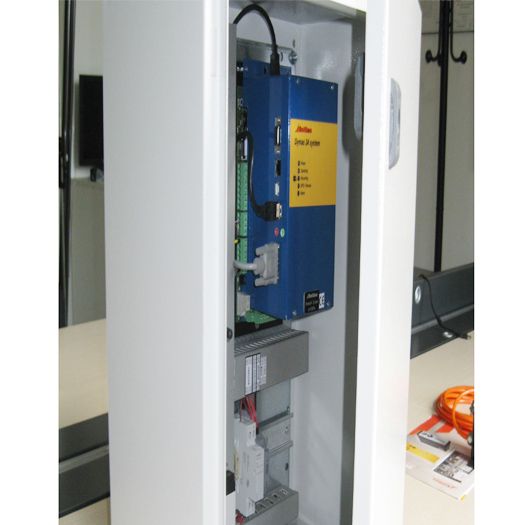

The system setup ranges from 6, 12 up to 48 channels in multiples of 6 (with or without communication modules) positioned in a single metallic cabinet provided for wall or floor fixing.

Dymas 24 Seismic Recorder is used for both Micro seismic & Vibrational studies.

Connection to remote system is provided by HSDPA/UMTS, GPRS/GSM, OPTICAL FIBER MODEM, Wi-Fi and VHF. Equipped with optical modems for fast data transfer .The management software DYMASOFT, integrated with VIBROSOFT data processing software allows to build up efficient dynamic monitoring networks.

The Dymas 24 seismic recorder is compatible with both the 3D-1D Veloget Geophone and Force Balance Accelerometers from Solgeo. The Dymas is ideal for use in dynamic monitoring of civil & industrial structures such as dams, bridges, chimneys & rock noise.



Request Quote
Features
  •  Up to 48 channels
  • Standard guidelines UNI 4150-3, DIN45669-1, UNI 9916
  • 24 bit multihannel sampling
  • 10Hz - 10Khz sample rate
  • Bandwidth DC - 4 kHz
  • Continuos and/or triggered recording
  • Built-in calibration function
  • From 2 up 32 Gb internal SD memory
  • Seismometers and/or accelerometers connection

  •  Up to 48 channels
  • Standard guidelines UNI 4150-3, DIN45669-1, UNI 9916
  • 24 bit multihannel sampling
  • 10Hz - 10Khz sample rate
  • Bandwidth DC - 4 kHz
  • Continuos and/or triggered recording
  • Built-in calibration function
  • From 2 up 32 Gb internal SD memory
  • Seismometers and/or accelerometers connection

Specification
SYSTEM
Input Channels  Up to 48 channels
Configuration  Standalone or multi-station network
Timing  Internal RTC updated via GPS or remote control – simultaneous  sampling
Triggering Mode  Threshold level and/or STA/LTA, selectable for each channel
Recording Mode Internal/external trigger, continuous, selectable post- trigger length Recording of weighted pick values (min-Max), according to DIN 4150 part II, selectable 1 to 100s
Data Storage  2 Gb internal memory card for 6 channel group (till to 32GB optional)
Diagnostics  Battery voltage, temperature, sensors test
Power Consumption  2W for 6 channel group (active)
Communication  Ethernet TCP/IP via cable/wireless, modem GPS, USB2.0, UMTSHSDPA
24 BIT MODULE
Converter
Channels Iinput Level		 Individual 24-bit Sigma/Delta per each channel, with DSP each 6 channels, integrated digital antialiasing filter Up to 48 Ch. 5Vpp, 20Vpp, differential Input
Calibration  Built-in
Sampling  Selectable from 10Hz to 8kHz
Band DC – 4,000 Hz
Dynamic Range  > 134 dB
Programmable Gain
Filter Anti Aliasing		 1-2-4-8-16-32-64-128
Digital Filter FIR. Frequency attenuation by Nyquist (1/2 sample
rate) >–120dB, cut frequency 0,4 of sample rate
EXTERNAL INTERFACES
GPS Antenna  GPS time synchronization, RS-422 interface
Power  10VDC to 18 VDC (adapter 120/240 V AC optional), automatic
turn OFF when battery <10,2 V, turn ON >11,8V
Seismic Sensors  Seismometers, Accelerometers Force Balance, ICP, piezoeletrics,
MEMS, Geophones,
Other Interfaces  Ethernet TCP/IP via cavo/radio wireless, modem, GPS
PHYSICAL CHARACTERISTICS
Container Features  Metallic cabinet, protection IP656
Working Temperature  -20 °C - +70 °C
Dimensions (LxWxH)  650x400x250mm – 400x400x250
Weight  15Kg
Umidity  0-100% non condensed
