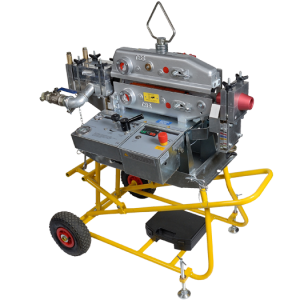

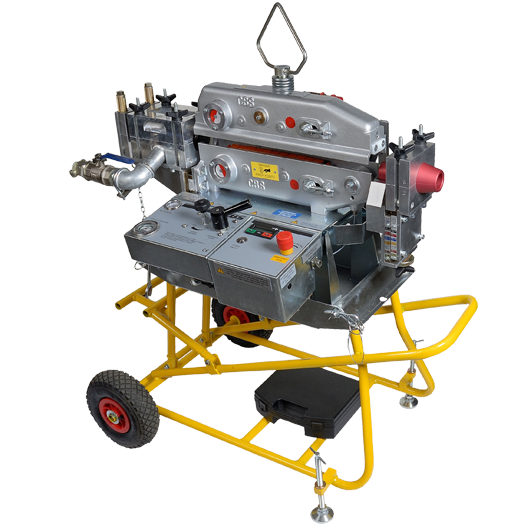

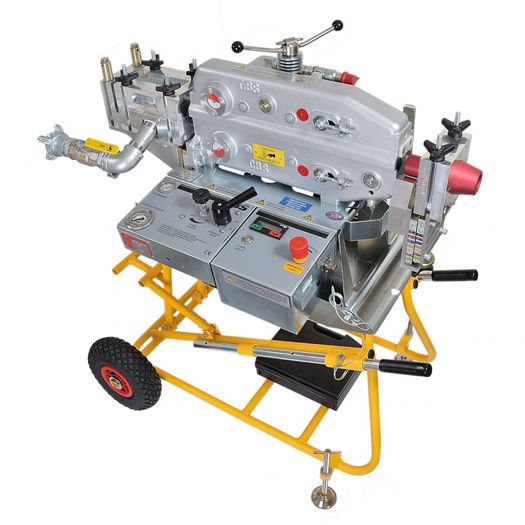

Tornado Cable blowing machine from CBS UK, comprises of an air box and cable pusher, designed to provide an effective and safe method of fiber optic cable installation. The system installs fiber optic cable of 6mm (0.25”) to 32mm (1.25”) overall diameter, at speeds up to 90m/min (300ft / min), into pre-installed ducts. The system operates on the viscous drag principle employing compressed air to install the cable, controlled and assisted by the belt drive system.



The cable is propelled by compressed air, fed into the duct via a venturi principle, while the hydraulically powered belt drive system controls the fiber optic cable.The electronic monitoring system provides read out of speed and distance, gives protection against duct obstructions and includes an emergency stop facility.

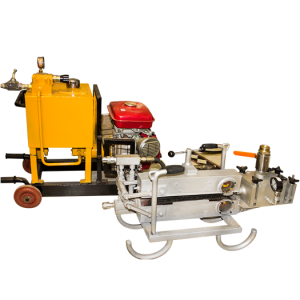

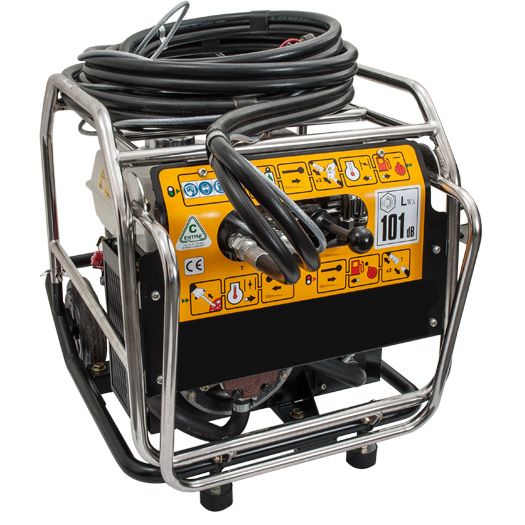

The system is mounted on an anti-corrosion treated, sturdy,height adjustable, wheeled, tubular steel trolley. This allows the unit to be wheeled around on site. The C-1200 hydraulic petrol driven power pack provides power.

  • Duct Range 25-63mm, Cable Range 6-32mm
  • Range taking of cables from 6mm – 32mm (0.25”-1.25”) by means of interchangeable collets with double cable sealing arrangement
  • Item Code : ST-TCBM

Fully labelled control panel containing:

  • Power on/off button
  • Emergency stop button
  • Reset button
  • Combined length counter recording in metres (feet) and cable speed read out in metres/min (feet/min)
  • Hydraulic pressure read out dial
  • Air pressure read out dial
  • Hydraulic on/off control valve
  • Adjustable speed control for drive belts
  • Air supply control on/off with automatic exhaust function

Classis

  • Front mounted wheels for ease of manoeuvrability
  • Lightweight anti-corrosion treated tubular steel frame
  • Adjustable frame allowing unit to be tilted up to 300 reducing bending of duct and cable
  • Adjustable rear legs for uneven terrain

Air Box

  • Manufactured in aluminium
  • Range taking of cables from 6mm – 32mm (0.25” - 1.25”) by  means of interchangeable collets with double cable sealing arrangement
  • Duct sealing at mouth of air box
  • Duct gripping facility designed to obviate duct crushing and distortion
  • All  seals, except cable seals, have a common diameter cord
  • Upper section of air box is retained
  • Air box aligned is adjustable for varying cable diameters
  • No tools are required to split air box for insertion of cable and duct
  • On/off air control valve with automatic air exhaust from duct when in “off” position
