170XL Visual Fault Finder

  • Product Description
  • Specifications
  • Features

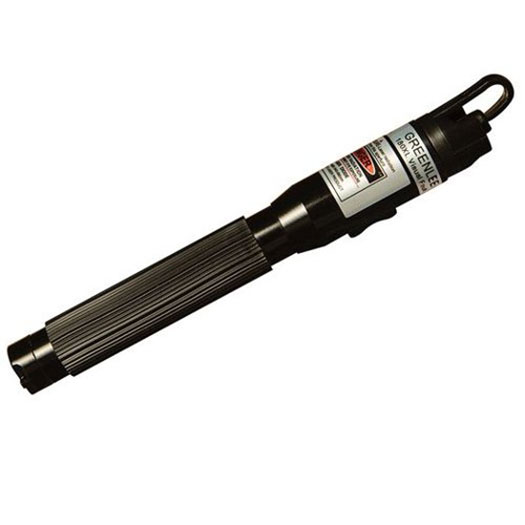

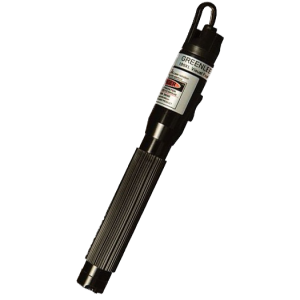

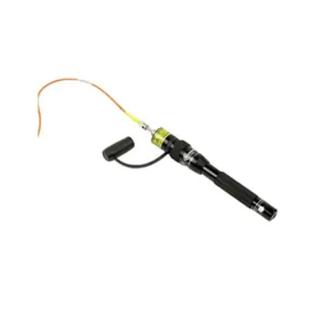

170 XL Visual Fault Locator for steady fault location to find breaks upto 5km . Easy to use quick interface with rugged, compact and splash proof aluminium design.

Easy Fault Locating: The 170XL visual fault locator is an indispensable tool for quickly identifying bending losses and breaks in optical fibers. If a fiber is bent too tightly, red laser light will be seen escaping through the cable jacket. Likewise if a fiber is broken, escaping light will be visible where the break is located.

Identifying Bad Connectors: Connectors are easily tested using the 170XL visual fault locator. A fiber broken inside or past the ferrule will cause it to glow. If the whole connector glows, it is a defective connector. If the end face polish of the connector is bad, light will be reflected internally

Optical Specifications:

Light Source Type 655nm Red laser Diode
Center Wavelength 655nm
Range (Typical) 645nm to 655nm
Max. Spectral Width (FWHM) <5nm
Power Output
Max. into SMF-28 Fiber 1.0mW (0dBm)
Min. CW Output Mode 316uW (-5dBm)
Blink Frequencies in MOD mode <3kHz approximate
Power Requirements Two AA size 1.5V batteries (approx. 48 hours continuous operation)
Connector Interface Standard "Quick Connect" universal 2.5mm receptacle



Environmental Specifications:

Operating Temperature -10º C to +50º C
Storage Temperature -40º C to +60º C
Humidity 0 to 95% non-condensing
Dimensions Length: 22 cm (9.0 in.)
Diameter: 2.54 cm (1 in.)
Weight 200g (7.0 oz.)
CDRH Laser Class 316uW (-5dBm)
CE <3kHz approximate
Two AA size 1.5V batteries (approx. 48 hours continuous operation)
Standard "Quick Connect" universal 2.5mm receptacle
  • Continuous wave output mode for steady fault location

  • Find breaks to 5km

  • Blinking output mode increases viewing contrast

  • Easy-to-use quick interface fits all 2.5mm connector interfaces (FC, SC, ST)

  • 1.0mW output power

  • Ergonomic rotary switch permits easy one-handed operation

  • Rugged, compact and splash-proof aluminum design

  • Two AA batteries provide 48 hours continuous operation

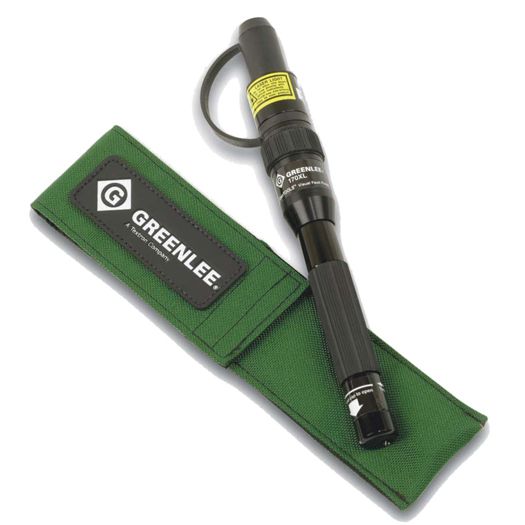

  • Nylon belt holster included
