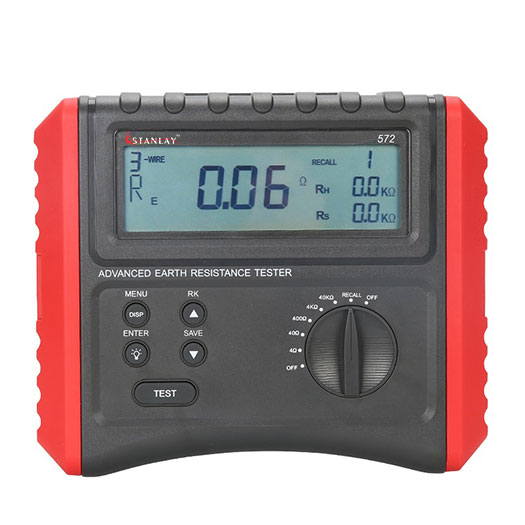

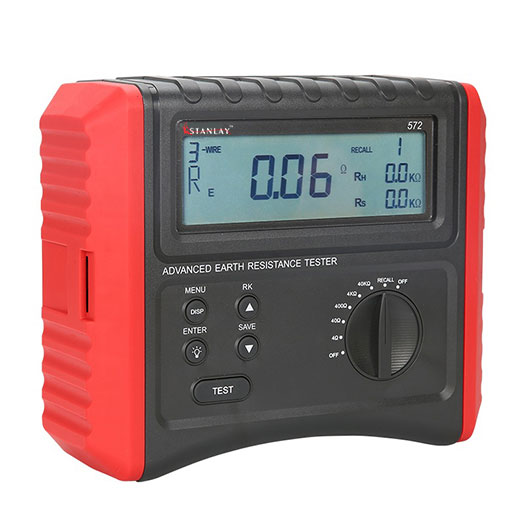

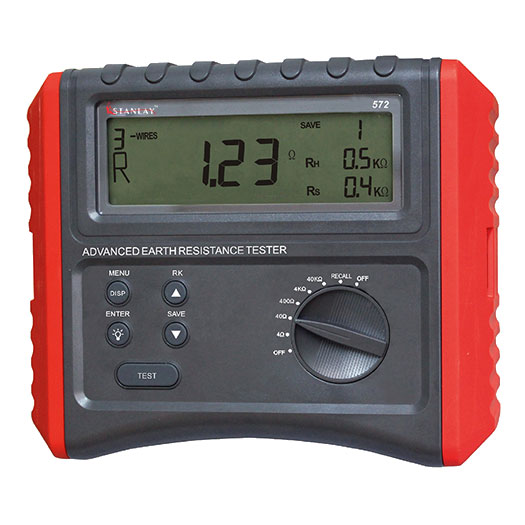

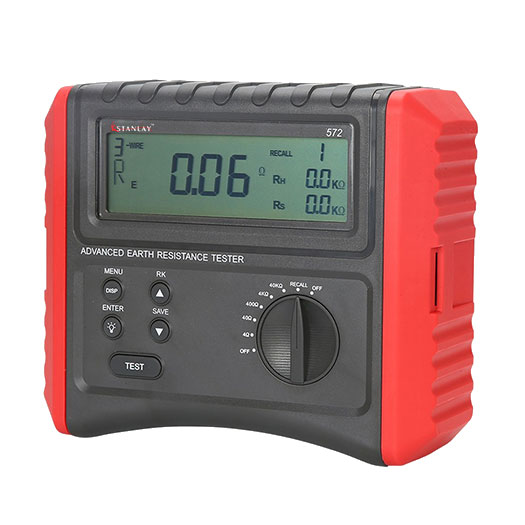

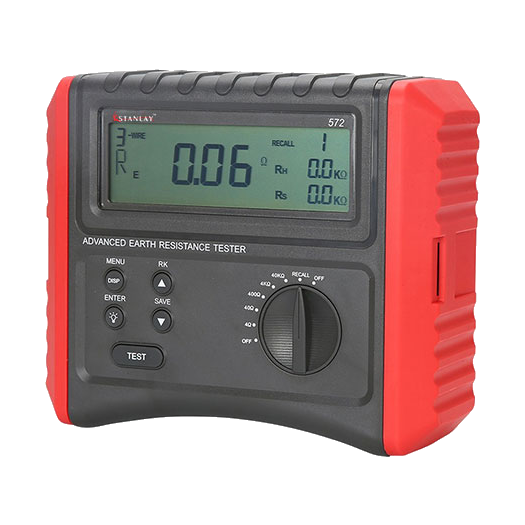

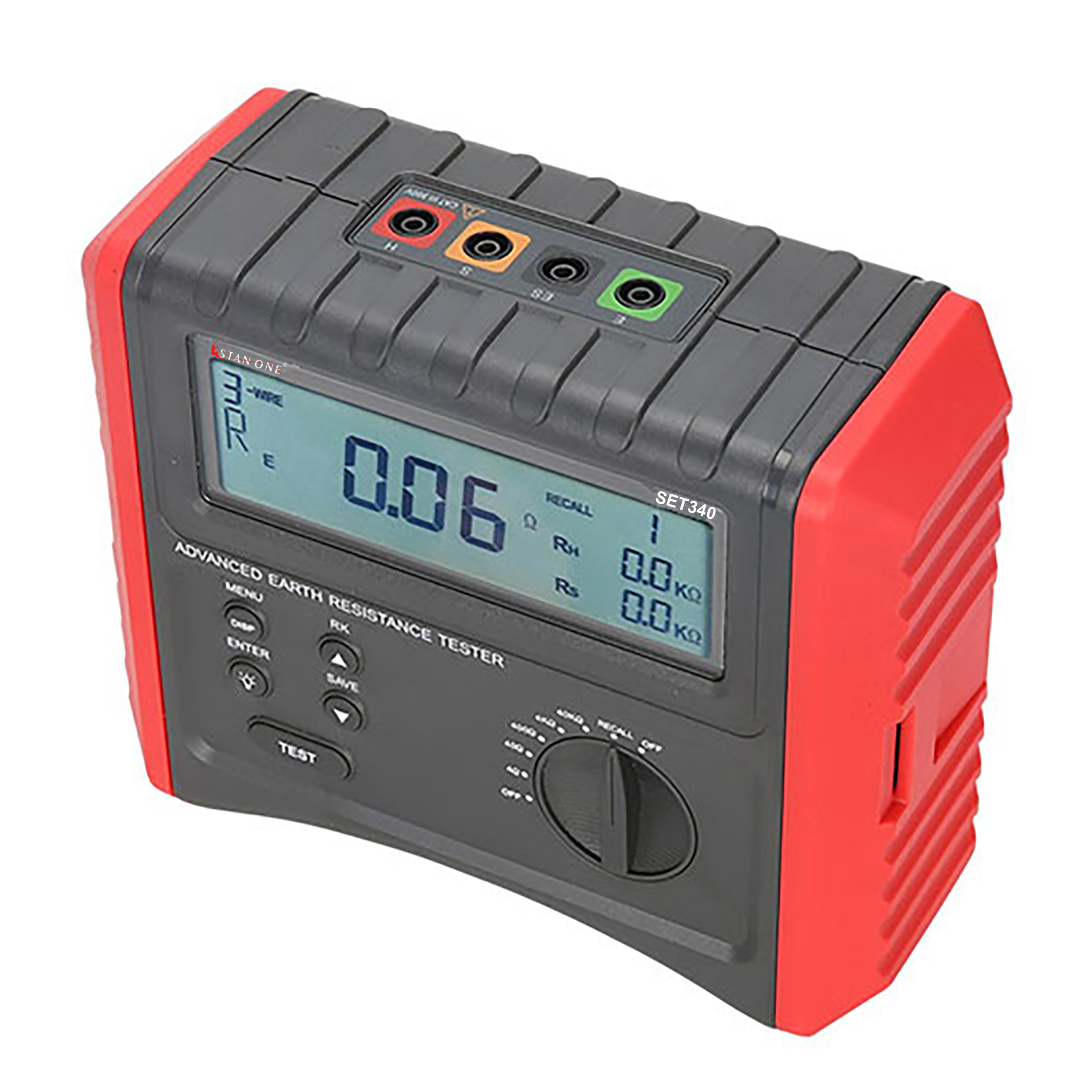

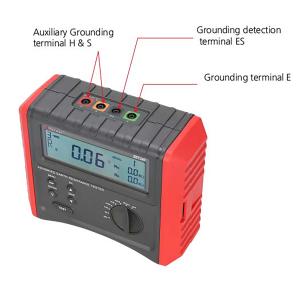

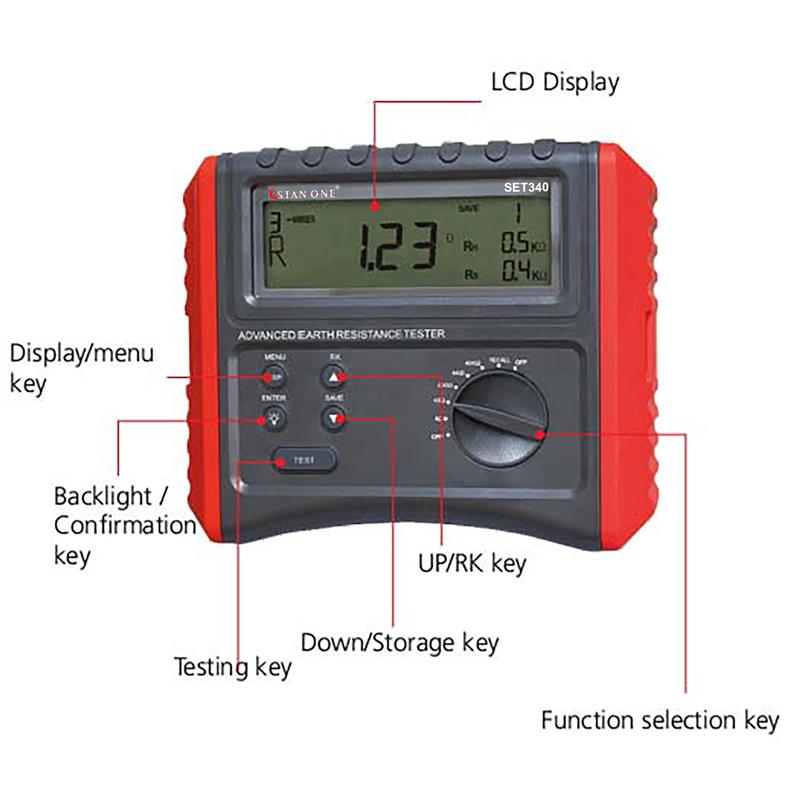

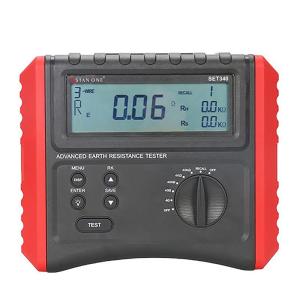

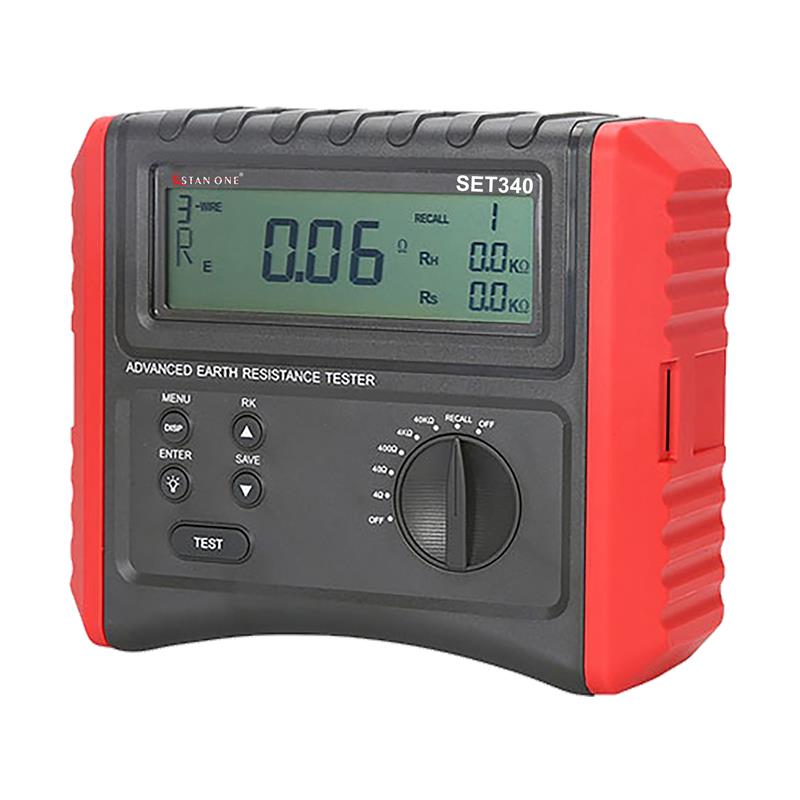

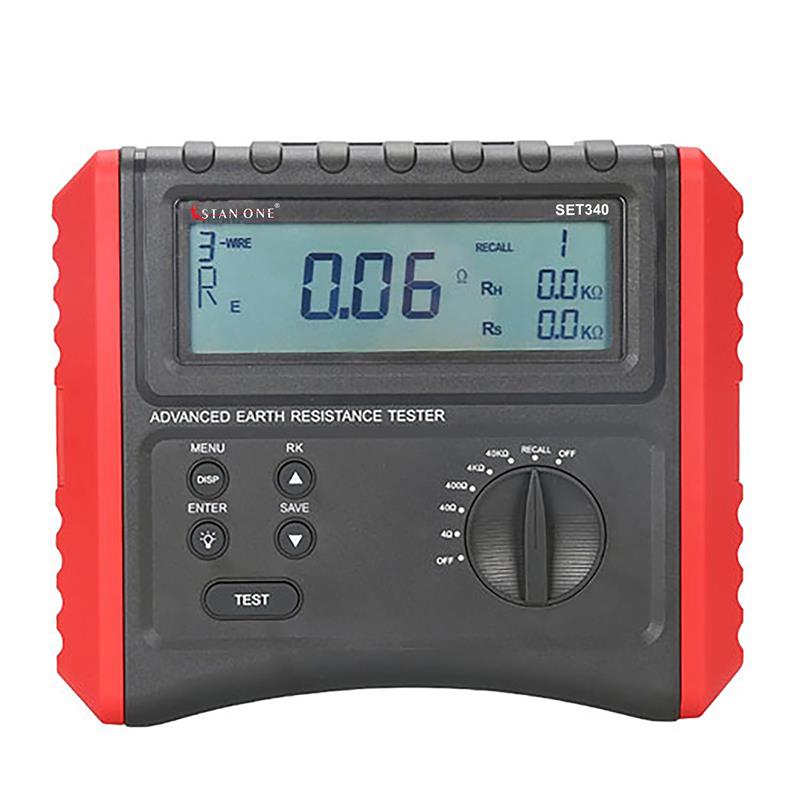

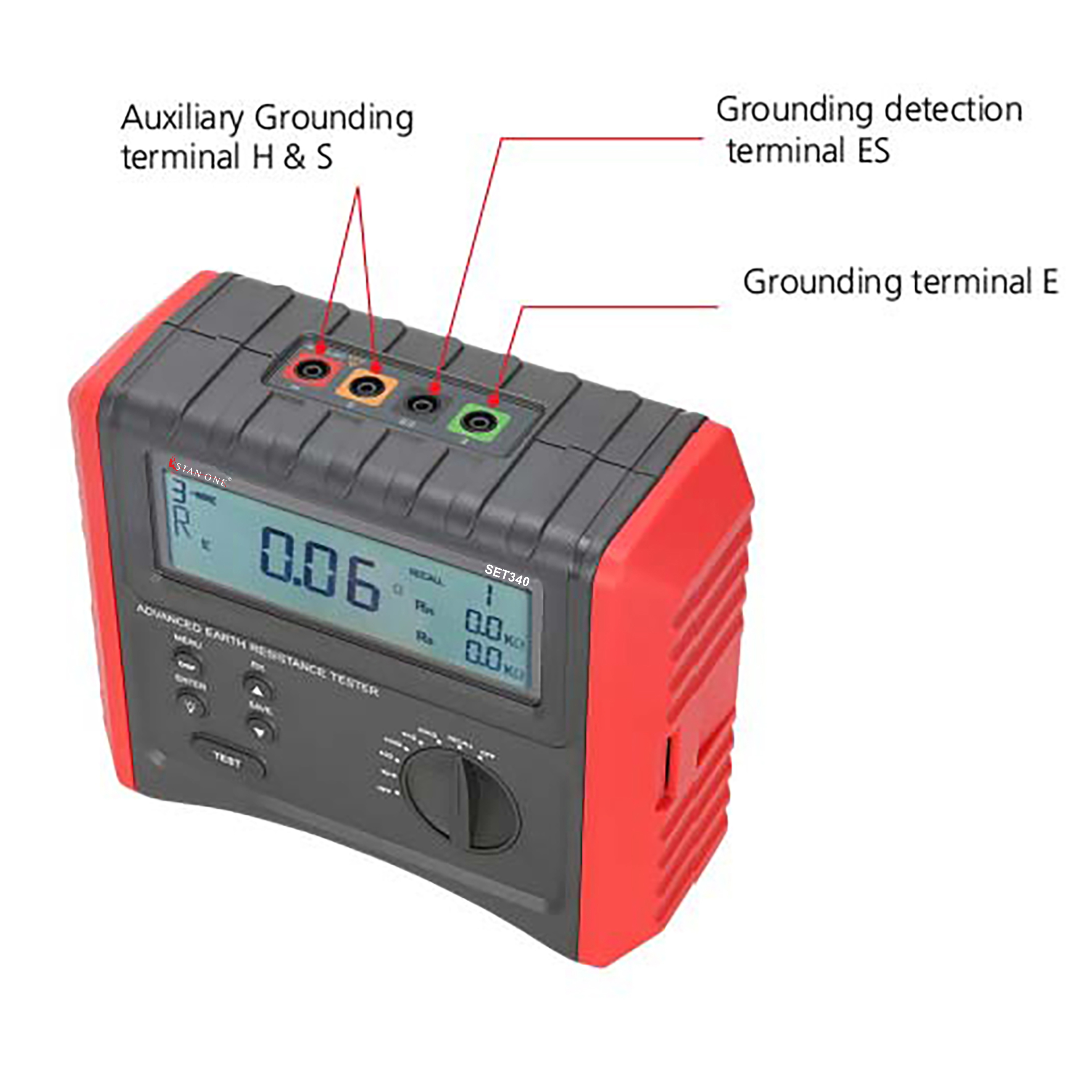

3/4 Wire Digital Earth Ground Tester 572

Advanced Earth Resistance Tester

The 572 is an Advanced Earth Resistance tester based on 2/3/4 wire test measures earth resistance and soil resistivity. The instrument features detection of interference voltage/ frequency & automatic connection check to allow use in demanding conditions typical in high voltage power installation.

The 572 earth tester & soil resistivity tester has 5 operating range such as 4Ω / 40Ω/ 400Ω/ 4kΩ/ 40kΩ. The equipment comes with data hold feature & stores 20 sets of data for further access.

The 572 Digital earth Tester has Compensation Lead Resistance Test ( RK Test) feature to check the resistance of lead wire & make it negligible to get the actual resistance value of earth.

The 572 earth tester is for users demanding high precision & reliability.

The 2-wire test is a simple 2-wire test by taking the grounding electrode of known minimum grounding as the auxiliary grounding electrode. The 3-wire test is used for general ground resistance testing & the 4-wire earth resistance test is used for highest accuracy.

Specifications
Product Specification

Measurements

Range

Resolution

Accuracy





Earth Ground Resistance (Ω)

4Ω

0.01ohms

±(3%+15)

40Ω

0.01ohm



±(3%+5)

400Ω

1

4kΩ

0.01k

40kΩ

0.1k





Soil Resistivity (Ω)





ρ=2×π×L×Re (Depending on the test result of Re)

400Ω

4kΩ

40kΩ

Disturbance voltage (Ust)

1 ~ 50V

1V

±(3%+3) (DC

voltage/40Hz~500Hz)

Disturbance Frequency (Fst)

40~500Hz

1Hz

±(1%+2)

Type

2/3/4 Wire

Simple 2 - Wire Testing

Precision 3 - Wire Testing

Soil Resisitivity test distance

1 ~ 40m

Test Frequency

94 / 128 Hz

Compensating resistance RK Test

Earth resistance RH & RS Test

Data Hold

Backlight Display

Battery Check & Auto Power Off

Data Storage

20 sets

Overload protection

220V, 10 secs

Withstand Voltage Between

Circuit & Housing

3540 V

Category Safety Ratings

EN 61010-1 CAT III 300V , EN 61010-2-033, EN-61010-031

General Characteristics

Power

AA 1.5V Batteries x 8

Display

125mm x37mm

Product Net Weight (Ing)

1100

Product Size (mm)

210 x175 x90



Standard Accessories

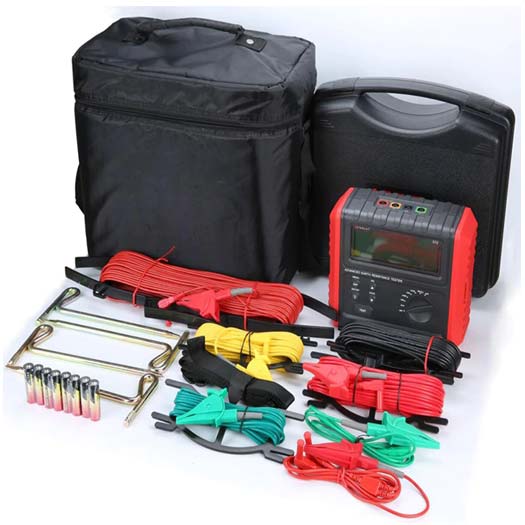

Batteries, simple test leads with alligator clips (double plugs x1, single plug x 1), earth spike x 4, standard test leads with alligator clips (40m red x 1,20m red x 1,20m black x 1,10m yellow x 1, 5m green x1), gallus

Features
Features
  • Data Storage & Auto power off
  • Low Battery Indication
  • Compensating Resistance RK measurement
  • Selectable 94/128Hz test frequency


FAQ
FAQ
Frequently Asked Questions (6 answered questions)
The equipment has 5 operating range-4Ω / 40Ω/ 400Ω/ 4kΩ/ 40kΩ

Person name: Asian

Yes, It does.

Person name: Asian

Yes, It stores data upto 20 sets

Person name: Asian

CAT III 300V

Person name: Asian



Product Info Downloads
