DataScout10G Network Tester with Datacom Interface

Multi Service Network Analyzer

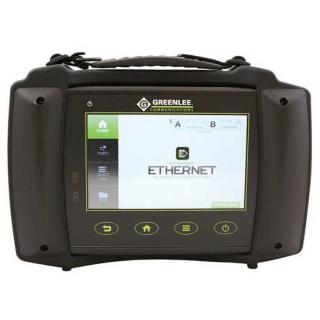

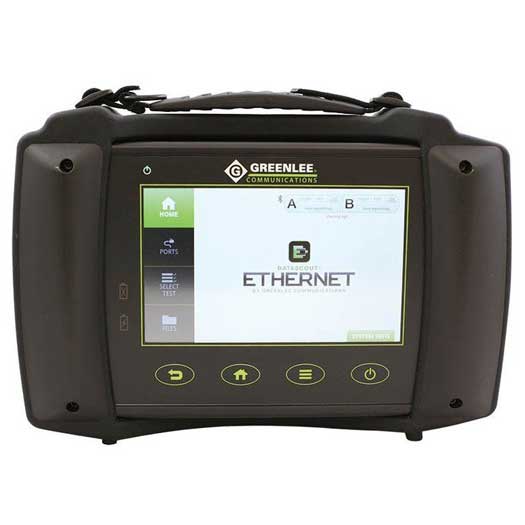

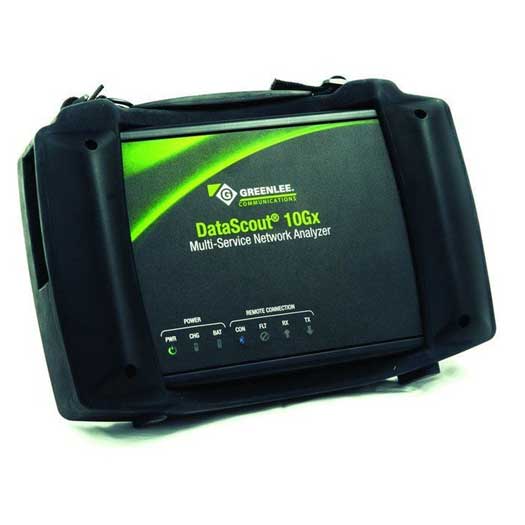

The DataScout 10G™ is a multi service network tester, in an android platform based ruggedized tablet, which enables telecom and data technicians to carry a single device powerful enough to test 10G ethernet. it will also test data networks down to 10Mbps or 100Mbps. DataScout 10G can test multiple services simultaneously.

Datascout10G is the only TIMS-DS0 to 10G Ethernet solution on the market, manufactured at Vista, California, meeting requirement of Metro Ethernet, Mobile backhaul, Utility, Smart Grid & Business Services testing.

Datascout 10G being plug & play modular can be configured to test:

  • Ethernet 10/100/1000Mbps though copper
  • Fiber ethernet 100M, 1G and 10G
  • DS3 / DS1 - E1/T1
  • TIMS
  • PRI – ISDN
  • DDS and Datacom testing
  • Loaded with productivity applications including: Chrome web browser, Google maps, Email, notes & contacts, PDF viewer, Onboard training videos, Remote control/upload via LAN.
  • Tests for proper 802.11 b,g,n configuration
  • Performs channel scan
  • Graphical frequency/channel/power display
  • Remote control via Wi-Fi
  • Dual 10/100/1000T/X SFP Ethernet ports
  • 10 Gigabit Ethernet SFP+
  • BERT
  • Optical power measurement
  • PING & Traceroute
  • RFC-2544 with quick test validation
  • Loopback, monitor and thru modes
  • Automatic self test on connection
  • STS-1 signal detection
  • Simultaneously test Dual T1 and DS3
  • Dual T1/E1 testing
  • PRI-ISDN NT/TE emulation
  • T1 to Ethernet Bridging
  • DS0 Voice & Data Testing
  • CSU/NIU Emulation Mode
  • VT100 emulation
  • Frame Relay option
  • Comprehensive VF test suite
  • TIMS 2/4 wire plus wideband
  • CO/PBX emulation
  • Replaces the outgoing Am5, CXR-704, HP4935A
  • CSU/DSU emulation
  • 56K primary/secondary modes
  • 64K clear channel mode
  • Real-time received byte display
  • Monitor received signal level
  • Sync/Async & DTE/DCE modes
  • V.35, RS232, RS449, RS530, X2

DataScout also provides remotely controlled network testing, using Wifi 802.11, Bluetooth or LAN Hardwire, leaving the equipment at the testing location and accessing data through IP.

The equipment provides email and google chrome to save and send test results; additionally, methods, test procedures and training videos are available loaded on the instrument.

Simply configure the instrument modules and software from  a variety of options including testing of  DS0-TIMS, Y.1588v2, IPTV, VoIP, Wi-Fi and legacy DS-1/DS-3/Datacom , E1/T1testing, PRI-ISDN testing, layer 1-4 BERT testing, RFC 2544 traffic analysis testing etc.

DataScout 10G makes network performance reliability testing by using test protocol easy. Tempo (previously Greenlee) DataScout 10G multi-service network analyzers help to ensure business services are provisioned correctly at the time of installation, which reduce repeat visits to customer premises

Training videos, as well as the user manual, are available directly from the simple to use, fast to learn, touch screen interface.

DataScout 10G is ideal for telecom & ISP service providers, railway metro networks,  networks utilities and datacom network installers.

The equipment itself is highly rugged aluminium enclosure supported by a rubberised boot, with an industrial touch screen, allowing rough use.

Key benefits for DataScout 10G multi-service network analyzer:

  • Reduces OpEx by avoiding dispatches and reducing mean time to repair from days to minutes
  • Greatly improves visibility at the edge when integrated with Packet Portal
  • Increase average revenue per user by eliminating premises visits and solving problems faster from a central location
  • Provides affordable access on a massive scale with powerful real-time monitoring and analysis.
  • Analyzes and troubleshoots across virtually and network with pervasive on-demand monitoring
  • Operational expenses are reduced because of low learning curve for technicians.

The testers are easy to use providing Pass/Fail test reports & direct data output to allow any level of operators to test without much training.

The Multi-service network analyzers field application in both legacy SCADA networks & new generation telco fiber DWDM networks for:

  • Provisioning/Assuring 1G/10G Ethernet circuits
  • Provisioning/Assuring DS1/DS3 circuits
  • Verifying DS0, 2&4 wire signalling circuits (TIMS)
  • Testing PRI-ISDN and ATM circuits
  • Testing DDS & DATACOM circuits
  • Diagnosing Symmetricom timing systems
  • Utility substation SCADA testing

 Configuration Options:

DESCRIPTION

BASE CHASSIS OPTIONS

DS10G-HW-B3

DataScout 10G Tablet without Datacom Interface

DS10G-HW-B4

DataScout 10G Tablet with Datacom Interface

TEST INTERFACE OPTIONS

WI-FI Option



DS10-HW-WIFI

WI-FI Test & Remote-Control Interface

Ethernet Option

DS10-HW-ETH

Dual Port 10/100/1,000 Base-T/X SFP &  Dual Port 10G SFP+ Interfaces

Transport Options

DS10-HW-PDH1

Dual Port DS1 Test Interface

DS10-HW-PDH2

DS3 Test Interface

DS10-HW-P

ISDN-PRI Test Interface

DS10-HW-DDS

DDS Test Interface

TIMS Test Option

DS10-HW-T

TIMS Test Interface

RITS Test Option

DS10-HW-RITS

Intelligent DS1 Clock & Timing Analysis Interface

TEST OPTIONS:

Ethernet Test Options

DS10G-SW-201

Dual Port 10/100/1,000 Base-T/X L2 Ethernet Testing

DS10G-SW-110

 Single Port 10,000 Base - X (10G) SFP + L2 Testing

DS1 Test Options

DST-SW-DT1

Dual Port T1 Testing

DST-SW-N1

T1 CSU/NIU Emulation

DST-SW-X

Drop & Insert Bypass

DST-SW-DCOM

DTE/DCE Interface

DST-SW-E1

DE1 On-The-Fly T1/E1 Utilizing the Same Interface

DS3 Test Options



DST-SW-H3

DS3 Thru-Mode

DST-SW-D1D

 DS1 Drop from DS3 Signal

DST-SW-NX

DS3 CSU/NIU Emulation and Loopback Response Analysis

PRI Test Options



DST-SW-E

Euro/Asian ISDN-PRI Protocol Support

TIMS Test Options



DST-SW-PRO4

4-Button Custom Frequency Program

DST-SW-4

Extended 2.0 MHz Test Range

DST-SW-EM

E&M Type I-V Signalling, Trunk, PBX Tie Line Testing

DST-SW-DG

Dropouts, Gain/Phase Hits, Amplitude and Phase Jitter Testing

Remote Control Option

DS10-SW-RC

Remote Control Via LAN or Wi-Fi



Specifications
Product Specification

Display

7" WVGA touch screen LCD, 800x600 resolution

Dimensions (WxHxD)

254 x 165 x 56 millimeters
10 x 6.5 x 2.2 inches

Network Protocols

1G/10G ETHERNET, 802.11B, G, NWI-FI, TIMS, DS0, DS1, DS3, ISDN-PRI, DDS, DATACOM

Storage Operating Temperature

·        Operating Temperature: -10°C TO 55°C

·        OPERATING HUMIDITY: 14°F TO 131°F

·        NON-CONDENSING STORAGE TEMPERATURE: 0% TO 93% RH

·        -20°C TO 70°C

·        -4°F TO 158°F

Application

Provisioning/Assurance of: Metro Ethernet, Business Services, Mobile Fronthaul, Mobile Backhaul, Utility and Smart Grid services

Enclosure

Shell: rugged 1.5mm extruded
Aluminum boot: silicon rubber with wifi antenna storage slot Kickstand: Powder coated steel

Interface

ANDROID SMART TABLET

Memory

4GB INTERNAL - EXPANDABLE TO 16GB

Safety and Electromagnetic Com

SAFETY: IEC 61010-1:2010 3RD EDITION

EMC: FCC 15/ICES-003, EN61326-1:2013

Features
Features

Test Features:

  • Tests 10M 1G to 10G Ethernet – 8 Streams
  • E1, E3, T1, T3
  • Layer 1-4 BERT
  • CODIR, DATACOM
  • RFC-2544 & Y.1564
  • C37.94 Tele protection (SCADA)
  • Transport Testing
  • Wi-Fi testing
  • IPTV testing
  • VoIP testing
  • Remote control via VNC
  • Ethernet validation conformance to SLA: throughput, latency, frame loss, burst
  • Signaling (TIMS/DS0) Testing
  • 802.11 (b, g, n) wireless validation
  • Intelligent timing verification
  • DS3 testing
  • Datacom testing
  • DS1 Testing
  • 4 wire DDS testing
  • Dual port 10/100/1000 base T/X ethernet testing
  • Single port 10G test interface
  • Enable multi stream (16) & Y.1564 service test

Hardware Features:

  • Ruggedized touchscreen-based tablet controller
  • High capacity Li-ion battery
  • Aluminum case & protective boot
