7" (Inch) High Resolution TFT Display Industrial Borescope MEGA-7

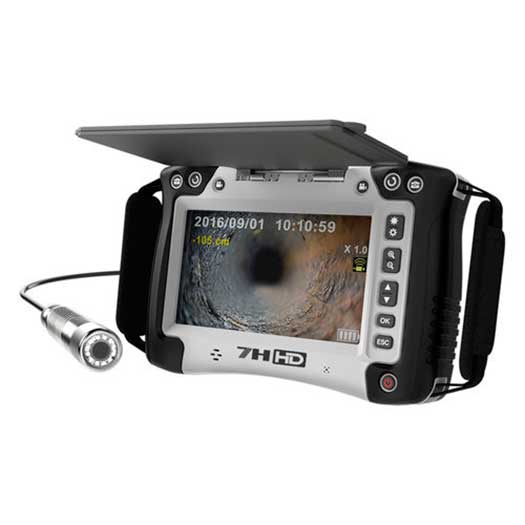

MEGA-7 Video Scope Controller Display main Unit is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye.

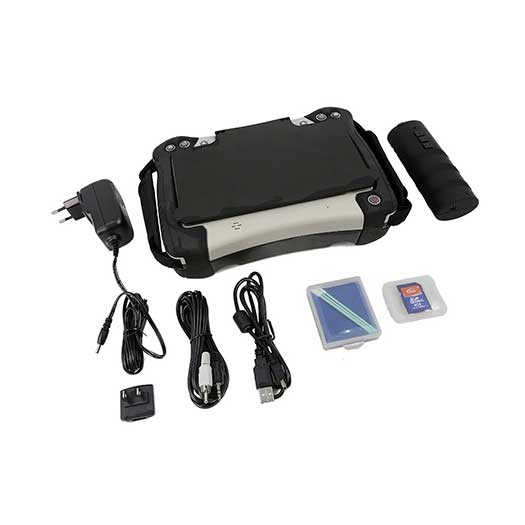

The 7-inch (180 mm) Inspection Video Camera system (endoscope) is supplied in a sturdy carrying case and consists of a display unit, insertion tube, power adapter and audio video cable. The display unit of the controller with a 7-inch-wide angle TFT LCD screen endoscope has the capacity of viewing, storing and reviewing photos and video images. Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later. The 7inch display unit is powered by rechargeable Li-polymer batteries and charger included.

MEGA -7 Borescope is ideal solution for visual inspection of aircraft engines, aeroderivative industrial gas turbines, steam turbines, diesel engines, automotive and truck engines, construction inspection and HVAC repair, etc.



Specifications
Product Specification
Power DC5V
Display LCD Panel Resolution 720 X 480 Pixels
Interface Mini USB 1.1/2.0 or AV out
Battery 3.7V Rechargeable Li-Polymer Battery
Power Adapter 100V – 240V AC in / 5V DC out
Video Out Format NTSC & PAL
Compression Format MPEG4 / ASF
Dimension 260 x 160 x 70 mm
Net Weight About 1.3KG
Video Recording Format MPEG ASF (640 x 480)
Working & Storage / Battery charging temperature range  -10∘C to 60∘C / 0∘C to 40∘C
Features
Features
  • SD card storage capacity up to 32GB.
  • Record voice-over audio in video recording model.
  • Snap-shot while recording/replaying.
  • Equipped with screen protection cover (* Waterproof and Dust-Proof of IP67 for optional camera probe / insertion tube)

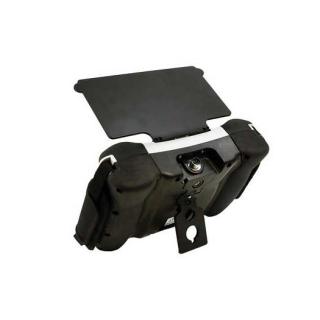

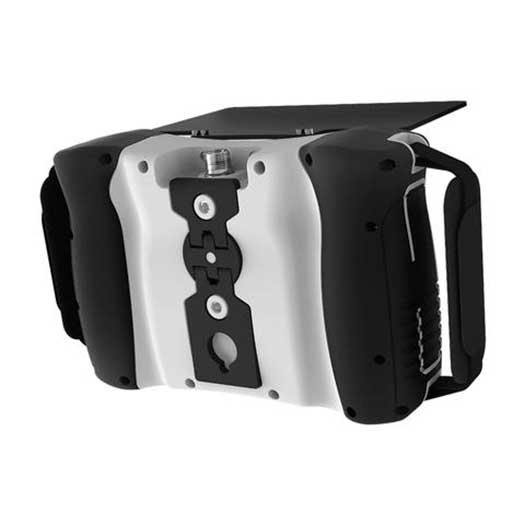

  • Rugged two handheld design and left / right hand control; standup support and tripod mount facility.
  • On-screen menus support.
  • Li-ion battery can last up to 8 hours.


FAQ
FAQ
Frequently Asked Questions (1 answered questions)
No, we cannot extend.
Probe Length : 3.3FT (1 M)

Person name: Anil



Product Info Downloads
Product Info Downloads

Product Information files contain the essential technical detail you need to make informed decisions on any particular product. Simply click on a title to download a PDF copy of that file. If you wish a hard copy of a brochure, technical advice on any product or a demonstration then please contact us. We're always happy to help!

Title
File Type
File Size
Last Uploaded
application/pdf
256.93 KB
March 31 2021 18:50:30
