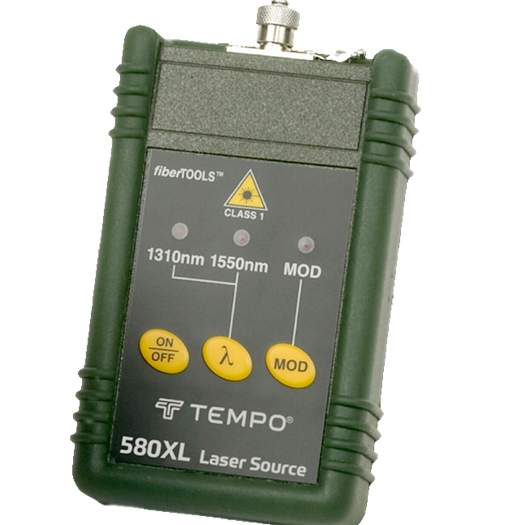

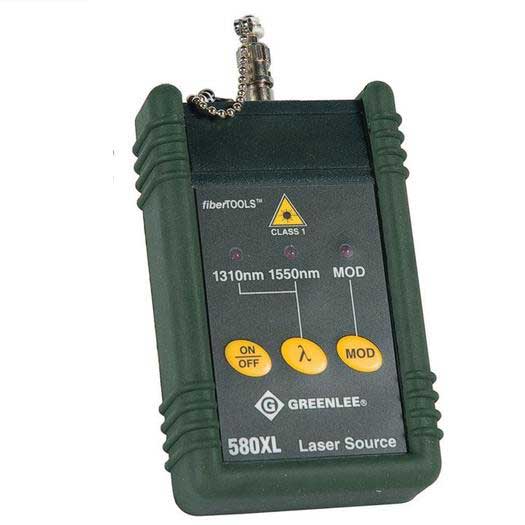

580XL 1310/1550nm Laser Source |Greenlee 580 XL 1310/1550nm Laser Source

580 XL-EMI

The 580 XL 1310/1550nm Laser Source is the perfect light source for performing insertion loss testing on single mode fiber optic cabling. Dual wavelength output (1310nm and 1550nm) enables fast and accurate insertion loss measurements. Once the user has set the reference with an optical power meter, the 580XL Laser source provides a stable output for hours of continuous measurements.

The instrument family consists of individual instruments (optical power meters, 850/1300nm LED sources, 1310/1550nm Laser sources, Visual Fault Locator) and complete Insertion Loss Test Sets. Designed to accurately measure optical power levels and link loss on multimode and single mode cabling networks. These full feature general purpose fiber optic instruments are easy to operate & economically priced to outfit all technicians performing fiber optic installation and maintenance.

Request Quote

Features

Easy to use - three buttons control all functions
Long battery life
Loss measurements in (dB); power measurements in (dBm)
0.01dB measurement resolution
Snap-on connector interface adapts to FC, SC, and ST connectors.
User-selectable auto shut-off
Rugged and splash-proof
Economically priced

Specification

Calibration Wavelengths	850nm, 1300nm, 1310nm and 1550nm
Power Range	+3 dBm to -60 dBm
Accuracy	±0.25dB
Linearity at:	+3dBm to -3dBm ±0.5dB
	-3dBm to -50dBm ±0.05dB
	50dBm to -60dBm ±0.5dB
Resolution	0.01dB
Power Requirements	Two AA size 1.5V batteries (approx. 100 hours continuous operation)
Connector Interface	FC, SC or ST

Faq

Do you have a question which we can answer for you? Click here if Yes

Downloads

Title	File Type	File Size	Downloads	Last Uploaded
Product Datasheet	application/pdf	137.27 KB		September 05 2020 12:21:15
User Manual	application/pdf	2.99 MB		May 27 2019 10:41:44
