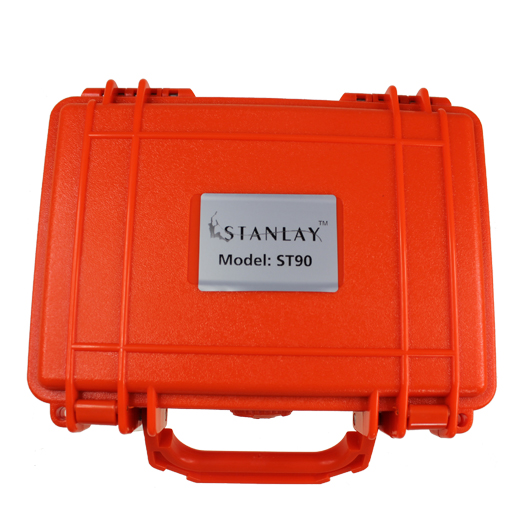

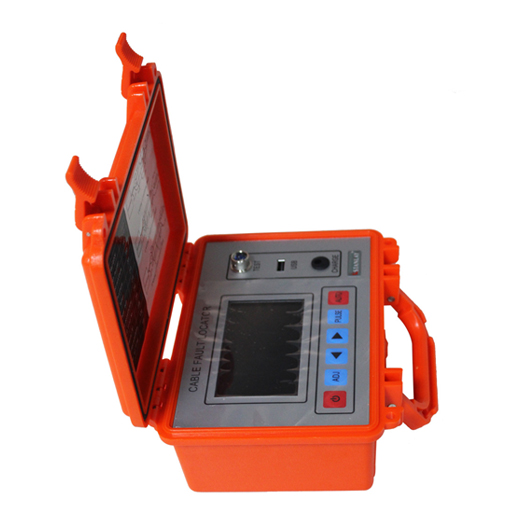

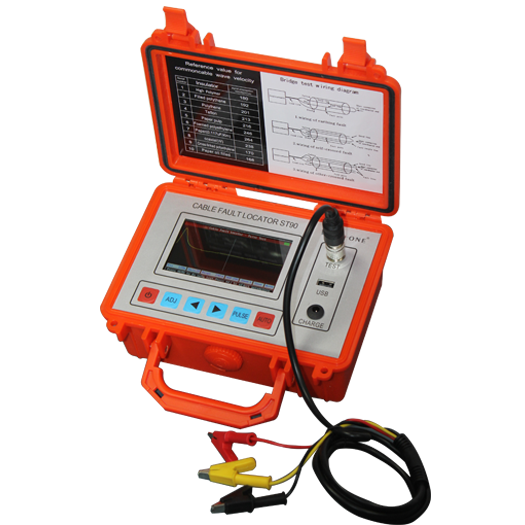

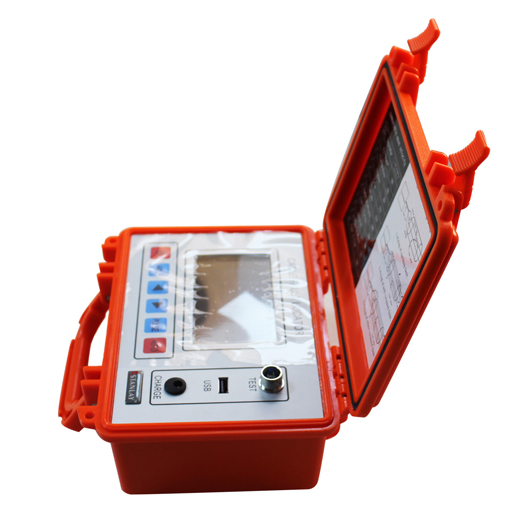

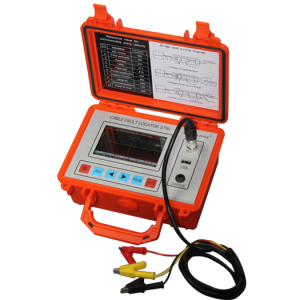

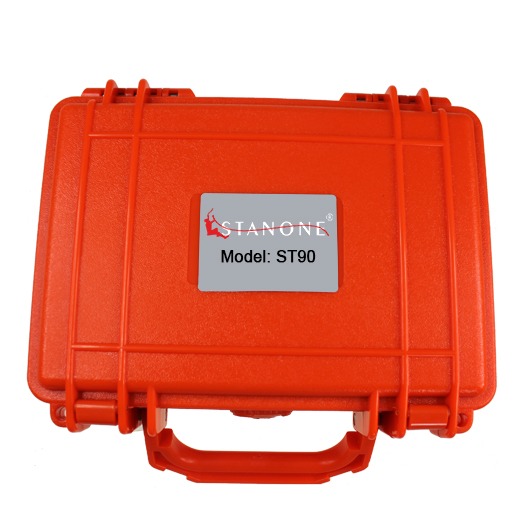

TDR ST-90

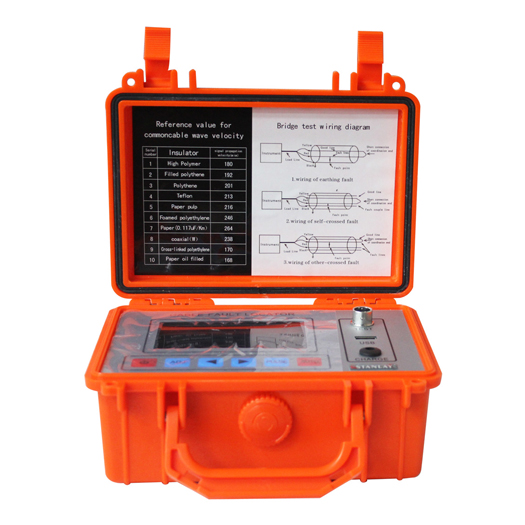

ST90 cable fault locator is designed for ease of use. It combines time domain reflectometer (TDR), pulse reflection testing for locating distance to fault upto 16 kms of faults on telecom / signalling cables, low voltage cables, ship wiring, mining cables . Fault types which can be located include open/short, cross faults, earthing and intelligent bridge testing (Bridge) for poor insulation /wet cable sections.

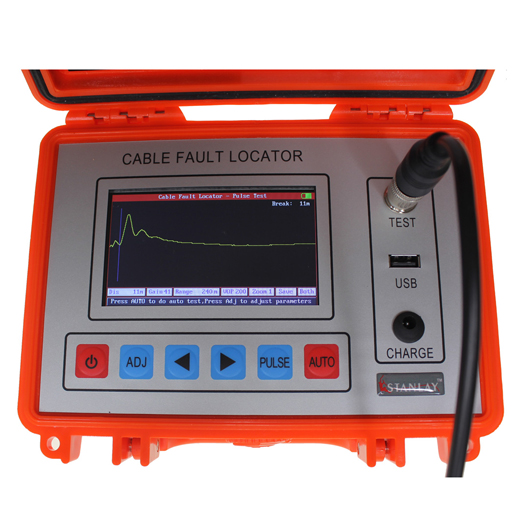

Automatic & Easy to use - Simply select the modes which you are going to use. Distance, VOP, Gain and Range are automatically selected and adjusted as you scan the cable. Just move the cursor to the fault to pinpoint its location.
Built in Data Storage - data transfer through built in USB port.

Specifications
Product Specification

Max Range

16Kms

Dead Zone

0m

Accuracy

+/1-m

Pulse Width

Pulse s with automatic adjustment

Vop

100 ~300 m/us

Distance to fault

Auto

Pulse Test Voltage

30 V

Bridge Test Mode

Yes

Max Poor Insulation Resistance

100 MΩ

Testing Accuracy

±1%×cable length

Bridge test mode

9.999kms, Max length of testing cable

Data Storage & Transfer

Yes, with USB

Battery

Rechargeable, provided with charger

Display

Color LCD display, 4.3"

display size

Dimensions

220 x 160 x 90mm

Weight

1 kg

Features
Features
  • Data Storage via USB
  • 16 Km Distance Range
  • Automatic Pulse Width Adjustment
  • Zero Dead Zone
  • Bridge for Low Insulation Faults
  • Locate Open, Shorts, Taps, Wet Sections, Cross & Earth
  • 4.3 inch colour LCD Display
