TDR ST25

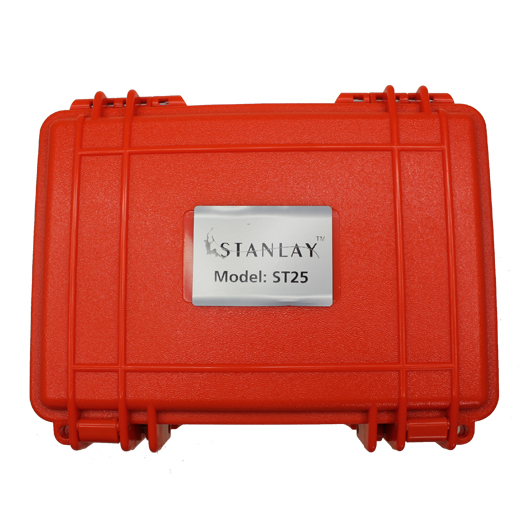

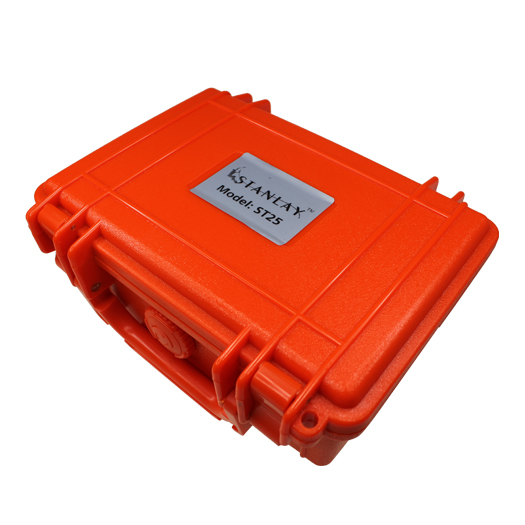

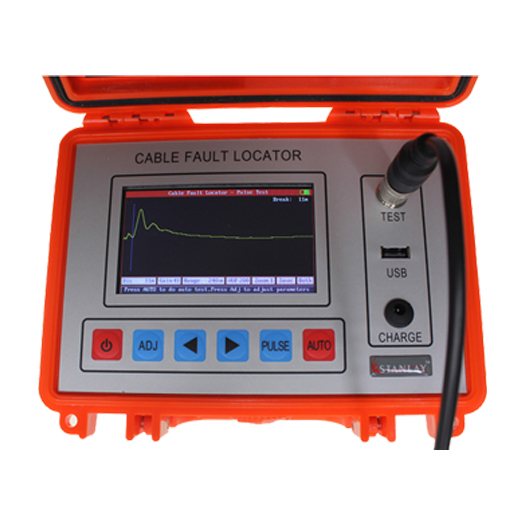

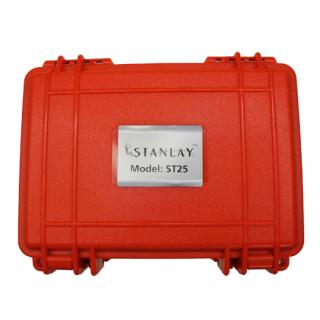

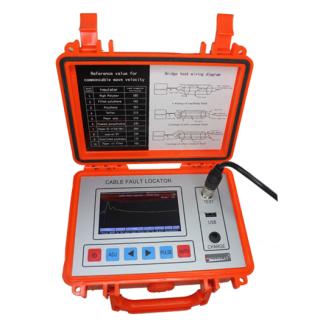

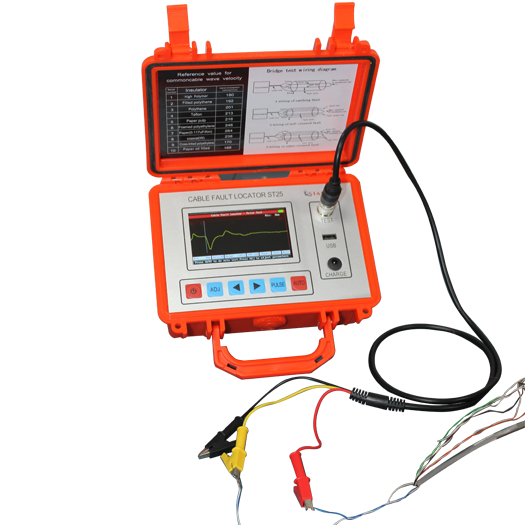

 ST25 cable fault locator is designed for ease of use. it combines time domain reflectometer (TDR), reflection testing for locating distance to fault on copper & metallic cables upto 8 kms of faults on telecom / signalling cables , low voltage cables, ship wiring & mining cables .

Fault types which can be located include open/short, cross faults, earthing and intelligent bridge testing (Bridge) for poor insulation/ wet cable sections.
Automatic & Easy to use - Simply select the modes which you are going to use. Distance, VOP, Gain and Range are automatically selected and adjusted as you scan the cable. Just move the cursor to the fault to pinpoint its location.

Specifications
Product Specification

Max Range

8Kms

Dead Zone

0m

Accuracy

+/1-m

Pulse Width

Pulse s with automatic adjustment

Vop

100 ~300 m/us

Distance to fault

Auto

Pulse Test Voltage

30 V

Bridge Test Mode

Yes

Max Poor Insulation Resistance

100 MΩ

Testing Accuracy

±1%×cable length

Bridge test mode Max range

9.999kms, Max length of testing cable

Battery

Rechargeable, provided with  AC/DC charger

Display

Color LCD display, 4.3" display size

Dimensions

220 x 160 x 90mm

Weight

1 kg

Features
Features

  • Automatic Pulse Width Adjustment
  • 8 Km Distance Range
  • Zero Dead Zone
  • Bridge for Low Insulation Faults
  • Locate Open, Shorts, Taps, Wet Sections, Cross & Earth
  • 4.3-inch colour LCD Display
