What is the SCM210 Clamp Meter used for?
The SCM210 is used for measuring AC/DC current, voltage, resistance, capacitance, and electrical troubleshooting in industrial, telecom, EV, and solar applications.
OTDR
Fiber Optic Splicing Machine
Optical Loss Test
Optical Power Meters
Optical Light Source
TDR Cable Fault Locator
Fiber Optic Visual Fault Locators
Network Analyzer
Lan Testers
Fiber Tools
Fiber Cleavers
Optical Fiber Identifier
Fiber Optical Attenuator
Tone & Probe Kit
Fiber Optical Talk Set
Rocoil Rail Current Transducer
Bit Error Rate Tester

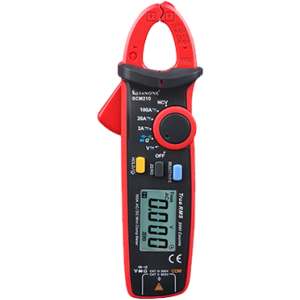

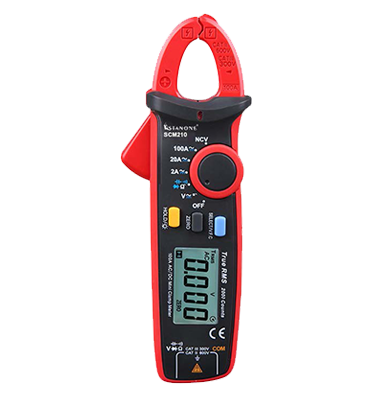

The STANONE SCM210 Mini True RMS Clamp Meter is a compact and precision-engineered electrical testing solution designed for professionals who need accurate measurements in confined and demanding work environments. Combining advanced functionality with an ergonomic lightweight design, it delivers dependable performance across industrial, commercial, residential, telecom, solar, and EV applications.
Powered by True RMS technology, the SCM210 ensures highly accurate readings even in complex and non-linear electrical systems. Its integrated V.F.C. (Variable Frequency Control) function minimizes high-frequency interference, providing stable and reliable measurements during troubleshooting and maintenance. With support for 100A AC/DC current measurement, 600V AC/DC voltage testing, and Non-Contact Voltage Detection (NCV), the meter enhances both efficiency and operational safety in the field.
Designed for fast and convenient operation, the SCM210 features auto-ranging, quick sampling, data hold, LCD backlight, zero mode, and auto power-off, allowing technicians to diagnose electrical issues quickly and accurately. Its compact clamp structure makes it especially suitable for hard-to-reach spaces, enabling smoother inspections and maintenance workflows.
By combining portability, precision, safety, and ease of use, the SCM210 helps professionals reduce troubleshooting time, improve measurement reliability, and work confidently across a wide range of electrical testing applications.
Applications:
| Feature / Measurement | ||
|---|---|---|
| Auto Range | √ | |
| True RMS, 17mm Jaw | √ | |
| Display Count | 2000 | |
| Measurements | Range | Accuracy |
| AC Current (A) | 100A | ± (2.5%+5) |
| DC Current (A) | 100A | ± (2%+3) |
| AC Voltage (V) | 600V | ± (1%+3) |
| DC Voltage (V) | 600V | ± (0.7%+3) |
| Resistance (Ω) | 20MΩ | ± (1%+2) |
| Capacitance (F) | 20mF | ± (4%+5) |
| Other Features | ||
| Diode Test | √ | |
| Continuity Buzzer | √ | |
| V.F.C. | √ | |
| NCV | √ | |
| Data Hold | √ | |
| Zero Mode | √ | |
| LCD Backlight | √ | |
| Auto Power Off | √ | |
| Low Battery Indication | √ | |
| Input Protection | √ | |
| Category Safety Ratings | CAT III 300V, CAT II 600V | |
| General Characteristics | ||
| Power | 1.5V Battery (R03) × 2 | |
| Display | 39.3mm × 26.5mm | |
| Product Net Weight | 170g | |
| Product Size | 175mm × 60mm × 33.5mm | |
| Standard Accessories | Battery, Test Leads | |
The SCM210 is used for measuring AC/DC current, voltage, resistance, capacitance, and electrical troubleshooting in industrial, telecom, EV, and solar applications.
Yes, the SCM210 features True RMS technology for accurate measurements in non-linear electrical systems.
The SCM210 can measure up to 100A AC/DC current.
V.F.C. (Variable Frequency Control) helps reject high-frequency interference for stable and accurate readings.
Yes, it includes NCV detection with LED indication for safer voltage testing.
Yes, it is ideal for solar power systems, EV diagnostics, and electrical maintenance.
The meter complies with IEC/EN61010-1 and EN61010-2-30 safety standards.
