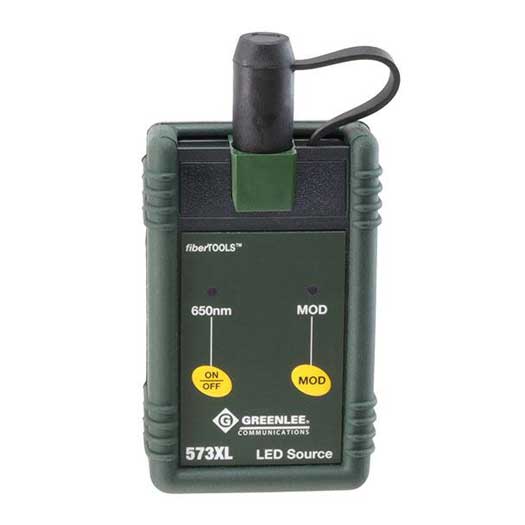

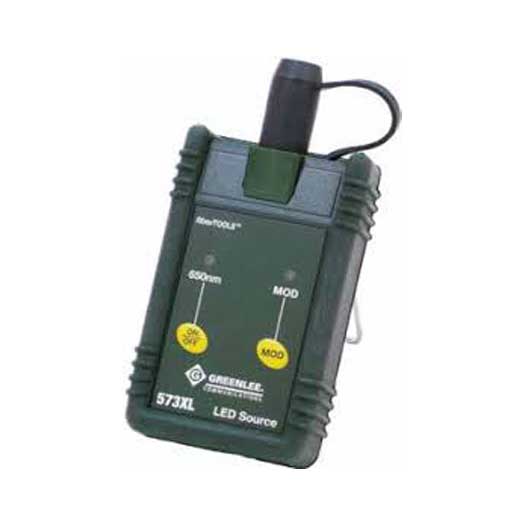

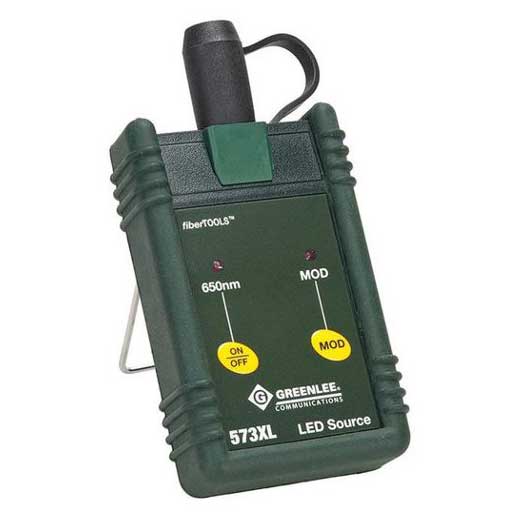

573XL 650nm LED Source

Greenlee 573XL 650nm LED Source offer greater flexibility and higher accuracy for installing and maintaining multimode datacom networks and LANs as well as for maintaining and repairing

Product Specification
Specifications :
Center Wavelength 650nm
Range (Typical) 630nm to 670nm
Max. Spectral Width (FWHM) <20nm
Stability (1 hour) ±0.05dB
Power Output in to MM 200/300 SI Fiber -15dBm ±0.5dB
Modular Frequencies 270 kHz, 1 kHz and 2 kHz ±0.5dB
Frequencies Power Requirements Two AA size 1.5V batteries (approx. 24 hours continuous operation)
Connector Interface Fixed ST or SOC adaptor
  • 650nm wavelength
  • Stable calibrated output
  • Easy to use
  • Continuous wave and modulated output
  • ST connector interface
  • Long battery life - approx. 24 hours
  • User selectable auto shut-off
  • Rugged and splash-proof
