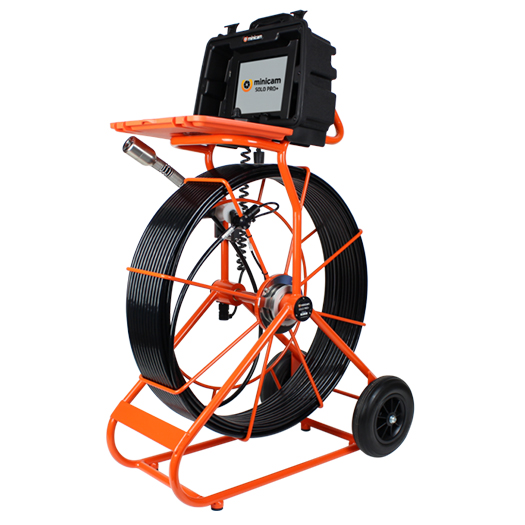

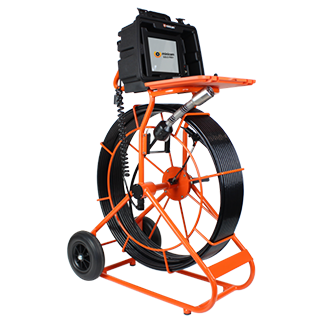

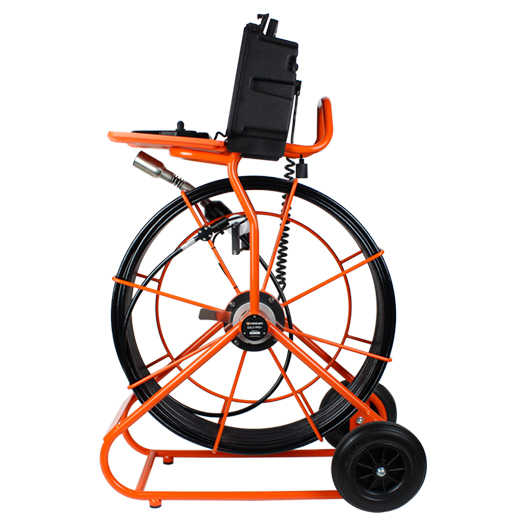

SOLOPRO+ PTZ Pipe Inspection Camera

SOLOPRO+ PTZ Pipe Inspection Camera

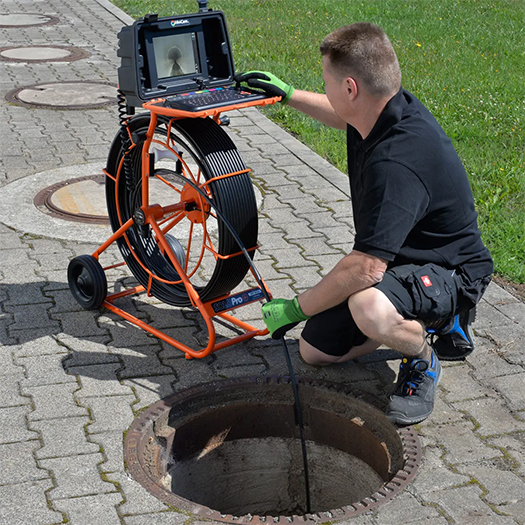

SOLOPRO+ PTZ Pipe Inspection Camera is an advanced video pipe inspection camera for inspection of buried Water pipelines, Sewer pipes, Drain pipes and Manhole Inspection of Water & Sewerage boards, Municipality, & Large campuses, with the primary purpose of identifying locations of source of water pollution, condition assessment of sewer & water pipes and disaster management.

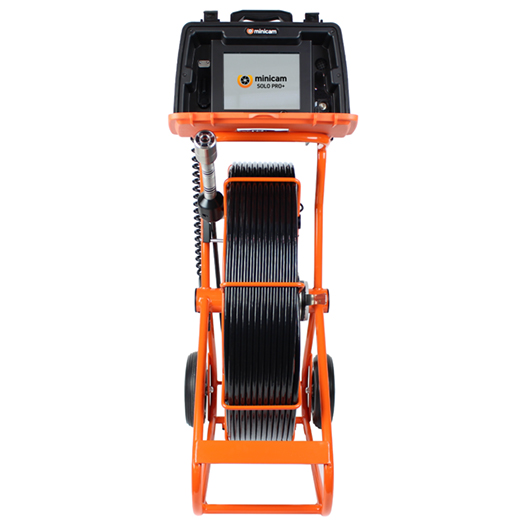

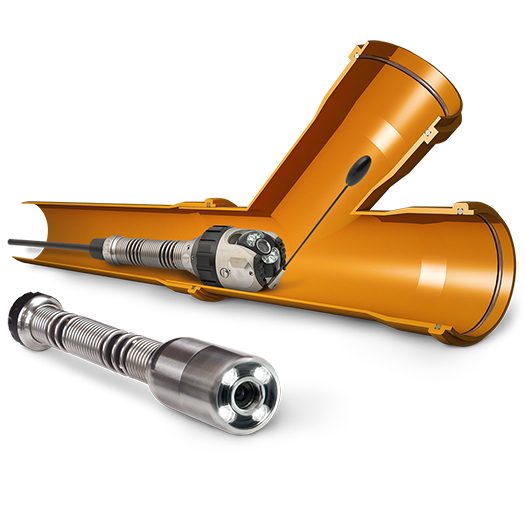

SOLOPRO+ PTZ Pipe Inspection Camera is available in 4 rod sizes, 40m, 60m, 100m & 120m with 2 camera set options: CAM025 AXIAL, CAM026 PAN/ROTATE or a Duo option which includes supply of both cameras.

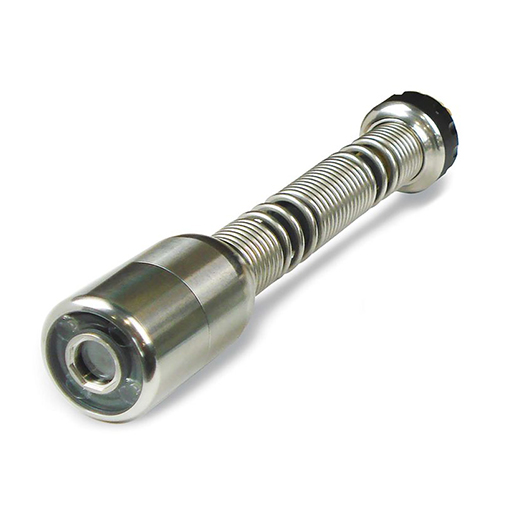

The CAM025 is a self-levelling axial camera which provides images which are always upright. The AXIAL self-levelling feature allow sensors to detect when the camera is tilted or rotated and then adjust the camera lens to compensate for the movement.

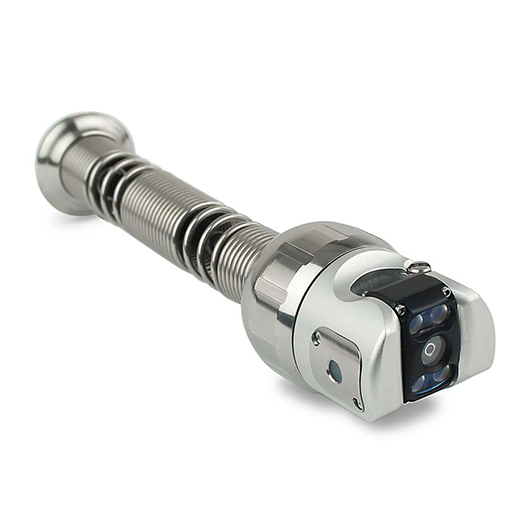

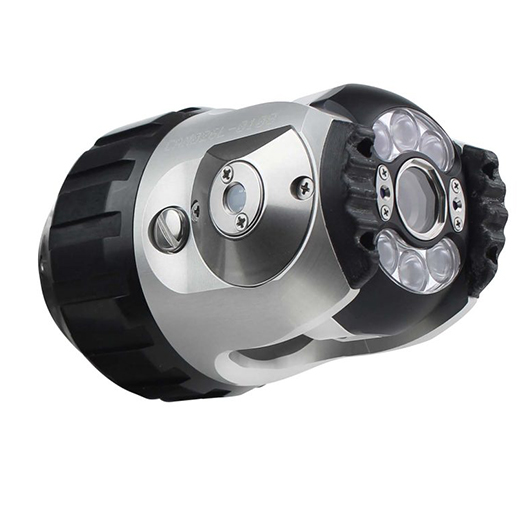

The CAM026 PAN/ROTATE is the advanced camera for analysis of the pipelines & braches inside of pipeline using its 360  rotation and +/- 135  Pan & Tilt. The CAM026 will automatically adjust the focus of the lens based on changes in the distance between the camera and the subject being filmed. Also available are the “Optional” CAM050 & CAM026L Pan, Rotate & Laser camera with twin lasers to measure pipe diameter, defect & object measurement during the underground pipe survey.

Each system contains a built-in triple frequency sonde operating of 512Hz ,640Hz & 33Khz for continuously monitoring location of camera inserted in buried pipe (When used with a pipe cable locator receiver).

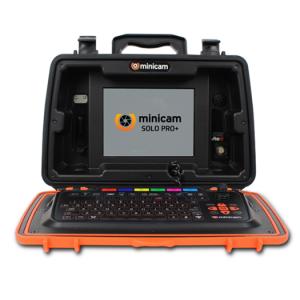

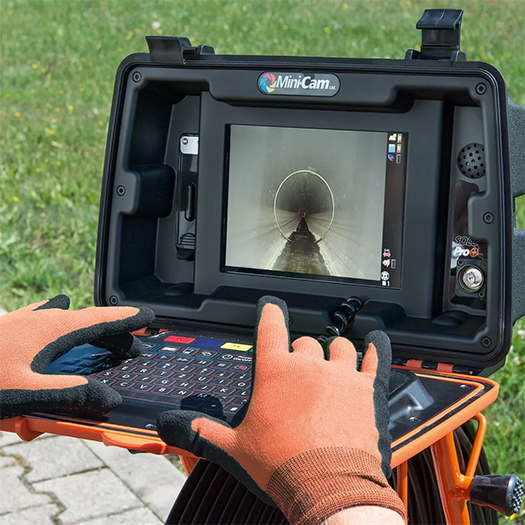

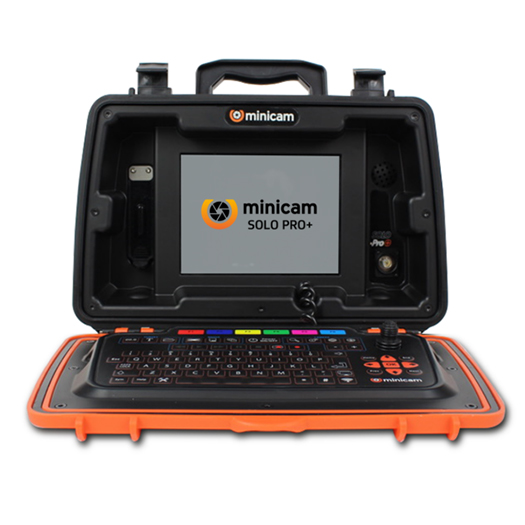

The SOLO PRO+ Control Unit has an integral joystick for camera control and an ergonomic soft-touch keypad. User-friendly multi-function hot keys control an intuitive on-screen display, to enable quick and accurate navigation of the numerous features which all come as standard on the brain of the SOLO PRO+ system. The CCU210 Control unit is Embedded with PIPEPRO+, Wincan VX & Wincan Web software’s.

WinCan VX is an AI Based Smart Sewer Inspection software program designed for managing sewer and pipeline inspections, offers a wide range of features to make the process of inspecting, analyzing and managing pipeline data easier and more efficient.
