Solution:

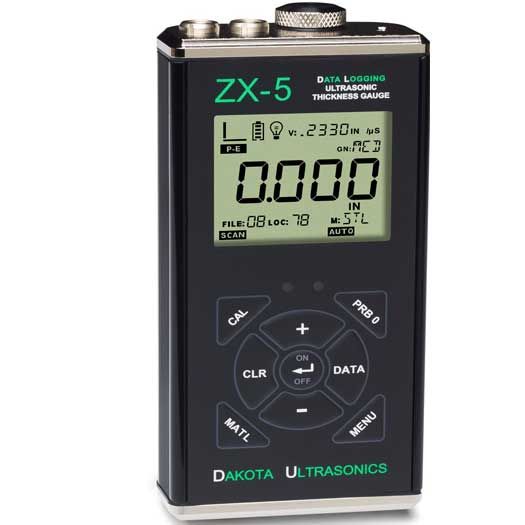

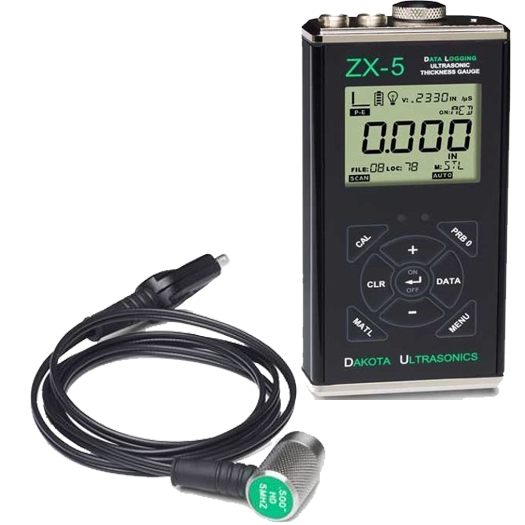

The ZX5 ultrasonic thickness gauge has an option to be used as velocity gauge apart from standard ultrasonic thickness gauge.

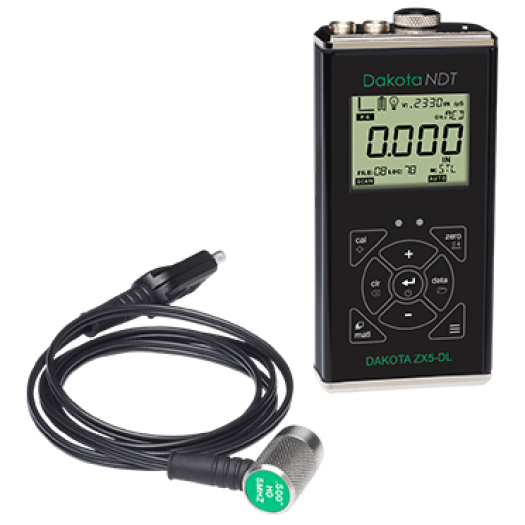

The Dakota ZX5-DL ultrasonic material thickness gauge are basic dual element thickness gauges with the ability to locate blind surface pitting and internal defects / flaws in materials. They are capable of measuring the thickness of various materials with accuracy as high as ±0.001" (±0.01 mm). They offer a performance solution built to withstand the roughest industry conditions.
The ZX5 ultrasonic thickness gauge has a option to be used as velocity gauge apart from standard ultrasonic thickness gauge.
The ZX5 series is ideal for measuring material thickness or corrosion & pitting in pipes, tubes, boilers, tanks, a variety of other applications.
The ZX5 ultrasonic thickness gauge provides the capacity of the ZX3 including multiple thickness of various material types. In addition, the ZX5 thickness gauge features:-

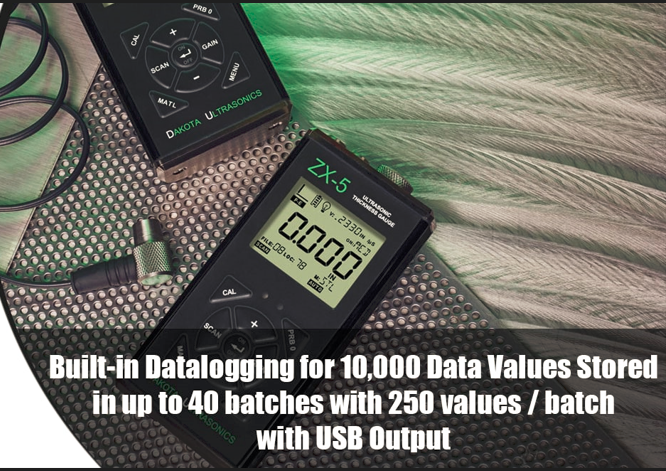

•Data logging with PC data download
•Differential mode
•Alarm mode for high – low settings
•VX velocity: allowing velocity
measurement in nodularity testing
