CBC 50M Electrical Glove Boot Tester

Electrical Glove Boot Tester

The CBC-50M Electrical Gloves & Boot Testers are designed for acceptance and operational high-voltage testing of personal electrical protective equipment used in electrical installations and insulated hand tools.

The Electrical Glove Tester can be used without a test bath for general purpose high-voltage AC testing of various solid dielectrics.

Withstand tests are carried out with an AC voltage up to 50 KVrms at industrial frequency (f = 50 Hz) with test bath operating upto 15 KV.

CBC-50M Electrical protective equipment testers include a variety of holders and adaptors allowing to test a wide range of the objects:

  • Ideal testing equipment for rubber insulating gloves and dielectric safety boots;
  • hand tools with electrical insulation;
  • voltage detectors and indicators;
  • discharge rods;
  • insulating mats

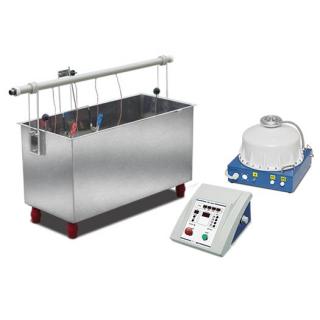

The High voltage glove testing equipment is composed of a control unit, test bath and a high-voltage unit. The test procedure is controlled from the control unit, which may be positioned at a safe distance away from high-voltage source and the test bath, ensuring operator safety..

CBC-50M high voltage glove tester offers easy & convenient monitoring while operation. Comes with four pre set output voltage levels, it has built in timer to set test duration. The tester displays leakage current throughout the operation & having outo-shut feature  to terminate the test once breakdown voltage is detected.

Safety Measures:

CBC -50M systems include the following operational safety measures:

  • Overcurrent protection.
  • Automatic short-circuiter on the high-voltage unit.
  • Protective earthing.
  • Fuses.
  • Sulphur hexafluoride gas pressure monitoring in the high-voltage unit (units).Emergency stop button.



Specifications
Product Specification
Test modes and parameters "100 V" Output voltage adjustment and indication range 10 … 100 VRMS
Number of simultaneously testable objects 1
"3 kV" Output voltage adjustment and indication range 0.3 … 3 kVRMS
Leakage current threshold 7.6 mA
Number of simultaneously testable objects up to 4
"15 kV" Output voltage adjustment and indication range 1.5 … 15 kVRMS
Leakage current threshold 7.6 mA
Number of simultaneously testable objects up to 4
"50 kV" Output voltage adjustment and indication range 5 … 50 kVRMS
Leakage current threshold 10 mA
Number of simultaneously testable objects 1
"100 kV" Output voltage adjustment and indication range -
Leakage current threshold -
Number of simultaneously testable objects -
Relative voltage and leakage current indication error   ± 3 %
Safety Grounding Protective earthing
Operating grounding
Automatic grounding bar
Protection Overcurrent
Thermal overload warning
Low internal gas pressure warning
High voltage presence signalling Light signalling
High voltage switch off EMERGENCY STOP button
ower keylock switch
Power supply and consumption Mains supply voltage 230 VAC, ± 10 %
Mains supply frequency 50 Hz (60 Hz option)
Power consumption up to 0.9 kV•A

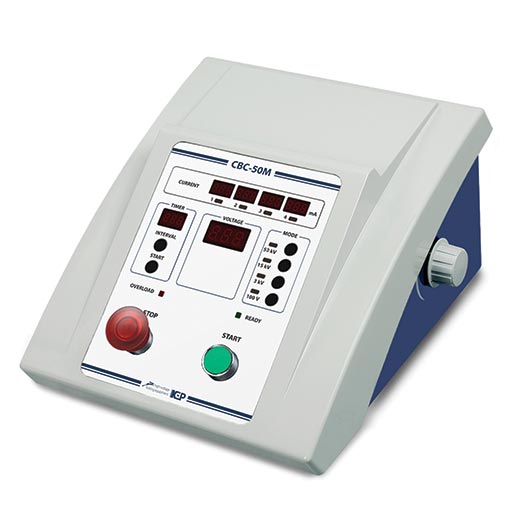

Physical Control unit dimensions, H × W × D 194 × 313 × 328 mm
Control unit weight 13.3 kg

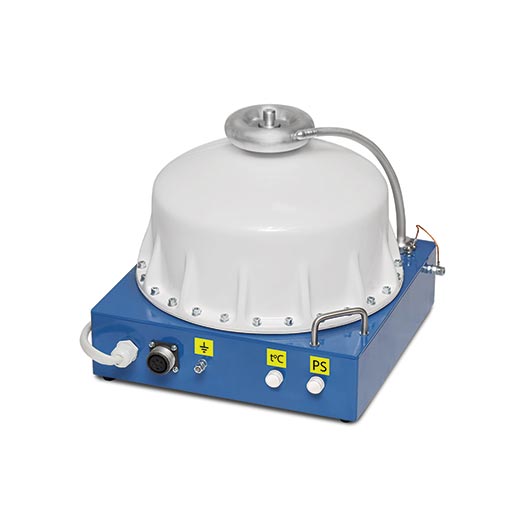

High-voltage unit dimensions, H × W × D 334 × 364 × 381 mm
High-voltage unit weight 26.5 kg

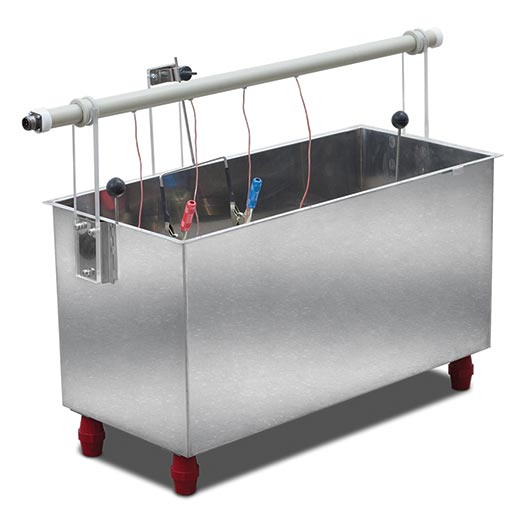

Bath dimensions, H × W × D 660 × 845 × 400 mm
Bath weight (with accessories, empty) 19 kg
Features
Features
  • Overcurrent protection.
  • Automatic short-circuiter on the high-voltage unit.
  • Protective earthing.
  • Fuses.
  • Sulfur hexafluoride gas pressure monitoring in the high-voltage unit (units).
  • Emergency stop button.


FAQ
FAQ
Frequently Asked Questions (5 answered questions)
Ideal instrument for testing of Dielectic Glove & boots , Insulated hand tools, Insulated mats, Sleeves etc

Person name: Asian

7.6 mA

Person name: Asian

Multi-module design allows an operator to remain at a safe distance away from high-voltage circuit and the test bath while operating

Person name: Asian

50 kV RMS

Person name: Asian

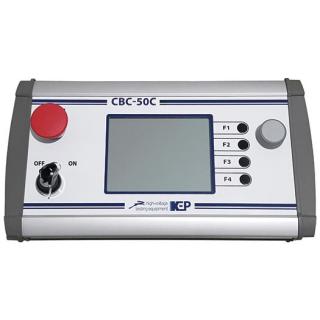

No, For automatic test operations, CBC-50 C & CBC-100C are recommended.

Person name: Asian
