Megger Compact City Cable Fault Test Van

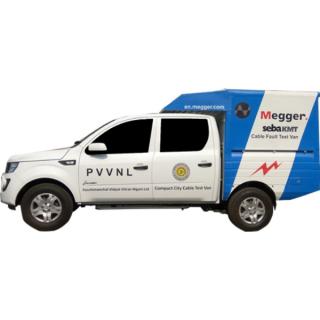

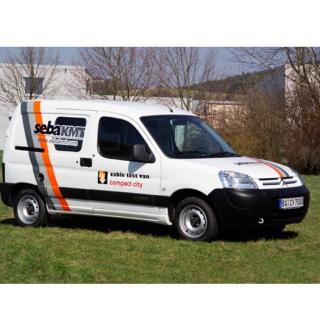

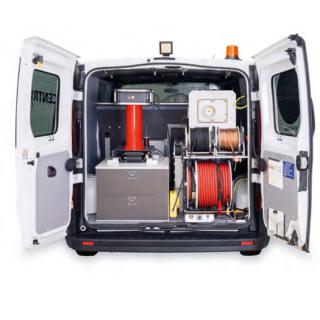

The Megger compact city cable fault test van  is a complete test- and fault location system suitable also for the installation into very small vehicles to allow entry or parking in typical city streets.

It consist of the SPG 40, a mobile, multi-functual system for testing, prelocation, pinpointing and burning of cable faults in low and medium voltage networks. The system is controlled directly via the connected Teleflex T30-E reflectometer or the control panel, either integrated or as 19" version.
All function of the system are easily managed by the rotary encoder in the control panel. The system supports easy and clear handling, even for inexperienced users. All functions of the system are easily managed by the rotary encoder in the control panel. The system supports easy and clear handling, even for inexperienced users.

Key benefits:

  • High surge energy
  • Portable or vehicle installation
  • All essential HV prelocation methods integrated
  • Easiest operation with maximum safety
  • The SPG 40 is a mobile, multi-functional system for testing, prelocation, pinpointing and converting cable faults in low and medium voltage networks.
The system is directly controlled via CAN Bus by the connected Teleflex SX or via the integrated PLC operating panel. All functions of the system can be easily performed using the rotary encoder. The system supports easy and clear handling, even for inexperienced users. At the same time, the highest degree of safety is guaranteed.

Key benefits of SPG40:
  • DC Testing up to 40 kV ARM, ICE and Decay Method integrated
  • Operation by VGA Display and single button rotary encoder
  • High surge energy fort he acoustic pinpointing 1000 or 2000 J
  • Surge voltage levels for MV cablel 0 ... 12,5/25 kV or 0 ... 16/32 kV
  • Surge voltage levels for lower voltage 0 ... 3/6 kV or 0 ... 4/8 kV
  • Integrated safety system
