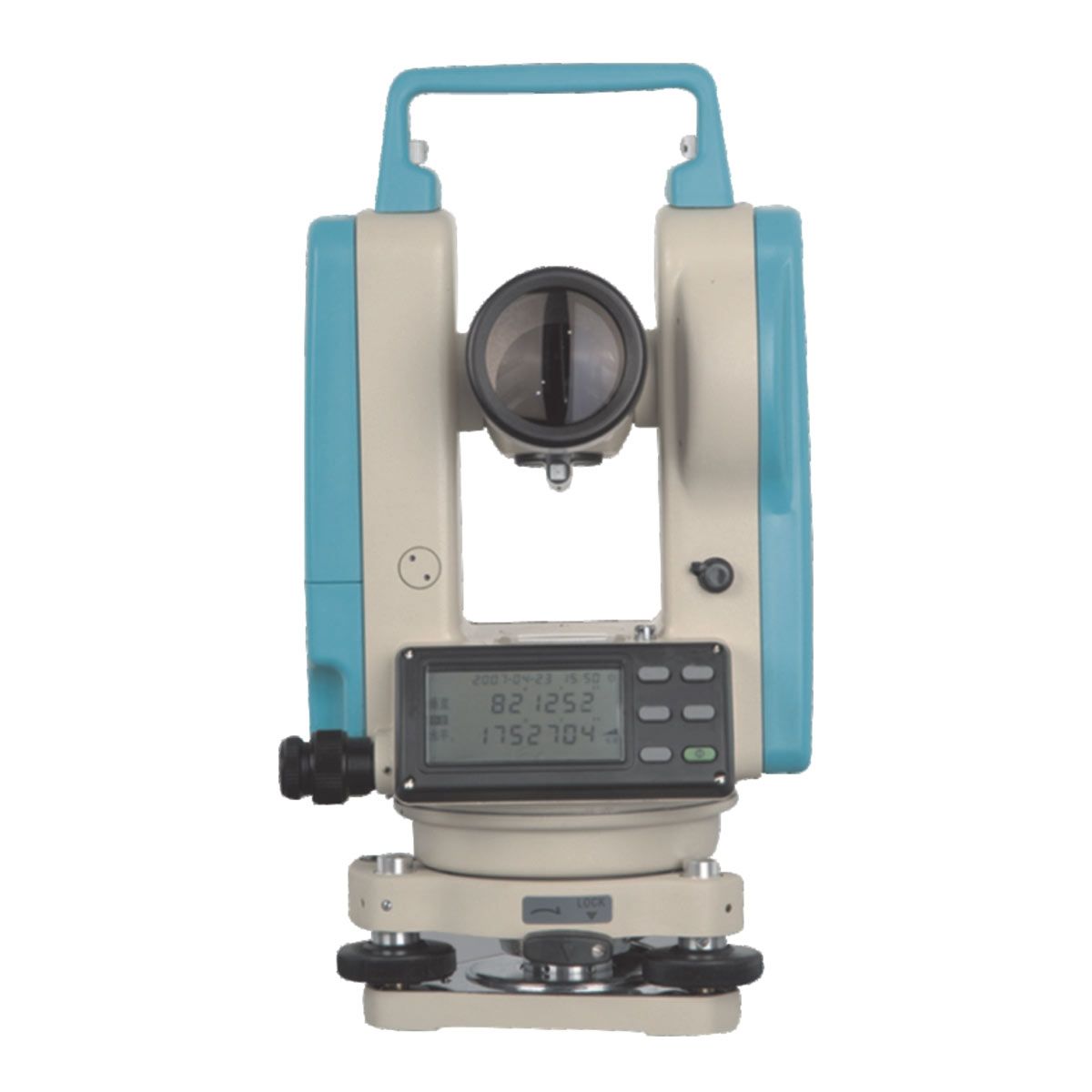

Digital Theodolite
Digital Theodolite

Digital Theodolite

Precision Digital Theodolite For Professional Angle Survey Measurement

Digital theodolite is a modern engineering instrument for measuring both horizontal & vertical angles, it is a key tool in surveying and engineering work. The theodolite consists of a telescope movable within two perpendicular axes- the horizontal axis, and the vertical axis. When the telescope is pointed at a desired object, the angle of each of these axes can be measured with great precision.

Request Quote
Digital Theodolite
Features Specifications FAQ Downloads



Features
Control Panel - Backlit 2 lines LCD Display & Alphanumeric keyboard with single touch button functions.
Rechargeable Batteries - Digital Theodolite is provided with1X Rechargeable Ni-MH Batteries & an extra AA battery pack to ensure that the unit can be used continuously at work site without having to stop & recharge.
Water & Dust Proof - All significant part are protected by tight rubber rings. With Waterproof Grade (IP54) you are free to operate your job no matter in rain or desert.
Specifications
Telescope:   ST-THEO2 Digital Theodolite
Length 157 mm
Imaging Erect
Objective Aperture 45 mm
Magnification 30X
Field of View 1°30'
Resolving Power 3"
Minimum Focus Distance 1.4 m
Stadia Ratio 100
Stadia Constant 0
Angle Measurement
Method Absolute Encoding
Diameter of the Circle (Vhz) 79mm
Minimum Reading 1"/5"/10"/20" (Selectable)
Accuracy 2"
Detection Method Horizontal : Dual, Vertical : Dual
Display
Screen Type 2 sides, segment LCD in two lines
Auto Vertical Compensator
System Liquid-electric detection/plate level
Range +/- 3'
Accuracy 1"
Optical Plummet
Imaging Erect
Magnification 3X
Field of View 50
Focusing Range 0.5m ~ 8
Physical Characteristics
Operation Environment -20° ~ + 45°
Power Supply 6V Rechargeable Ni-MH Battery & AA Battery
Size (in mm) 165 x 318 x 157 mm
Weight (in g) 4300
Item Code ST-THEO2
